Heavy Duty Ductile Iron Covers Deliver Long-Term Strength for Infrastructure Applications

Infrastructure professionals across the United States face a persistent challenge: selecting access covers that truly withstand decades of punishing service conditions. A heavy duty ductile iron cover addresses this concern directly by offering a metallurgically superior solution engineered from Spheroidal Graphite Iron (Grade 500-7). Unlike traditional grey cast iron alternatives that fracture under sudden impact, this advanced material features nodular graphite formations that deliver exceptional tensile strength and flexibility, enabling these covers to endure load capacities ranging from 30KN to 450KN while maintaining structural integrity across municipal roadways, industrial zones, and high-traffic commercial sites.

Specifications

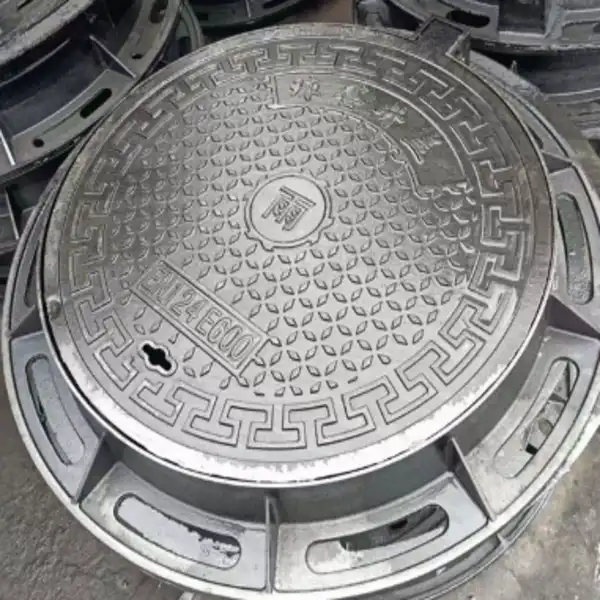

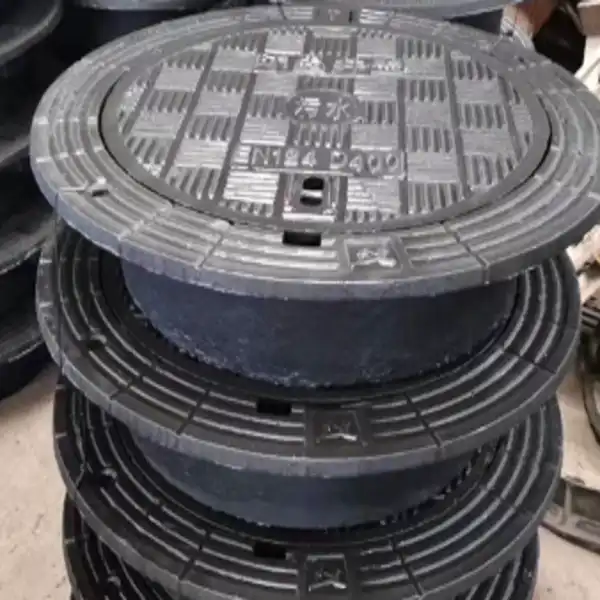

Round Manhole Covers
Size(mm)	Type	Load Capacity
1000x1150	Standard	B125
900x1050	Standard	B125
800x900	Standard	D400
700x900	Standard	D400
700x800	Standard	D400
600x700	Standard	D400
500x600	Standard	C250
400x500	Standard	B125
750x900	5-Proof	D400
700x850	5-Proof	D400
700x890	5-Proof	D400

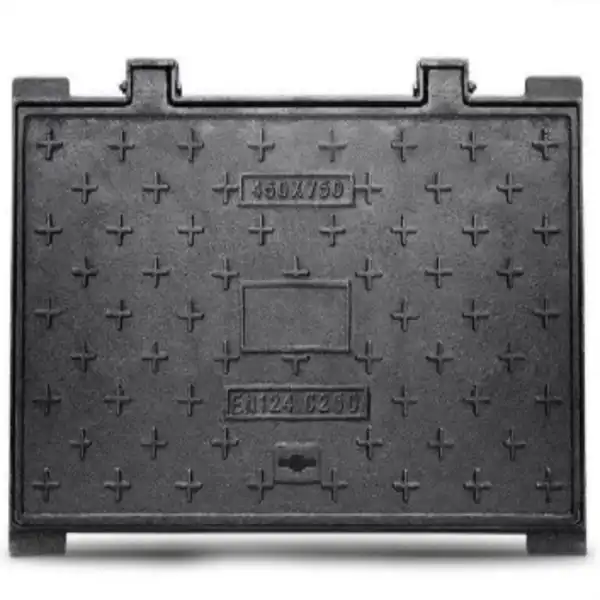

Square Manhole Covers
Size(Width x Length,mm)	Load Capacity
1200x1200	B125
800x1200	B125
1000x1000	C250
800x1000	B125
500x1000	B125
800x800	C250
700x700	D400
600x600	C250
500x500	C250
400x400	B125
400x600	B125
300x500	B125

Understanding Heavy Duty Ductile Iron Covers: Material, Manufacturing, and Specifications

The engineering behind ductile iron manhole covers is a big step forward in the study of building materials. When melted iron that has been treated with magnesium is poured, the graphite crystallizes into round lumps instead of flakes. This change fundamentally changes how machines behave under stress.

What Makes Ductile Iron Different From Cast Iron?

For example, traditional gray iron is very brittle, and when it is loaded dynamically, it breaks in terrible ways. Ductile iron's nodular structure absorbs impact energy by deforming elastically instead of cracking. Our material has a minimum tensile strength of 500 MPa and a yield strength of more than 320 MPa. It also has a stretch of over 7%. This combo keeps the sudden cracks that happen with older systems from happening.

Manufacturing Precision and Quality Verification

Long-term dependability depends on quality control during production. Each batch is metallographically checked to make sure that the nodularity level is higher than 80%. This makes sure that the makeup is real ductile iron and not a cheaper replacement. Laser checks the accuracy of the dimensions to make sure that the frame-and-cover interfaces meet the zero-tolerance seating requirements. This accuracy gets rid of the rocking motion that makes noise from traffic and speeds up the wear patterns. Load-bearing tests follow the rules in EN 124. They use proof loads for long periods of time while measuring permanent set deformation, which needs to stay within 1/300th of the clear opening span.

Technical Specifications That Matter for Procurement

To choose the right covers, you need to know how labeling systems work. The EN 124 standard lists load classes from A15 (1.5 tons) to F900 (90 tons). For most municipal road uses, a D400 rating (40 tons) is needed. Our product line has load capacities that are good for pedestrian areas as well as highway use, with tested performance ranging from 30KN to 450KN. Round shapes from 400mm to 1150mm and square lengths from 300x500mm to 1200x1200mm are all available, giving you options for a wide range of project needs.

The composition of the material meets worldwide standards like AASHTO M306 and AS 3996, which means it can be used in building projects around the world. There are different ways to treat the surface, from standard bituminous coatings that keep water out to fusion-bonded epoxy systems that make things more resistant to chemicals in harsh environments.

Key Advantages of Heavy Duty Ductile Iron Covers for Infrastructure

When purchasing managers look at different access cover options, they always put three main concerns at the top of their lists: how long the cover will last in real-world service conditions, how safe it is so that liability issues can be managed, and the total cost of ownership over the expected service life. Ductile iron technology works well in all of these areas.

Exceptional Durability Against Real-World Stresses

Infrastructure entry points are constantly being harmed by machines. When heavy trucks slow down or speed up, they create concentrated point loads. Thermal stress is caused by changing temperatures. Deicing operations use chemicals that are corrosive and attack protective coatings. Our heavy-duty ductile iron covers can handle all of these pressures because the material has qualities that keep it from wearing out. Because the structure is elastic, repeated stress cycles don't weaken it over time like they do with materials that are close to their yield limits. In normal road conditions, field sites show service lives of more than 30 years, which is a lot longer than other materials.

The weight edge is especially important to note, and for heavy duty ductile iron cover, equivalent load ratings can be reached with 30–40% less material than with gray iron, and this cuts down on transportation costs and makes installation safer for workers, and you can get the best balance of strength and weight without sacrificing performance, and the irregular structure stays together even when it's hit hard, which would break most covers. Equivalent load ratings can be reached with 30–40% less material than with gray iron. This cuts down on transportation costs and makes installation safer for workers. You can get the best balance of strength and weight without sacrificing performance. The irregular structure stays together even when it's hit hard, which would break most covers.

Enhanced Safety Through Integrated Design Features

These days, infrastructure needs to be able to do more than just hold weight. Our 5-proof design system takes into account important operational and safety issues that affect the success of the project. Precision-machined seating surfaces that use anti-settlement engineering stop the slow settling that makes lips and edges dangerous. Integrated locking systems with fasteners that can't be removed without damaging them stop theft and keep people from getting into utility infrastructure without permission. When you press polyethylene seals between the frame and the cover, they stop the metal buzzing that means the cover isn't sitting right and speeds up wear.

The anti-displacement function uses interlocking frame geometry to stop movement to the side when snowplowing or when big trucks make sharp turns. If the primary support fails during maintenance access, anti-fall redundancy makes sure that the cover doesn't fall into the opening. This is done by secondary retention. All of these features work together to lower the risk of liability and increase the working lifespan.

Maintenance Efficiency and Installation Simplicity

Infrastructure managers like systems that require as little action as possible throughout the lifecycle. Bituminous paint or epoxy coating systems protect against corrosion, which greatly lowers the number of times that maintenance needs to be done. When you place something correctly, like making sure the frame sits level on a compacted ground and that the concrete is properly anchored, it will last for decades without any problems. Because they are lighter than cast iron equivalents, two-person installation teams can safely handle covers that would normally need mechanical lifting equipment. This speeds up the project timeline and makes the job site safer.

When you look at the investment over the expected service life, the difference in starting cost between ductile iron and cheaper options is almost nothing. Avoiding premature replacement, emergency fixes from catastrophic failures, and liability claims from accidents adds a lot of value to buying budgets that look at the total cost instead of just the purchase price.

Comparing Heavy Duty Ductile Iron Covers to Other Manhole Cover Materials

The choice of materials has a big effect on both the short-term costs of a project and its long-term performance. Knowing the relative strengths of two things helps match the needs of an application with the specs.

Ductile Iron Versus Composite Alternatives

Composite materials, which are usually reinforced polymers, don't rust and are easy to work with because they are light. But because they can only hold so much weight, they can only be used in light-duty places like walking areas or neighborhood streets. Composite covers haven't been tested in high-stress settings, and it's not clear how UV light will affect them over many years of use. The price per unit is often higher than ductile iron for the same load ratings, and recycling infrastructure for getting rid of old Products" target="_blank" style="color:blue" >products is still not well developed.

Performance Against Steel and Concrete Options

While steel plates are very strong, they are prone to rust and need to be replaced or maintained often. The changing costs of materials also make the budget hard to predict. Concrete covers are cheap to buy at first, but they are very heavy and hard to move around. They also need to be reinforced to get the right load ratings and break easily when hit. Both of these options don't have the right set of properties that make ductile iron the best choice for tough jobs.

Traditional Cast Iron Limitations

Cast iron was used for a long time to build most of the infrastructure, but its brittleness makes it unsafe for modern traffic loads. The material quickly breaks apart without notice, putting people in danger and requiring emergency replacement. Because cast iron is dense, it needs heavier parts to have the same load values. This makes the materials more expensive and makes them harder to handle. Because ductile iron has been shown to be better, many industries have moved away from gray iron standards.

This comparison shows why ductile iron is the best choice for infrastructure professionals who need to balance performance needs, budget constraints, and lifecycle value concerns, and for heavy duty ductile iron cover, this material delivers the optimal combination of strength, durability, and cost-effectiveness for demanding municipal and industrial applications. This comparison shows why ductile iron is the best choice for infrastructure professionals who need to balance performance needs, budget constraints, and lifecycle value concerns.

How to Choose the Right Heavy Duty Ductile Iron Cover for Your Infrastructure Needs?

Choices about specifications have a direct effect on the success of the project and on long-term happiness. Systematic review keeps products from not meeting the needs of their applications.

Assessing Load Requirements and Environmental Context

First, figure out the types of traffic and vehicles that will be going through the work site. Municipal roads that carry industrial trucks must have at least a D400 rating. Industrial buildings that use forklifts or move containers need grades of E600 or F900 to handle heavy wheel loads. Coating choices and frame designs are based on things in the environment, like chemical runoff, freeze-thaw cycles, and how corrosive the soil is.

Dimensional needs come from the equipment that is already there or the plans for new buildings. Standard designs work for most uses, but custom sizing is needed for areas that aren't standard or for specific utility entry needs. Make sure that the chosen measures leave enough space around the structure when they are put according to the manufacturer's instructions.

Certification Compliance and Regulatory Standards

Compliance certifications are often needed for infrastructure projects. EN 124 is still the most common European standard used around the world, while AASHTO rules control many transportation uses in the United States. Certain standards may be mentioned in municipal building codes, and more tests may be needed. Buying from companies that keep their certifications up to date cuts down on approval delays and makes sure that goods meet standards for legal protection.

Certification in ISO quality management means that production is controlled in a way that ensures consistent quality across all orders. For controlled markets, CE marking proves that the product is safe. To make sure the claimed performance standards are accurate, ask for proof of metallographic testing results and load verification records.

Supplier Evaluation Criteria

By working with well-known manufacturers, you can get technical help at any point in the lifecycle of a project. When comparing providers, look at how well they can customize their products to meet specific needs, how much stock they have so that common setups can be delivered quickly, and how much engineering help they offer for complicated installations. Arrangements for bulk buying should offer benefits based on numbers while keeping quality the same across large amounts.

Being clear about lead times helps make sure that material deliveries don't interfere with building plans. Manufacturers with a lot of stock can meet pressing needs, but unique designs need to be planned into the production schedule. When questions come up during the installation process, clear communication protocols and quick technical support keep delays from happening that cost a lot of money.

Procurement Guide: Buying Heavy Duty Ductile Iron Covers for B2B Clients

Strategic methods to buying things get the best value while making sure that key infrastructure parts have reliable supply lines.

Identifying Certified Manufacturing Partners

There are many producers in the global supplier landscape, and their skills and quality standards range, and for heavy duty ductile iron cover, focus your evaluations on well-known producers with verifiable certifications, well-documented quality systems, and track records of success in your target market, and before committing to large orders, ask for samples of the products to be inspected and tested. Focus your evaluations on well-known producers with verifiable certifications, well-documented quality systems, and track records of success in your target market. Before committing to large orders, ask for samples of the products to be inspected and tested.

Manufacturing ability is important when projects need large amounts of materials quickly. Suppliers with more than 2,000 tons of stock can meet immediate needs for standard configurations, and those with the ability to produce to order can meet specific needs. Check to see if potential partners have the engineering skills to make custom molds and provide 3D design confirmation before starting production.

Understanding Pricing Structures and Value Drivers

Prices are affected by more than just the cost of materials. Order volume has a direct effect on unit economics, and when you buy in bulk, you can get big discounts. Customization requests like non-standard sizes, special finishes, or adding a brand add to the development costs, but they are spread out over a larger order. Logistics factors like shipping distances, customs procedures, and delivery times affect total landed costs, which need to be looked at in addition to unit prices.

Prices that are competitive depend on where you live and how the market is doing. Instead of focusing on the lowest starting cost, you should look at the total value offer, which includes things like consistent quality, expert support, guarantee terms, and the reliability of the provider. More and more, procurement managers are realizing that working with skilled suppliers who produce reliable goods is the best way to avoid the costly problems that come with quality problems or supply interruptions.

Streamlining Acquisition Processes

Clear documentation of specifications is the first step to making procurement workflows work well. When you ask for quotes, be sure to include specifics about the sizes you need, the types of loads you want, the amounts you expect, and when you need them by. With this information, suppliers can make accurate bids without having to go through multiple rounds of explanation, which slows down the project.

Set up rules for how to talk to each other about technology issues, reports on production progress, and coordinating shipments. Reliable suppliers answer price inquiries within 24 to 48 hours and give accurate delivery estimates that range from immediate availability for standard products to 7 to 15 days for custom configurations. For big orders, ask for regular updates on the production state so you can be ready for any changes to the plan that could affect project timelines.

Building relationships with capable suppliers creates advantages extending beyond individual transactions. Preferred customer status often yields priority production scheduling, flexible payment terms, and proactive notification of product enhancements or industry developments affecting future procurement needs.

Conclusion

Infrastructure professionals looking for access covers that will really last will find that ductile iron technology has strong benefits in terms of durability, safety, and lifecycle value, and for heavy duty ductile iron cover, the material's high tensile strength and impact resistance keep traditional cast iron installations from failing in disastrous ways, and also, theft prevention, noise reduction, and operational safety are all built into the design. The material's high tensile strength and impact resistance keep traditional cast iron installations from failing in disastrous ways. Also, theft prevention, noise reduction, and operational safety are all built into the design. When procurement teams look at the total cost of ownership instead of just the original purchase price, the fact that quality ductile iron covers last longer and need less upkeep shows that they are more cost-effective. Strategic relationships with qualified makers that offer technical support, the ability to make changes, and reliable delivery lay the groundwork for building projects that are completed successfully and last for decades.

FAQ

What certifications validate ductile iron cover quality and safety?

When buying things for infrastructure, they have to meet certain standards. EN 124-2 sets the rules for testing and classifying loads that are used all over Europe and the world. For U.S. transit uses, AASHTO M306 sets the rules. If a company has ISO 9001 recognition, it means they use systematic quality management methods to make sure their production standards are always met. For every project, you should always ask for proof that it meets the standards that apply to that project.

How does proper installation extend service life?

The quality of the installation has a big effect on how well it works in the long run. For loads to be spread out evenly, the frame must sit level on base material that has been properly packed down. Anchoring in concrete should completely surround the frame base and stop it from moving or settling. Making sure that the cover and frame are properly seated stops the rocking that causes noise and faster wear. If you follow the manufacturer's fitting instructions, the cover will last longer than 30 years, which is its full service life potential.

Are ductile iron covers environmentally sustainable?

Ductile iron is a sustainable building material because of a number of factors. When the material's useful life is over, it can still be recycled in its entirety. For example, scrap iron can be used to make new products without losing any of its quality. Manufacturing processes are using less energy, which means smaller carbon footprints. The high level of longevity means that replacements aren't needed as often, which saves resources and keeps installations running smoothly over the lifespan of an infrastructure. This mix of being able to be recycled and lasting a long time fits with current environmental stewardship goals.

Partner With FLA Industrial & Trading Co., Ltd. for Certified Infrastructure Solutions

Working with heavy duty ductile iron cover makers who are dedicated to quality and customer success makes it easy to deal with the complicated process of buying infrastructure parts. In the building industry, FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and makes ductile iron covers that meet foreign standards like EN 124, AASHTO, and ISO certifications. Our engineering team offers full support, from helping with specifications to making custom molds and giving installation advice. Get in touch with us right away at sales@flaindustrial.com to talk about your project needs and find out how our large inventory, fast production, and low bulk prices can help your infrastructure projects succeed.
