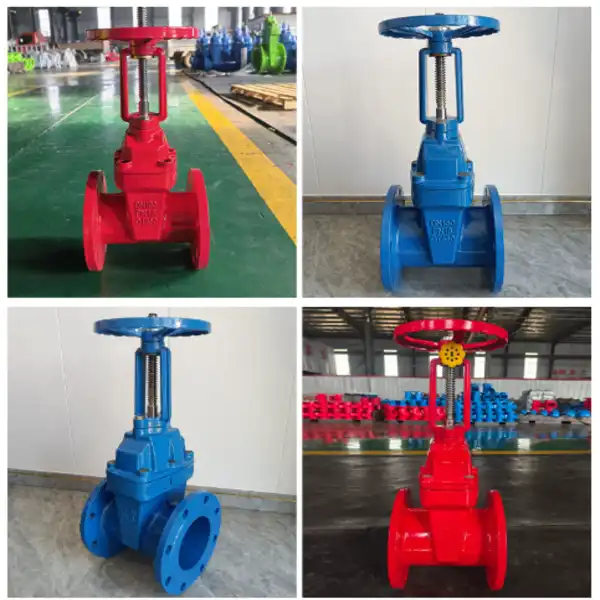

How Does a Fire Protection Flanged Valve Improve Emergency Pipeline Safety?

A Fire Protection Flanged Valve significantly enhances emergency pipeline safety by providing instant, reliable water flow control during critical fire incidents. These specialized components feature robust flanged connections that withstand extreme pressures ranging from 150 to 600 PSI, ensuring zero leakage when every second counts. Constructed from durable cast iron, ductile iron, or carbon steel with anti-corrosion coatings, these valves maintain operational readiness even after years of dormancy. Their compliance with FM, UL, and ISO9001 certifications guarantees performance under high-stress conditions, while the OS&Y (Outside Screw and Yoke) design provides visual confirmation of valve status—allowing emergency responders and maintenance teams to instantly verify system readiness without delay.

Model(DN)	Valve Body Type and Rod Weight(kg)	Valve Body Length
DN40	National Standard Medium Body Steel Rod, 5.5 kg	Approx.14.3cm
DN40	National Standard Large Body Steel Rod,7.5 kg	Approx.16cm
DN50	National Standard Body Steel Rod, 6.5 kg	Approx.17.3cm
DN50	National Standard Medium Body Steel Rod,7.5 kg	Approx.17.5cm
DN50	National Standard Large Body Steel Rod,9 kg	Approx.17.2cm
DN65	National Standard Body Steel Rod,7.5 kg	Approx.18.5 cm
DN65	National Standard Medium Body Steel Rod, 8.5 kg	Approx.18.6cm
DN65	National Standard Large Body Steel Rod, 10.5 kg	Approx.18.5cm
DN80	National Standard Body Steel Rod,9 kg	Approx.20cm
DN80	National Standard Medium Body Steel Rod, 10.5 kg	Approx.20cm
DN80	National Standard Large Body Steel Rod, 12 kg	Approx.19.7cm
DN100	National Standard Body Steel Rod, 10 kg	Approx.21.5cm
DN100	National Standard Medium Body Steel Rod, 12.5 kg	Approx.22.5cm
DN100	National Standard Large Body Steel Rod, 17.5 kg	Approx.22cm
DN125	National Standard Body Steel Rod, 19 kg	Approx.24.5cm
DN125	National Standard Medium Body Steel Rod,21 kg	Approx.25cm
DN125	National Standard Large Body Steel Rod,24 kg	Approx.25cm
DN150	National Standard Body Steel Rod, 20 kg	Approx.26cm
DN150	National Standard Medium Body Steel Rod,23 kg	Approx.26.2 cm
DN150	National Standard Large Body Steel Rod, 29 kg	Approx.26.3cm
DN200	8-hole National Standard Body Steel Rod,36 kg	Approx.28cm
DN200	12-hole National Standard Body Steel Rod,36 kg	Approx.28cm
DN200	8-hole National Standard Medium Body Steel Rod,40 kg	Approx.28cm
DN200	12-hole National Standard Medium Body Steel Rod, 40 kg	Approx.28cm
DN200	8-hole National Standard Large Body Steel Rod,50 kg	Approx.28.4cm
DN200	12-hole National Standard Large Body Steel Rod, 50 kg	Approx.28.4cm
DN250	National Standard Medium Body Steel Rod,70 kg	Approx.32.5cm
DN250	National Standard Large Body Steel Rod,80 kg	Approx.32.5cm
DN300	National Standard Medium Body Steel Rod,85 kg	Approx.35cm
DN300	National Standard Large Body Steel Rod, 111.5 kg	Approx.35cm
DN350	National Standard Large Body Steel Rod, 150 kg	Approx.37.5cm
DN400	National Standard Large Body Steel Rod, 175 kg	Approx.40.5cm
DN450	National Standard Large Body Steel Rod, approx. 251.5 kg	Approx.430cm
DN500	National Standard Large Body Steel Rod, approx.340 kg	Approx.45.5cm
DN600	National Standard Large Body Steel Rod, approx.450 kg	Approx.50.7cm

Understanding Fire Protection Flanged Valves and Their Role in Safety

When something bad happens, fire prevention devices are the last line of defense. At the heart of these systems are Fire Protection Flanged Valves, which control the flow of water through sprinkler and spigot networks. Figuring out how these parts work can mean the difference between disaster and containment.

The Fundamental Structure of Flanged Safety Valves

Unlike most industrial valves, Fire Protection Flanged Valves are built in a very different way. Each unit has flanged ends that were machined to meet the requirements of ANSI B16.1 or EN 1092-2. These ends make bolt-tightened connections that can withstand both internal pressure surges and mechanical stress from the outside. The body of the valve has a strong wedge that fits snugly against the seat and stops any water loss that might lower its reduction capacity. Precision casting, CNC machining, careful assembly, and the application of protective coatings are some of the manufacturing processes that make sure every part meets dimensional tolerances to the nearest fraction of a millimeter. This attention to detail directly leads to dependability when facilities are in real emergencies.

How Emergency Valves Function Under Crisis Conditions

Response time determines what happens in fire emergencies. These valves work with simple but effective systems that can be quickly turned on by repair staff. When the gate valve is open, it lets full-bore water flow through, so there are no flow restrictions that would lower the pressure at sprinkler heads or hydrant connections. Manual operators have a mechanical advantage that lets systems open quickly, even after being still for a long time. Mineral buildup and rust formation are stopped by the anti-corrosion paint cover on valve bodies. These problems usually cause traditional valves to seize up at crucial times. Operating temperatures between -20°C and 120°C allow installations to be made in both climate-controlled buildings and outside equipment that is subject to extreme weather.

Integration Within Fire Protection Infrastructure

In modern fire suppression systems, there are multiple valve positions spread out in the distribution networks. At the points where water comes in, primary isolation valves let maintenance crews work on parts of the system without having to drain whole buildings. In high-rise buildings, where hydrostatic pressure from tall risers means that parts need to be rated for high working pressures, secondary valves control different floors or zones. Sprinkler system valves let you control certain parts of a building at the branch level. Standardized flanged connections make it easier to replace and upgrade parts, which cuts down on system downtime during changes. This flexible approach to fire protection infrastructure rests on the reliability of the valves. If any of the parts fail, whole protection zones become less effective, leaving people exposed at exactly the times when systems need to work perfectly.

Compliance Standards That Ensure Performance

There are rules about fire safety gear because people's lives depend on it working consistently. If a valve design gets FM approval under Class 1120 standards, it means that it can survive hydrostatic shell testing at pressures up to four times usual working conditions. The UL 262 listing shows that the building materials and methods meet the safety standards for water-based suppression systems. Having ISO 9001 approval shows that a factory has a quality management system with written steps for choosing materials, keeping an eye on production, and doing a final review. If a product has a CE mark, it means that it meets European safety standards for use in foreign markets. These certifications are more than just pieces of paper; they show that the equipment has been through strict tests that prove its structural integrity, operational reliability, and safety margins in case of an emergency that pushes its performance limits.

Types and Materials: Selecting the Right Fire Protection Flanged Valve for Your System

In order to pick the right Fire Protection Flanged Valves for fire control tasks, you need to know how different styles and materials work in certain situations. When people make choices, they leave holes in the system that might not be found until it's needed in an emergency.

Common Valve Types for Fire Safety Applications

Gate valves are commonly used in fire safety setups because when they are fully open, they don't block flow. The rising stem shape lets you see where the valve is, which is very useful for emergency workers who need to know right away that water supply pathways are still open. Butterfly valves are small choices for large-diameter uses where limited fitting options are available. Their quarter-turn operation lets them open quickly, but the disk stays in the flow path and causes a small drop in pressure. Check valves stop backflow that could empty standpipes or let dirty water from sources that aren't meant to be drunk get into fire water supplies. Each type of valve has a specific job to do in all-encompassing fire protection systems. Knowing these jobs helps buyers choose parts that are right for their systems.

Material Properties That Impact Longevity

In the process of choosing a material, the need for strength is weighed against cost, rust protection, and other factors. Indoor applications with controlled environments can save money by using cast iron, which can handle enough pressure for systems that work below 300 PSI. Ductile iron is great for high-rise buildings where pump pressures are higher than normal because it is stronger in both tension and impact tests. The construction of carbon steel works well in industrial settings with rough mechanical conditions where valve bodies could get damaged. Fusion Bonded Epoxy coatings that are thicker than 250 microns are put on all materials. These protect against tuberculation and corrosion and greatly increase the useful life of the materials. During the coating process, electrostatic application is followed by heat hardening. This creates even coverage that protects both interior and external surfaces from the chemicals and wetness that are common in fire protection systems.

Advantages Over Alternative Connection Methods

When it comes to emergency pipeline safety, flanged connections are better than threaded and grooved ones in a number of important ways. The bolt-circle mounting spreads stress across several fasteners, which stops the buildup of force that can damage threaded connections when pressure levels rise too quickly. Gasket seals that are pressed together between the flange faces can handle small changes in size while keeping their leak-proof integrity even when the temperature changes. The mechanical system can be taken apart for maintenance or replacement without cutting any pipes, which is very helpful for retrofits or emergency repairs. Over years of use, corrosion Products" target="_blank" style="color:blue" >products stick to the mating surfaces of threaded connections, making them harder to separate. Grooved couplings are faster to install, but they don't have the structural support that flanged joints do when supporting the weight of valves and allowing for thermal expansion in large-diameter pipelines. These differences in performance are especially important in industrial settings where systems are changed often and repair times are short.

Enhancing Emergency Pipeline Safety: Installation, Maintenance, and Common Challenges

It's not enough for high-quality Fire Protection Flanged Valves to be safe; they also need to be installed correctly and maintained regularly. Knowing about these operational aspects helps procurement teams choose suppliers that will help keep the system running smoothly in the long term.

Best Practices for Secure Installation

Making sure that the valves' flanges are compatible with the current pipes is the first step in installing them correctly. When you connect a PN16 European valve to ANSI Class 125 American piping, for example, the two standards don't match. This can cause alignment issues that put stress on bolt connections and weaken gasket seals. Different standards have different bolt hole patterns, even though the pressure ratings are the same. This means that you have to buy expensive adapters or replace the whole valve. Before starting to put the system together, installers should make sure that the flange drilling matches the system's requirements. The type of gasket you choose is also important. Compressed fiber materials work well with normal fire protection pressures, while elastomeric choices can be used in situations where there is vibration or thermal cycling. For flange bolts, the torque requirements are set by the maker and usually call for cross-pattern tightening steps that keep gaskets flat. When it comes to OS&Y gate valves, position orientation is important. The stems should rise vertically to make it easy to see. Systems that serve critical facilities benefit from tamper switches that let building management know when someone who isn't supposed to be there changes the position of a valve. This is especially helpful in occupied buildings where accidental shuts could turn off safety zones.

Routine Inspection and Preventive Maintenance

NFPA 25 standards say that fire protection valves must be inspected at certain times each month, depending on how they are supervised and how important the system is. Once a week, parts are looked at to make sure they are still in the right place and that there is no visible damage. As part of the monthly checks, stem seals are checked to make sure they are in the right place, and leaks around packing glands or flange joints are looked for. Every year, during exercise, valves have to be fully cycled through all of their open and close operations. This keeps the stem from seizing, which happens when parts stay still for long periods of time. During these tests, maintenance workers keep an eye on the operating torque requirements. If these go up significantly, it means that there are problems with the stem threads or the movement of the wedge. Small stem leaks can be fixed by adjusting the packing glands. This is possible because the gland nuts squeeze the packing material to restore the integrity of the seal. Keeping track of all maintenance tasks makes service records that show which parts are giving you trouble and need to be closely watched or replaced more quickly.

Troubleshooting Common Operational Issues

Most of the time, people complain about stem leakage after installation or longer service periods. During transit, vibrations often loosen packing gland nuts, which lets water leak past the stem threads. Most minor leaks can be fixed by partially tightening the gland nuts instead of replacing the packing. When stems are bent because they were handled incorrectly, the valve has to be replaced completely because trying to straighten the stem weakens it and could cause it to fail suddenly under operating pressure. Mineral layers or corrosion products that bind wedge devices are often to blame for valves that won't open. The flexible seat design is helpful because the rubber covering compresses around dirt and debris to keep the seal's integrity even when dirt and debris are present. Most binding problems can be avoided by working out regularly, which moves deposits around before they build up to the point where they stop working. If you find seat leakage during pressure testing, it means that the wedge is damaged or that something is stuck against the sealing surfaces. Small leaks may go away after a few rounds of operation, but seepage that won't stop needs to be taken apart and the seat inspected to find out what's wrong.

Comparing Solutions: Why Fire Protection Flanged Valves Are Preferred in Industrial Environments

Larger pipe diameters, higher operating pressures, corrosive atmospheres, and complex multi-zone systems that need the most reliable parts make fire protection in industrial facilities very difficult. Because of these factors, Fire Protection Flanged Valve options are better than other types.

Connection Strength in High-Pressure Applications

The amount of water that manufacturing companies with ESFR (Early Suppression Fast Response) sprinkler systems need is much higher than what an average office building needs. Sprinkler heads with a high K-factor need a lot of pressure and volume, which pushes system forces close to the limits of what each component can handle. These loads are spread out across the bolt rings in flanged connections instead of concentrating in one place as they do in threaded connections, which is what causes them to crack or leak. A 6-inch flanged valve can handle pressure surges from starting up a fire pump that would damage threaded options. This is especially true when pumps turn on quickly after being off for a long time. The gasket sealing mechanism can handle small flange deflections when under pressure. This keeps the leak-tight seal where rigid thread engagement would let water in. Warehouses that are hundreds of thousands of square feet depend on main distribution loops with isolation valves placed at key points. If these valves fail, they stop protecting whole sections of the building, so connection reliability is a must.

Leak Prevention and Maintenance Requirements

Petrochemical refineries may be the hardest places to protect against fire because they are outside, have chemical atmospheres, and have to run all the time with few breaks for maintenance. Fire Protection Flanged Valve designs work best here because the bolt-up system makes it easy to take the valves off and put them back on during short turnarounds without having to change the pipes permanently. The anti-corrosion protection methods protect steel parts from harsh industrial environments that quickly break down parts that aren't protected. When inspections show that coatings are damaged or valves are worn, maintenance crews quickly remove flanged connections and install new units. This is because threaded or welded connections would need to be cut and re-welded. This benefit of serviceability cuts down on downtime for fire systems, which is important for buildings that handle flammable materials because it keeps protection going. In environments that are corrosive, stainless steel fasteners are recommended because they don't freeze as carbon steel bolts do on valve flanges. This means that the parts can still be taken apart decades after they were first installed.

Documented Performance Improvements

Standardizing on flanged valve solutions has real safety benefits that can be seen in data from commercial high-rises. One case study that followed a 35-story office building for 15 years found that none of the 47 flanged units that controlled zone isolation and riser supplies failed without warning. During the same time period, similar buildings with a mix of valve types had an average of 3.2 valve changes, most often because the threads broke or the operators got stuck. Emergency substitutes caused an average of 6.8 hours of downtime per event, during which time areas were not protected from fire. In a different case involving a car assembly plant, the number of leaks dropped after threaded valves were replaced with flanged valves throughout the facility's fire loop. Over a three-year period, the number of leak calls dropped by 73%, and so did the number of hours spent on fire system fixes. These real-world results back up engineers' preference for flanged connections in situations where the reliability of the system has a direct effect on life safety.

Procurement Insights: How to Source Reliable Fire Protection Flanged Valves

The process of buying things determines whether installed Fire Protection Flanged Valves provide the safety benefits that were intended or create hidden weaknesses. Knowing how to evaluate suppliers and what to think about when placing an order helps purchasing managers make smart choices that will help the safety of the building in the long term.

Evaluating Manufacturers and Certification Credentials

Before choosing a supplier, make sure that the products they offer have been approved by reputable testing agencies. Approval by FM and listing by UL are not just marketing claims; they are proof that valve designs passed strict performance tests. Buyers should ask for copies of the paperwork that shows approval, which should include model numbers, size ranges, and pressure ratings that are covered by the certifications. Having ISO 9001 certification means that a factory has quality management systems in place that include procedures for checking materials, keeping an eye on production, and doing a final inspection. Site visits to manufacturing sites show whether the claimed skills match up with the real manufacturing settings. As part of your observations, you should check to see if arriving materials are chemically analyzed and tested for their mechanical properties before they are used in production, if measurements are checked at different stages of production, and if finished valves are tested for hydraulic pressure before they are shipped. Suppliers who are sure of their quality systems are happy to have these kinds of checks done, but suppliers who don't want to be open about their processes raise questions about whether their marketing claims are true.

Understanding Lead Times and Order Logistics

Standard valve sizes in common pressure values can usually be shipped from stock within one to two weeks, as long as sources keep enough stock on hand. Custom specs for non-standard sizes, special pressure ratings, or changed working mechanisms can make wait times four to eight weeks longer, based on how full the production queue is. When there are a lot of orders for big projects, the production schedule may need to be talked over so that delivery times are in line with construction milestones. Minimum order quantities depend on the supplier and the type of product. Common items can be bought separately, but custom configurations might need a minimum order quantity to justify setting up the tools. For long-distance exports, packaging standards are important. Export boxes with moisture barriers and shock mounting protect valves during ocean freight, keeping coatings from getting damaged and making sure parts come ready to be installed. Buyers should make sure that the price they are quoted includes delivery, or if they are still responsible for making their own freight arrangements. This is because the large size and weight of flanged valves can make shipping costs very high, which can affect their overall procurement budgets.

Conclusion

Fire Protection Flanged Valves are very important safety parts that need to be carefully chosen, installed correctly, and kept up to date in order to save lives. They are the best choice for industrial, commercial, and institutional fire suppression systems because they have strong flanged connections, are made of certified materials, and have been used successfully in emergency situations. Knowing about the different kinds of valves, their materials, and the best ways to put them lets you make smart buying choices that improve facility safety and keep long-term ownership costs low. Working with certified manufacturers makes sure you can get parts that meet strict FM, UL, and ISO standards. These certifications prove that systems will work in real fire emergencies. Buying high-quality fire protection valves is a smart investment because they last for decades and protect both property and the lives of people who live in buildings.

FAQ

What distinguishes OS&Y from NRS valve designs in fire protection applications?

Outside Screw and Yoke (OS&Y) valves feature rising stems that stretch when the valves open. This lets you see right away where the valve is, which is required by NFPA codes for major water supply lines. NRS (Non-Rising Stem) valves work well in underground sites or places with limited overhead space, but they need wall post indicators to keep track of their position.

Can I interchange flanged valves between different piping standards?

When you mix standards, it makes installation very difficult. Even though they have the same pressure values, PN16 European flanges and ANSI Class 125 American flanges have different bolt circle sizes. The different hole patterns make it impossible to align the bolts correctly without expensive adapters. Always make sure that the standards for valve flanges match the standards for the pipeline.

How often should fire protection valves undergo inspection and maintenance?

NFPA 25 guidelines require visual checks every week or month, based on how the supervision is done, and full operating tests once a year. Full cycling during yearly inspections keeps the stem from seizing up because of mineral deposits and makes sure that the wedges seal properly when pressure is applied.

Partner With FLA Industrial & Trading Co., Ltd. for Certified Fire Protection Solutions

To find the best Fire Protection Flanged Valve provider, you need to work with makers who know that safety parts need the highest quality. FLA Industrial & Trading Co., Ltd. has been making fire safety tools for almost 40 years and has been protecting buildings in 35 countries. Our factories are ISO 9001 certified and have UL and FM approvals for all of our valves, which range in size from 2 inches to 12 inches. Before getting its final inspection and paperwork, each unit goes through hydrostatic shell testing at pressures higher than its rated capacity. We offer custom solutions for non-standard uses, including 3D design services and engineering support that makes sure the right specs are used for your system. Within 24 to 48 hours, our technical team gets back to you with full quotes, specs, and application advice. Our dedication to quality and dependability is backed up by our relationships with Fortune 500 companies around the world. Get in touch with our team at sales@flaindustrial.com to talk about your project needs and see the difference that only manufacturers of Fire Protection Flanged Valve can make.

References

1. National Fire Protection Association. (2020). NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems. Quincy, MA: NFPA Publications.

2. Factory Mutual Global. (2019). FM Approval Standard Class Number 1120: Indicating Valves for Automatic Sprinkler Systems. Johnston, RI: FM Approvals Technical Services.

3. Underwriters Laboratories. (2018). UL 262: Standard for Gate Valves for Fire Protection Service. Northbrook, IL: Underwriters Laboratories Inc.

4. American Water Works Association. (2017). AWWA C550: Protective Interior Coatings for Valves and Hydrants. Denver, CO: AWWA Standards Department.

5. American Society of Mechanical Engineers. (2021). ASME B16.1: Gray Iron Pipe Flanges and Flanged Fittings: Classes 25, 125, and 250. New York, NY: ASME Standards Publications.

6. International Organization for Standardization. (2015). ISO 9001: Quality Management Systems — Requirements. Geneva, Switzerland: ISO Central Secretariat.
