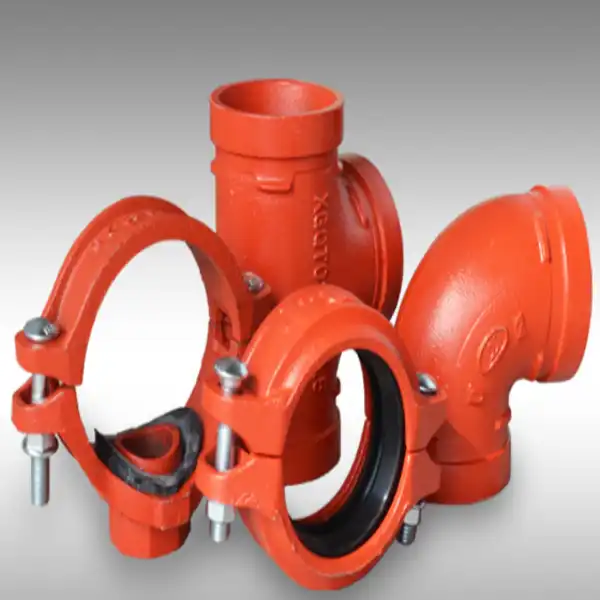

How Does a Grooved Blind Flange Improve Pipe Systems?

A Grooved Blind Flange makes pipe systems better by letting you quickly close off the ends without using any tools or welding. This cuts down on installation time by up to 70% compared to traditional flanged or welded methods. Its mechanical coupling design allows for thermal expansion and vibration while keeping leak-proof seals, which keep terminal points from breaking down because of stress. The ductile iron construction can handle working pressures of up to 300–500 psi, making it better at resisting impacts and lasting longer in HVAC, fire protection, and industrial fluid transport uses.

Specifications
Nominal Diameter(mm)	Steel Pipe Outer Diameter(mm)	Nominal Pressure(MPa)	Unit
50	60	2.5	Piece
65	76	2.5	Piece
80	89	2.5	Piece
100	114	2.5	Piece
125	140	2.5	Piece
150	165	2.5	Piece
200	219	2.5	Piece

Understanding Grooved Blind Flanges: Features and Functions

When you're in charge of industrial plumbing jobs, you need terminal parts that are both reliable and efficient. The Grooved Blind Flange is a big step forward in mechanical plumbing technology. It was designed to seal the ends of pipelines without all the problems that come with regular bolted flanges.

What Makes This Component Unique

Its ability to work with curved mechanical connection systems is what makes it unique. This part doesn't use threaded connections or welded joints; instead, it has ANSI/AWWA C606-compliant holes that were precisely cut. Specialised couplings made up of housing assemblies, elastomeric gaskets, and fastening hardware fit into these grooves and form hermetic seals in minutes.

When you make something from ductile iron that meets the requirements of ASTM A536 Grade 65-45-12, the material has qualities that are much better than those of regular grey cast iron. The minimum tensile strength is 65,000 psi, and the nodular graphite microstructure makes it very resistant to impact, which is very important for systems that experience water hammer or pressure surges.

Structural Components and Operational Mechanics

The coupling gasket is pressed against both the pipe groove and the flange face to make the closing device work. When installers tighten the coupling bolts to the torque levels recommended by the manufacturer, the gasket deforms to fill in any rough spots on the surface, making a continuous barrier against fluid migration. This compression-based seal can handle small changes in angle and pipe movement along its length without losing its integrity.

Surface changes have a direct effect on how well something works in its surroundings. Indoor uses where moisture in the air isn't a big problem are good for painted finishes made with rust-inhibiting alkyd enamel. Hot-dip galvanized coatings that meet ASTM A153 standards protect parts that are used in marine environments, wastewater treatment plants, or outside installations where chloride exposure speeds up corrosion.

Ratings for pressure depend on the type of coupling and the diameter of the component. Standard setups can handle working pressures of 300 to 500 psi, with stiff coupling types being able to handle higher limits than flexible ones. Temperature limits are mostly caused by the choice of gasket material. EPDM compounds can handle water up to 230°F, while nitrile formulas can handle oil within certain temperature ranges.

Material Selection and Environmental Considerations

The ferrite-pearlite microstructure of ductile iron gives it balanced mechanical properties across a wide range of temperatures. It stays flexible at subfreezing temperatures, where cast iron would break. Understanding how the material corrodes is important. Galvanized surfaces are good at resisting oxidation in the air, but long-term exposure to highly acidic or highly alkaline fluids calls for different materials or protective coatings.

The dimensional requirements are in line with international standards so that Products" target="_blank" style="color:blue" >products from different manufacturers can work together. Important measures include the accuracy of the groove width, the margin for the groove diameter (usually ±0.015 inches), and the flatness of the sealing face. These factors have a direct effect on the even compression of the gasket and the long-term reliability of the seal. This is why checking the dimensions is so important during purchase checks.

Advantages of Grooved Blind Flanges Over Traditional Flanges

In competitive industrial markets, choosing the right parts is based on how well they work together. There are a number of performance differences between mechanical Grooved Blind Flanges and standard flanged assemblies that have a direct effect on project timelines and total ownership costs.

Installation Speed and Labor Efficiency

For traditional weld neck or slip-on flanges, you need a special welding licence, a hot work pass, and a set of rules for inspecting after the weld. Before pressurisation, installation teams have to prepare the joint areas, weld, let the parts cool, and do non-destructive testing. Each connection point needs hours to go through this sequence.

These needs are completely taken care of by grooved mechanical systems. Technicians use portable tools to cut grooves in pipes to the right length, place the end cap, and secure the coupling. Each connection takes less than ten minutes to install. This speeding up is especially helpful for upgrade projects in buildings that are already occupied, where welding could cause a fire or require expensive facility shutdowns.

The skills needed for work also change. Welded connections need certified welders who charge high hourly rates, but grooved installations only need basic mechanical knowledge and the ability to use a torque wrench. This ease of access lowers the cost of labour while increasing the number of people who can work. This is especially helpful in remote areas where specialized trades are hard to find.

Maintenance Simplicity and System Adaptability

Another practical benefit is that parts can be taken apart for checking or system changes. To take apart a bolted flange assembly, you have to break several bolt connections, possibly replace corroded fasteners, and then re-torque the bolts according to their original patterns when you put the assembly back together. Grooved joints use four to six nuts, no matter what size the pipe is, and the parts won't gall when they're installed properly oiled.

System growth examples show how it can be useful in real life. When facilities need to extend pipelines, grooved end caps can be taken off quickly and easily, without the need for cutting tools or skilled workers. Contractors only need to loosen the coupling nuts, take off the cap, lengthen the pipes, and reattach them. These steps can be done during short repair windows without stopping production.

Grooved systems are different in places with a lot of vibration, like pump discharge lines or earthquake zones, because of how they reduce vibrations. The elastomeric gasket absorbs mechanical waves that would otherwise move through rigidly welded joints. This lowers the amount of wear stress that builds up at the ends of the joints. This compliance makes the system last longer in situations where cyclic loading would normally cause regular connections to break too soon.

Performance in Demanding Applications

The ability of grooved technology to handle pressure surges is very helpful for fire safety systems. When the sprinklers are turned on, the speed of the water goes from zero to full flow in an instant, causing hydraulic shock waves. Grooved connections can handle these short-term forces because they have a little angular flexibility. Rigid welding caps, on the other hand, may get tiny cracks that spread over time.

When installing HVAC systems in tall buildings, problems arise because of thermal expansion. As hot or cold water flows through systems, the length of vertical riser columns changes by a large amount. Grooved connections allow this linear movement by controlling the compression of the gasket. This keeps the integrity of the seal over temperature changes that would stress rigid flange bolting patterns.

Chemical processing plants like getting rid of weld heat-affected zones that can make stainless steel pipes less resistant to rust. The qualities of the base material are kept the same throughout the component when it is mechanically connected. This is in contrast to fusion welding, which changes the microstructure in certain areas. This uniformity is very important when working with harsh media because differences in the metals make certain corrosion paths more likely.

Installation and Maintenance of Grooved Blind Flanges

The dependability of the seal and the safety of the system over time depend directly on how well the Grooved Blind Flange was installed. Following the manufacturer's instructions and industry standards will make sure that the part works at its best for as long as it's supposed to.

Pre-Installation Preparation and Alignment

First, make sure that the preparation of the pipe end meets the size standards. The groove must have the same depth all the way around. This is usually checked at four-quadrant points with accurate "go" or "no-go" gauges. Groove width tolerances are usually within ±0.030 inches. Any deviations beyond this range can make it harder for the gasket to seat properly, which can lead to leaks.

Check the sealing face for coating flaws, weld spatter, or uneven surfaces that might get in the way of gasket contact. To get rid of rust, mill scale, and other debris, clean surfaces with wire brushes or gritty pads. When the seal is compressed, and fluid is forced toward flaws, even small ones can cause leaks.

Place the part so that the closing face is straight across from the pipe axis. Angular misalignment makes the compression of the gasket uneven, which leads to preferred leak paths. Use alignment tools or a visual check to keep the squareness within one degree. Most coupling designs can handle small deflections, but angles that are too big lower the pressure that they can hold.

Coupling Installation and Torque Specifications

Place the gasket inside the coupling housing, making sure it is facing the right way according to the markings on the gasket. When installing a gasket, the lips must face the direction of the system pressure points. If they are installed backwards, fluid pressure can lift the gasket edge instead of pressing it against the sealing surfaces.

Place the coupling assembly over both the pipe groove and the blind flange at the same time. Before the bolt is tightened, the coupling keys or lugs should fully enter the groove outlines. Partially engaging means that the grooves are the wrong size or that the coupling was chosen incorrectly.

To keep the seal compressed evenly, tighten the coupling bolts in a way that is similar to how wheel lugs are tightened on a car. Use torque wrenches that are measured and set to the manufacturer's specs. The torque range for this type of coupling is usually between 35 and 75 ft-lbs. When you over-tighten, you damage the gaskets and deform the coupling housings. When you under-tighten, you let leaks happen or the couplings separate under pressure.

Inspection Protocols and Maintenance Schedules

For the first pressurisation of the system, all connections must be carefully watched. Hydrostatic testing must be done at 1.5 times the working pressure for at least the amount of time required by the codes. For example, for ASME B31.1 power pipe, it must be done for two hours, and for ASME B31.9 building services, it must be done for four hours. During this test time, keep an eye out for weeping, gasket extrusion, or coupler movement.

When to do a routine repair depends on how the service is running. In controlled environments, water service systems need to be visually checked once a year to see if corrosion is getting worse, gaskets are wearing out, or coupling bolts are coming loose. When using harsh chemicals or installing something outside, it needs to be checked every three months, paying special attention to the condition of the elastomer and the galvanised coating.

Record the results of the check in a structured way, including numbers for torque verification, coating condition assessments, and any gasket extrusion that is seen. If the gasket material goes past the sides of the coupling box by more than 1/8 inch, it means that the gasket was compressed too much or wasn't the right size. It needs to be replaced during the next maintenance window.

Replace the gaskets whenever you take apart a coupling, no matter how it looks. Elastomers lose their initial compression set memory after the first load, and reusing compressed gaskets runs the risk of not having enough closing force when they are put back together. This practice is a cheap way to protect against incidental leaks.

Procurement Insights: Buying and Sourcing Grooved Blind Flanges

Decisions about strategic buying of Grooved Blind Flanges involve more than just unit price. They also involve quality control, the dependability of the supply chain, and the ability to provide expert support. To get the most out of total ownership value, procurement professionals must evaluate suppliers on a number of performance dimensions.

Certification Requirements and Quality Standards

When suppliers get ISO 9001 approval, it means they have written quality control systems that cover the production process, inspection methods, and corrective action procedures. This certification gives you a basic level of confidence in the consistency of the manufacturing process, but it doesn't promise that the product will meet performance standards.

When a product has the CE mark, it means it meets European standards for safety, health, and the environment. This certification shows that strict testing requirements were met, which are often higher than the basic standards in other places. It is mostly important for goods going to be sold in the EU.

For pressure-retaining parts, material approvals are very important. For each production batch, you should ask for mill test reports that show the chemical composition analysis and mechanical property testing. These certificates show that the tensile strength, yield strength, and elongation rates of ductile iron meet the requirements set by ASTM A536. These are the qualities that directly affect the material's ability to withstand pressure and impact.

According to AWWA C606 standards, dimensional inspection reports confirm the shape of the grooves, the flatness of the sealing faces, and the surface finish requirements. Third-party verification from approved testing labs adds more trustworthiness than the supplier's own approval. This is especially true for high-stakes uses like fire protection or high-pressure process systems.

Lead Time Management and Inventory Strategy

Standard catalogue sizes from well-known manufacturers usually ship within days from stock, which is useful for replacement situations in an emergency or just-in-time buying. By building connections with distributors, you can get access to locally stored goods, which cuts down on freight costs and delivery times for everyday needs.

For custom setups with non-standard sizes, special materials, or specific coating needs, wait times are longer. Making things usually takes three to six weeks, depending on how busy the shop is and how complicated the specifications are. This includes making patterns, casting, machining, and quality testing. Planning buying dates around these facts keeps the project plan from getting thrown off.

Bulk buying agreements can save you money and make sure that you always have supplies for big projects or places that need to repair things on a regular basis. When suppliers get commitments from buyers in large amounts, they can plan production better, which could lower unit costs by 15 to 30 percent compared to buying in small amounts. Talk about blanket purchase orders with set release dates, making sure that the costs of keeping inventory are balanced against the benefits of volume pricing.

Evaluating Supplier Technical Capabilities

Customisation skills set value-added partners apart from basic providers. Facilities that need custom-shaped parts, parts with specific pressure ratings, or changes that are made for a specific application benefit from suppliers who offer engineering support during the specification development process. Custom solution development is sped up by having access to 3D modelling services, finite element analysis tools, and the ability to make prototypes.

Quick responses to technical questions show that the supplier cares about helping customers. Within 24 to 48 hours, suppliers who provide quotes, weight figures, and dimensional models show that they are technically and organisationally knowledgeable. This responsiveness is very helpful during the planning stages of a project, when decisions about specifications can have a big effect on critical path schedules.

Minimum order quantity rules affect small buyers and situations where you need to replace something quickly. Suppliers who can take orders for a single piece give maintenance operations more options, but unit pricing usually has higher costs because of setup and order processing fees. When choosing primary and secondary supply sources, you should weigh the ease of ordering against the need to stick to a budget.

At FLA Industrial & Trading Co., Ltd., we make sure that quality is checked at every step of the production process. Our 2,000-ton inventory means that basic configurations are always available right away, and we can meet unique needs within 7–15 days with our customisation options. Our products are backed by ISO 9001 and CE certifications, so you know they meet international performance standards. Our engineering team offers expert advice, from creating specifications to making changes to production, making sure that your needs are met exactly in the finished goods.

Making the Decision: Is a Grooved Blind Flange the Right Choice for Your Pipe System?

To choose the right Grooved Blind Flange, you need to match the product's features with the needs of the application, while also taking into account startup resources, upkeep options, and the cost over its entire life. Several choice factors help figure out the best ways to handle different situations.

Application Suitability Assessment

Fire safety systems are great places for grooved mechanical pipes to be used. Grooved parts for sprinkler systems, standpipes, and fire suppression networks are specifically approved by UL and FM. Getting rid of hot work permits makes installation easier in buildings that are already occupied, and quick assembly helps meet the tight plans that are common in commercial development projects.

Grooved technology makes it easier for municipal water distribution systems to work even when the ground moves or there is an earthquake. Joint separation problems that happen with rigid piping systems are avoided by the slight flexibility that allows for soil settlement. Potable water approvals from NSF International show that the material is compatible with drinking water standards, which meet the needs of health authorities.

Grooved systems are used in commercial and industrial buildings for HVAC because they can handle thermal expansion and dampen vibration. The speed of installation cuts down on labour costs in crowded machinery rooms where limited space makes welding more difficult. Within the temperature ranges stated by the maker, grooved pipes can handle chilled water, condenser water, and hot water services.

Depending on the properties of the medium, industrial process piping offers different opportunities. Grooved systems work best with fluids that don't corrode at moderate temperatures and within their pressure limits. Chemicals that are very corrosive, high or low temperatures, or pressures higher than 500 psi may need different connection methods or better materials than what is normally used for ductile iron.

Pressure and Temperature Considerations

The working pressure must have safety gaps above the highest expected system pressures, which should include short-term spikes. Find the size of the water hammer using the Joukowsky equation, taking into account the rate at which the valve closes and the speed of the fluid. To keep safety factors high enough, choose coupling classifications with pressure ratings that are at least 25% higher than the estimated highest transient pressures.

Temperature changes both how well the gasket works and how well the coupler body stays together. EPDM gaskets can be used with water at temperatures ranging from -30°F to 230°F, which is most of the time for HVAC and potable water. For certain uses that need higher temperatures, nitrile, silicone, or fluoroelastomer gaskets with the right temperature ratings are needed. Check the compatibility of the whole system instead of just looking at individual parts.

For vacuum service, gasket profiles must be made so that they don't collapse under negative pressure. When the pressure inside a system drops below atmospheric, standard seals may pull away from the areas they're supposed to seal. This can leave leak paths when the pressure goes back up. For condensate return, steam system, or process uses that need vacuum conditions, check with the makers about the vacuum-rated gasket specs.

Lifecycle Cost Analysis and ROI

Ownership costs include more than just the price of the original purchase. They also include the labour needed for installation, the need for upkeep, system downtime, and how often the system needs to be replaced. Grooved systems have more expensive parts than welded pipe caps, but the lower cost of installation labour usually makes up for it on jobs with a lot of connection spots.

Figure out how many hours of work are needed for different link methods based on the crew's make-up and hourly rates. Welded connections, which need qualified welders and cost a lot, add up quickly, but grooved installations, which can be done by general mechanical techs for standard rates, save a lot on labour costs. When you compare the total costs of installation, don't forget to include the permit and inspection fees that come with welded pressure piping.

Long-term running costs are affected by how easy it is to do maintenance. Grooved technology makes it easy to take apart systems that need to be inspected, cleaned, or have parts replaced on a regular basis. Think about how much it costs to cut and re-weld versus just loosening coupling bolts. The difference grows over many years of facility use.

Emerging Technologies and Future Readiness

Adding digital monitoring is a trend that is changing industrial pipe systems. IoT devices that measure temperature, flow, and pressure are becoming more and more integrated with building control systems that give real-time information on performance. Grooved mechanical systems allow sensors to be installed using common threaded outlet fittings, which support smart building projects without requiring complicated retrofits.

New materials keep improving the powers of parts. New products on the market include ductile iron alloys that are more resistant to corrosion and composite materials that are better for certain chemical environments. By keeping up with important changes, specification decisions can be made that work with new technology instead of sticking to old solutions.

As companies try to meet their environmental goals, they think about sustainability when they make purchases. The fact that grooved systems can be put back together again after being taken apart supports the idea of the cycle economy. Parts that are taken out for repairs are used in new ways instead of being thrown away. This part is appealing to groups that are keeping track of embodied carbon and waste reduction measures.

Conclusion

Comparing the Grooved Blind Flange end closure to standard flanged or welded options, it offers clear advantages in installation speed, operational dependability, and ease of maintenance. Ductile iron construction keeps the structure strong at working pressures of up to 500 psi, and painted or galvanised finishes keep it from rusting or breaking down in the environment. Following ANSI/AWWA standards and ISO 9001 quality standards for production makes sure that the dimensions are correct and the performance is consistent. Instead of just looking at prices, procurement professionals should judge suppliers based on how many certifications they have, how well they can help with technical issues, and how easy it is to get their products. This way, they can get the most out of the total cost of ownership over the life of a system.

FAQ

Can grooved connections handle the same pressure as welded joints?

Depending on the style and diameter of the coupling, standard grooved mechanical couplings can handle working pressures of up to 500 psi, which is more than what is needed for most industrial water, fire, and HVAC systems. In theory, welded joints can handle higher pressures up to the thickness of the pipe wall, but in practice, grooved systems are more than enough to meet pressure needs in most building services applications. For industrial processes with pressures above 500 psi, you need special coupling systems or other ways to join.

How long do gaskets last before they need to be replaced?

The service life of a gasket depends on things like chemical exposure, changing pressures, and changing temperatures. In stable temperature settings, water service usually lasts between 15 and 25 years before the gasket needs to be replaced because it has worn down. When you take apart a system, you should check the gaskets and replace them if they look worn. This is because elastomers lose their compression set memory after the first load. To support preventative repair programs, keep an inventory of replacement gaskets that match the sizes of the couplings that are already in place.

Are grooved devices allowed for use with potable water?

Yes, grooved mechanical pipe systems are NSF/ANSI 61 certified for contact with drinkable water as long as the material and coating requirements are met. Instead of thinking that the whole system is compliant based on the approvals of individual parts, check to see if all of the gasket compounds, coupling housings, and pipe coatings have the right NSF listings. Check with your local health department to see what exact approvals are needed, as some areas have higher standards than national licensing programs.

Partner with a Trusted Grooved Blind Flange Manufacturer

Finding reliable manufacturing partners who are dedicated to quality and service excellence is the first step in choosing the right parts. FLA Industrial & Trading Co., Ltd. has been making pipe fittings for almost 40 years and keeps more than 2,000 tonnes of stock on hand for more than 1,000 product specifications. Our Grooved Blind Flanges made of ductile iron are certified by ISO 9001 and CE, which shows that they meet international quality standards. We can handle orders of any size, and there are no minimum quantities. Within 48 hours of receiving a request, we will send you a quote and detailed drawings. Custom orders ship within 7 to 15 days, which helps meet tight project deadlines without lowering quality standards. Get in touch with our team at sales@flaindustrial.com to talk about your unique needs and find out how our Grooved Blind Flange supplier services can help you reach your business goals.
