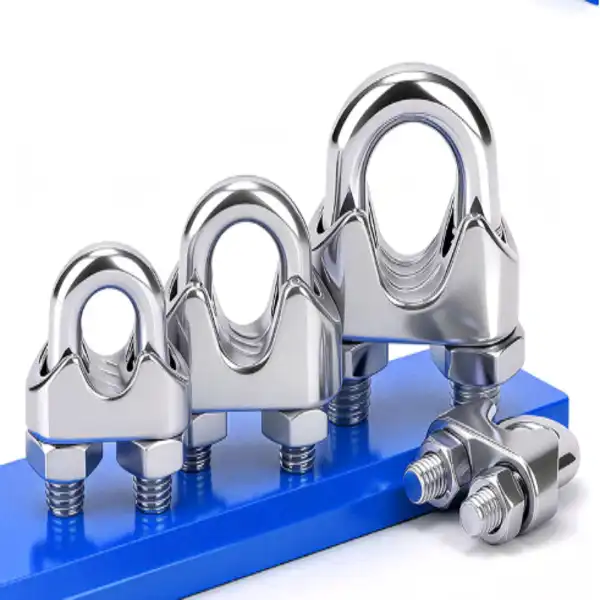

Stainless Steel Rope Clip Ensures Durable Cable Fixing in Harsh Environments

When securing wire ropes in demanding industrial applications, the Stainless Steel Rope Clip stands as an essential fastening solution that resists corrosion and maintains structural integrity. These precision-engineered components secure wire rope terminations and connections across marine, construction, and industrial environments where exposure to moisture, chemicals, and extreme temperatures would compromise lesser materials. Manufactured from premium stainless steel alloys, these clips provide the reliable holding strength needed when safety and durability cannot be negotiated.

Specification
Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips: Essential Components for Secure Cable Fixing

What Makes These Fasteners Critical for Industrial Applications

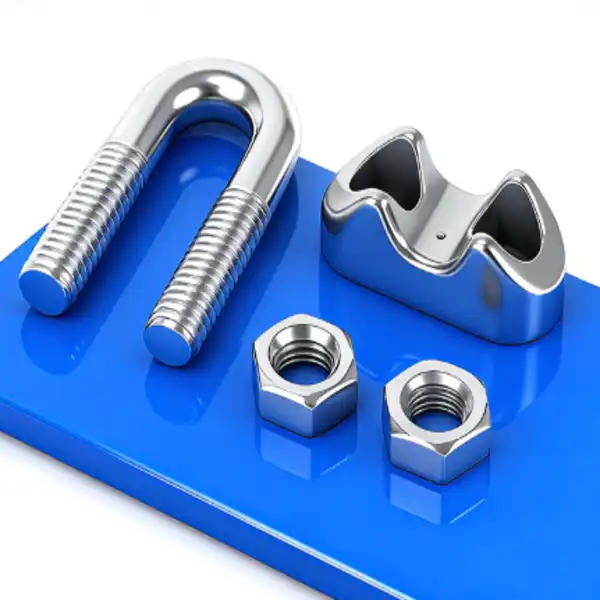

As mechanical fittings, Stainless Steel Rope Clips make safe loop ends or join pieces of wire rope together by clamping them together with friction. A U-bolt, a saddle, and two hexagonal nuts are usually part of the design. When set up correctly, this configuration clamps the dead end of the rope against the live end inside the saddle. This makes a holding force that is 80–90% of the rope's breaking strength. Unlike welded terminations or swaged fittings, these clips can be adjusted in the field to meet the needs of different projects.

Material Grades and Their Significance

The difference between Grade 304 and Grade 316 stainless steel has a direct effect on how well they work and how long they last. Grade 304 has chromium and nickel in it, which together form an oxide layer that protects the metal and makes it very resistant to corrosion. This makes it perfect for use indoors or outdoors. Adding molybdenum to Grade 316 makes it much more resistant to chlorides that are found in saltwater and chemicals used to melt ice. Due to this difference in material, Grade 316 must be used for installations near the coast, naval gear, and any other place where salt is regularly present.

The manufacturing method has a big impact on the quality of the finished product. Precision casting, forging, machining, and finishing are all steps that our clips go through to make sure that they are the right size for every standard, from M2 to M32. This careful attention to manufacturing detail makes sure that the thread pitch stays the same, the saddle radius matches the diameter of the rope exactly, and the clamping force is spread out evenly. Material makeup testing is done on each batch using X-Ray Fluorescence spectrometry to make sure the grade is real. This makes sure that the percentages of chromium, nickel, and molybdenum meet written standards.

Standards Compliance and Safety Certifications

Manufacturers with a good reputation keep their ISO9001 quality management certification, which shows that they follow written methods throughout the whole production process. Getting a CE certificate means that a product meets European standards for health, safety, and protecting the environment. These certifications give people who buy things the proof they need that the Products" target="_blank" style="color:blue" >products they're buying meet international standards for size tolerances, material properties, and load-bearing capacity. Products made to these standards go through strict inspection procedures, such as using precision measuring tools to check the sizes of the parts and salt spray testing according to ASTM B117 to prove they are resistant to corrosion.

How Stainless Steel Rope Clips Outperform Alternatives in Durability and Strength

Comparative Performance Against Galvanized and Aluminum Options

Galvanized steel clips are cheaper at first, but they can't be used in places where metals are likely to rust. The zinc covering protects for a short time, but over time, it breaks down when it comes in contact with water and salt, letting the steel underneath rust. This wear and tear lowers the staying power and means that replacement processes happen more often. Even though aluminum clips don't naturally rust, they aren't strong enough for high-load situations and can rust when they come into touch with metals that aren't the same.

Clips made of stainless steel keep their structural integrity over long periods of time. When scratched, the chromium oxide passivation layer grows back, giving security that fixes itself. This substance stays stable at all temperatures. It stays flexible at very low temperatures and doesn't soften at high temperatures. The austenitic grain structure of grades 304 and 316 keeps them from breaking in ways that are common in carbon steel when it is loaded and unloaded quickly.

Material Selection Based on Environmental Exposure

There are certain environmental factors that affect the choice between Grade 304 and 316. Because Grade 304 works effectively in a variety of weather conditions and can sometimes be exposed to moisture, it is suitable for artistic cable fences in cities, safety cables on construction sites, and cables inside industrial buildings. The material doesn't break down much when exposed to UV light, changing temperatures, and general industrial environments.

Grade 316 is needed in places where chloride is present all the time. Marine engineering uses this improved corrosion resistance for things like lifelines on yachts, dock mooring configurations, and mounting equipment on ships. In wastewater treatment plants, where hydrogen sulfide and chlorine compounds speed up the breakdown of materials, Grade 316 is needed to keep failures from becoming catastrophic. Chemical processing plants also benefit from molybdenum's greater resistance to surroundings that are acidic or basic.

Load Capacity and Safety Factors

Professional-grade Stainless Steel Rope Clips follow safety factors of 4:1 or 5:1, which means that the working load limit is much higher than the minimum breaking load. This technical gap takes into account things like vibration, dynamic loading, and possible differences in the installation. Load testing is done during production to make sure that each size meets its rated capacity with enough safety margins. Only then are the products approved for distribution. Instead of deforming under rated loads like poorly made products can, properly manufactured Stainless Steel Rope Clips keep their shape and holding power even when under constant tension and cyclical loading.

Installation Guide: Ensuring Optimal Performance in Cable Fixing

Step-by-Step Installation Procedure

Installing things correctly has a direct effect on performance and safety. First, make sure the clip size fits the diameter of your wire rope. Clips that are too small won't be able to clamp tightly enough, and clips that are too big won't be able to properly engage the structure of the rope. Choose the right number of clips based on the diameter of the rope and the requirements of the application. Usually, between three and five clips are needed, but this depends on the size of the rope and the load that needs to be carried.

Place the first clip one saddle width away from where the rope ends. The saddle needs to touch the live rope side and the U-bolt needs to touch the dead end. If you switch these positions, the staying power drops by about 20%. Tighten the nuts evenly and in an alternating pattern to the torque values recommended by the manufacturer. Be careful not to overtighten, which could damage the rope strands, or undertighten, which could cause them to slip. Additional clips should be placed every six rope diameters, with the last clip being placed so that the dead end doesn't unravel.

Common Installation Mistakes to Avoid

Thread galling is a common issue with bolts made of stainless steel. Because the material tends to cold weld when friction is applied, a nickel-based anti-seize lubricant or molybdenum disulfide grease must be used before tensioning. This keeps the threads from locking up during installation and lets you make changes in the future. Putting clips on while the rope is under stress makes the binding pressure uneven. Always put clips on before tightening the assembly.

Safety Standards and Compliance Requirements

When you mix clip sizes within a single termination, the load distribution is harmed. Using broken clips with U-bolts that are bent, saddles that are cracked, or threads that are stripped makes weak spots that can break without warning. Retightening is necessary from time to time, especially during the first few loading cycles, when the rope strands settle and the tension is redistributed. On inspection plans, torque should be checked and the item should be looked at visually for signs of deformation, breaking, or rust.

Installation must follow written rules, like DIN 741 for clip specs and the mounting rules that apply in your area. For lifting things from above, you need Stainless Steel Rope Clips that are specifically rated with Working Load Limits and the right certification. You can't use commercial-grade fasteners that don't have lifting ratings for such important tasks. To show that you're following the rules during safety checks, your documentation should have clip specs, installation torque values, inspection times, and load estimates.

Procurement Insights: How to Source High-Quality Stainless Steel Rope Clips

Supplier Selection Criteria

Finding trustworthy makers requires more than just looking at prices. Check out the production skills and industrial processes. For example, precision casting, forging, and machining are signs of operations that focus on quality. Ask for material certifications that use compositional analysis to prove the grade's authenticity. Suppliers who keep their ISO9001 and CE certifications show that they follow strict rules for quality management and product safety.

Customization separates skilled producers from marketers of goods. A lot of the time, projects need sizes, shapes, or types of materials that aren't available in catalogs. Suppliers who offer engineering support can create custom solutions that include parts with unique shapes, different sizes, or different alloy compositions. This flexibility is very helpful when standard products can't meet the needs of a certain project.

Bulk Purchasing Considerations

Understanding minimum order amounts, wait times, and transportation factors makes the buying process easier. Suppliers who keep a lot of stock on hand can quickly fill standard specification orders, cutting down on the weeks of wait time for common sizes. Custom items naturally need longer production processes. Manufacturers who can turn around specialized parts in 7–15 days show that they run their businesses efficiently and keep projects on track.

Total procurement costs are affected by volume pricing structures, but focusing only on unit pricing leaves out important factors. Check to see if the packaging helps keep the items safe while they're being shipped and stored. Make sure there is expert support available to help with installation, material selection, and fixing problems. Response times for quotes, weight checks, and technical models show how efficient an organization is—suppliers who give information within 24 to 48 hours cut decision-making times by a large amount.

Verification Methods for Product Quality

Demanding supporting documentation protects against products that aren't up to par. Ask for Positive Material Identification reports that are made by XRF spectrometry and confirm the composition of the alloy. The results of the salt spray test according to ASTM B117 show that the rust protection works well. Dimensional inspection reports check the accuracy of the geometry against the tolerances set by the specification. Tensile test results show that the load-bearing capacity meets the stated rates.

Samples let you try things out for yourself before you commit to big orders. Check the quality of the surface finish. Smooth, bright surfaces show that the manufacturing process was thorough and that the surface is better protected against corrosion. Use standard gages to check the strength of the thread. Make sure the saddle radius meets the specs for the rope diameter. These checks keep procurement mistakes from happening, which would cost a lot of money and hurt the safety and performance of the project.

Maximizing ROI: Why Investing in Quality Stainless Steel Rope Clips Matters

Total Cost of Ownership Analysis

When people decide to buy something based only on the unit price, they often end up paying more in the long run. Premium Stainless Steel Rope Clips made to exacting standards from tested materials last longer, so they don't need to be replaced as often. In a coastal installation, for example, galvanized clips that aren't very good need to be replaced every two years, while Stainless Steel Rope Clips last 15 to 20 years without breaking. Multiple replacements cost a lot more than the difference in price at first. These costs include materials, labor, machine downtime, and possible safety issues.

The need for maintenance is another cost factor. Aside from being inspected and retorqued every so often, good Stainless Steel Rope Clips don't need much care. Poor quality goods need to be checked, adjusted, and replaced too soon, which takes up upkeep resources and makes planning harder. Cutting down on maintenance intervals and getting rid of unplanned failures makes operations more efficient and lets people work on more useful tasks.

Real-World Performance Benefits

When construction companies use safety cable systems on busy job sites, they can't have equipment breakdowns that stop work and put them at risk of being sued. Reliable wire rope terminations using the right Stainless Steel Rope Clips keep safety barriers up for long project durations, even when they are exposed to weather, vibration, and accidental impacts. This dependability saves both the people working on the job and the schedule.

Marine applications show value propositions in a special way. Yacht owners have to pay a lot of money and deal with a lot of trouble every couple of seasons to replace corroded galvanized rigging parts. If you upgrade to Grade 316 Stainless Steel Rope Clips, you won't have to change them as often. They will last for decades, giving you years of solid service that makes up for the initial investment in lower future costs and higher safety margins.

Future Industry Trends

New developments in manufacturing technology keep making products more consistent and better at what they do. Enhanced heat treatment methods make the qualities of materials work best for certain uses. Electropolishing and other surface treatments get rid of iron particles and microscopic flaws that could cause corrosion. This makes the product last longer in harsh environments. These new ideas make things more reliable and last longer over time.

As the industry moves toward full tracking systems, end users can check that products are real and can be traced back to where they were made. Serialized parts with digital records back up certifications of materials, production dates, and the results of quality checks. This openness helps asset management programs and paperwork for regulatory compliance, and it keeps fake goods from getting into supply chains.

Conclusion

When choosing the right Stainless Steel Rope Clips, you have to weigh the need for instant purchase against the need for long-term performance. Stainless Steel Rope Clips made to strict standards from Grade 304 or 316 materials are reliable ways to terminate cables in a wide range of difficult situations. Procurement workers can make choices that improve safety, durability, and total cost of ownership by learning about the properties of materials, the right way to install them, and how to evaluate suppliers. Buying high-quality parts is a smart investment that pays off in the long run with longer service life, less maintenance, and reliable performance even in harsh environments.

FAQ

How do I select between Grade 304 and 316 stainless steel for my application?

Choose based on how the surroundings will affect you. Grade 304 is good for general outdoor uses, architectural projects, and commercial buildings that are exposed to the weather. Grade 316 is the best choice for any job that will be in saltwater, near the coast, with chemicals, or with de-icing salt. The molybdenum in 316 makes it much more resistant to corrosion caused by chloride, which would happen to 304 in these conditions.

Can stainless steel clips be used for overhead lifting applications?

When used high, only Stainless Steel Rope Clips that are approved and certified for lifting should be used. There are a lot of commercial wire rope clips that meet DIN 741 standards for general fastening, but they don't have the testing, certification, or Working Load Limit ratings that are needed for lifting. Before using any rigging hardware for overhead loads that could cause injury or damage to property, you should always check the lifting ratings and make sure the right certifications are in place.

What causes stainless steel fasteners to seize during installation?

Because there is a lot of friction when tightening stainless steel, it tends to gall, which is a type of cold welding between threaded surfaces. When the material is worked, it gets harder, but it's not as hard as hardened steel, so tiny surface particles can tear and move between threads that are mated. To avoid galling, use anti-seize chemicals before putting the parts together and don't tighten too quickly, which can cause too much heat.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Stainless Steel Rope Clip Solutions

To get reliable wire rope fastening parts, you need to work with a Stainless Steel Rope Clip manufacturer that cares about quality and customer service. FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years, and our ISO9001 and CE certifications show that we take quality control very seriously. Our large collection of more than 1,000 product specs lets us quickly fill standard orders, and our customization options let us meet the specific needs of each project over the course of 7–15 days. Email our technical team at sales@flaindustrial.com to talk about your unique application needs and get advice on how to choose the right materials and how to specify them.
