Why Mech Grooved Fittings Should Be Your First Choice for Plumbing?

When plumbers choose mech grooved fittings for their projects, they can solve the problems that keep coming up: long installation times, uncertain leak risks, and high labour costs. When compared to traditional methods, these mechanical connection systems cut installation time by about 60% because they don't need to be welded or threaded. Grooved pipe couplings are made from ductile iron that meets ASTM A536 standards. They have a tensile strength of over 65,000 psi and can handle heat expansion and seismic movement. When purchasing managers look for low-cost options that keep the structure of fire safety, HVAC, and industrial water systems strong, mechanical grooved fittings are the standard that is used on all global infrastructure projects.

Understanding Mech Grooved Fittings: Features and Benefits

Design Architecture and Material Composition

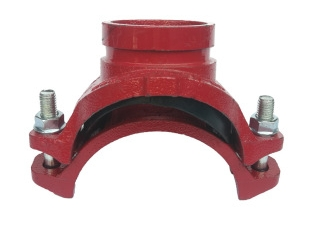

There are three main parts to a mechanical grooved fitting: the housing segments, which are made of ductile iron Grade 65-45-12; the elastomeric gasket that fits inside the housing cavity; and the bolted closing mechanism. As part of the pipe preparation process, a circular groove is cut or rolled into the pipe near the end. This groove can be thin-walled or heavy-walled. Once the housing segments are in place around the gasket and pipe, the bolts are tightened to push the gasket into the groove. This creates multiple seal points that can take up to 500 PSI of pressure, depending on the pipe's diameter and wall thickness.

Choice of material has a direct effect on performance and life. When it comes to impact protection, ductile iron is better than grey iron alternatives. This is especially useful in places with a lot of vibration, like pump rooms or seismic zones. When used with epoxy coatings or hot-dip galvanisation, carbon steel options that meet ASTM A536 standards offer better protection to corrosion. Different types of gasket materials are used for different purposes. EPDM compounds can handle water services at temperatures ranging from -20°F to 230°F, while nitrile formulas are better for oil-based media and chemical processing environments.

Core Operational Advantages

The most obvious benefit that can be measured is the speed of installation. A two-person crew can make a grooved connection that's 6 inches wide in about four minutes. This is compared to 20 to 30 minutes for a soldered joint of the same size that needs to cool down and be inspected afterward. This efficiency directly leads to lower labour costs, which is especially important for large-diameter pipes where standard methods need specialised tools and longer work hours for the crew.

Pressure ratings and the strength of the seals meet or go beyond normal connection standards. The gasket design makes a compression seal that works better under pressure. Before shipping, the system's rated working pressures were tested hydrostatically at 150% capacity. Because of this, grooved systems work very well in fire safety situations where static pressure stays the same for years but needs to change right away when an emergency button is pressed.

Long-term practical value comes from making maintenance accessible. Each curved connection is a union point that lets parts of the system be taken apart and put back together again without cutting the pipe or messing up connections next to each other. This feature cuts down on maintenance downtime by a huge amount for projects like replacing equipment, fixing valves, or expanding the system that would normally need to replace whole sections.

Comparing Mech Grooved Fittings to Other Connection Types

Performance Against Welded Connections

Welded joints have been the standard for decades in industrial pipes because they are thought to last longer and be stronger. But the actual limits become clear as the project is carried out. For welding, you need certified tradespeople whose hourly rates are much higher than the average wage. Each joint also needs fire watchers, hot work permits, and ventilation factors for areas that are already occupied. Post-weld radiographic inspection takes more time and costs more money, especially for food- or drug-grade uses that need to check the integrity of the whole weld.

When it comes to safety, mechanical connections are much better. Welding activities create fire risks, toxic fumes, and burn risks that raise insurance costs and make it harder to follow the rules. These risks are completely eliminated by grooved systems, which can be installed in busy facilities without stopping production or moving people around. The lower safety risk profile is often the deciding factor in places like schools, hospitals, and factories that follow strict safety rules.

Advantages Over Flanged Systems

Flanged connections make it easier to take things apart, but they take up a lot more room and weigh a lot more. A 12-inch, 150-pound flange pair with gasket and bolts weighs about three times as much as a similar grooved coupling. This means that more support structures and work must be done to install it. Because flanges have a bigger bolt circle width, they also need more space between them, which can make installations harder in crowded mechanical rooms or retrofit situations where access is limited.

Statistics on preventing leaks show that curved systems are better. For flanged connections to work, the torque patterns on 12 to 24 separate screws must be exact. This means that if any bolt comes loose because of vibration or temperature changes, the connection could fail in more than one place. Grooved couplings and mechanical grooved fitting only need two or four bolts, and visual pad-to-pad proof makes sure they are installed correctly. The compression of the gasket spreads the sealing force evenly around the whole circumference, even if the pipes are slightly out of alignment.

Comparison with Other Mechanical Couplings

There are many types of mechanical couplings on the market, and their performance varies depending on how the housing is designed, how the gasket is made, and the global support infrastructure. When procurement teams look at suppliers, they should make sure that they follow the ANSI/AWWA C606 groove dimensions to make sure that Products" target="_blank" style="color:blue" >products from different makers can work together. Objective quality standards are set by certifications like UL/FM rating for fire protection uses, VdS approval for European markets, and LPCB recognition for insurance compliance.

Where a product is made affects both its cost and how reliably it is delivered. Tighter dimensional tolerances are achieved by manufacturers who use advanced casting techniques and automatic machining centers. This lowers gasket wear and increases service life. Premium goods are different from cheaper ones that might meet basic requirements but won't last long. They are checked for quality using methods like spectroscopic material verification, hydrostatic pressure testing, and gasket compression set analysis.

Installation and Maintenance Guide for Mech Grooved Fittings

Pre-Installation Requirements and Tool Selection

Proper pipe preparation determines connection reliability. Cut pipe ends must be square within 1/16 inch per foot and deburred to prevent gasket damage. Roll grooving machines should be calibrated weekly to maintain groove depth within specification tolerances, typically 0.085 to 0.100 inches depending on pipe schedule. Cut grooving requires carbide-tipped tools and coolant application to achieve clean groove walls without burrs that could compromise gasket seating.

Gasket inspection before installation prevents future leak incidents. Visual examination should confirm no cracks, tears, or contamination on the sealing surfaces. The gasket must seat fully within the housing groove, with no twisting or pinching that could create leak paths. Temperature conditions during installation matter significantly: gaskets installed in cold weather below 40°F should be warmed to room temperature to ensure proper flexibility and compression characteristics.

Assembly Process and Verification

The installation sequence follows a straightforward protocol that minimizes error potential. Position the gasket around one pipe end, ensuring the gasket lip faces outward toward the groove. Slide the mating pipe into position, engaging both grooves with the gasket. Place housing segments around the assembly, aligning bolt holes and confirming the gasket remains properly seated. Insert bolts with washers and hand-tighten in a star pattern before final torque application.

Visual inspection provides immediate installation verification. The metal pads on the housing segments must contact completely around the entire circumference, confirming adequate bolt torque and proper gasket compression. Gap measurements between pads should not exceed manufacturer specifications, typically 1/8 inch maximum. Any visible gaps indicate insufficient tightening or potential gasket displacement requiring disassembly and correction before system pressurization.

Maintenance Protocols and Troubleshooting

Routine inspection schedules should examine connections quarterly during the initial year and annually thereafter for stable systems. Visual checks focus on housing pad contact, bolt tightness, and any evidence of weeping or staining indicating gasket degradation. Vibration-prone installations near pumps or compressors may require semi-annual inspections due to accelerated bolt loosening potential.

Troubleshooting leak incidents involves systematic diagnosis. Minor weeping often indicates bolt torque loss, correctable by retightening to specification. Continuous leaking despite proper pad contact suggests gasket damage or groove dimension problems requiring disassembly and component replacement. Directional leaking from one side typically reveals pipe misalignment or foreign material trapped under the gasket, both correctable through disassembly and cleaning.

Procurement Insights: How to Source Quality Mech Grooved Fittings

Supplier Qualification and Authentication

Identifying qualified suppliers requires verification of manufacturing capabilities and quality management systems. ISO 9001 certification demonstrates documented quality control procedures, but procurement teams should request specific evidence of material testing protocols, dimensional inspection procedures, and pressure testing practices. Suppliers maintaining in-house metallurgical laboratories and coordinate measuring machines typically deliver more consistent quality than distributors relying solely on vendor certifications.

Technical support capabilities distinguish premium suppliers from commodity vendors. Engineering teams able to provide 3D CAD models, pressure drop calculations, and system layout assistance add significant value during design phases. Responsive quotation turnaround within 24-48 hours indicates adequate staffing and inventory management systems, particularly important for projects with compressed procurement schedules or emergency replacement requirements.

Order Planning and Lead Time Management

Bulk ordering strategies should balance inventory carrying costs against volume pricing advantages. Common-size mech grooved fittings in the 2-inch through 6-inch range typically stock readily with 2-3 week delivery windows, while large-diameter fittings above 12 inches may require 6-8 weeks for casting and machining. Custom configurations including non-standard materials or special coatings extend lead times an additional 4-6 weeks, requiring advance planning for project-critical path scheduling.

Packaging quality impacts delivered product condition, particularly for overseas shipments. Premium suppliers utilize wooden crates with desiccant packets for moisture control and individual gasket bags preventing UV exposure during transit. Inspection upon receipt should verify coating integrity, gasket condition, and absence of casting defects before accepting delivery and releasing payment.

Certification Requirements and Compliance Documentation

Application-specific certifications carry regulatory and insurance implications. Fire protection systems require UL or FM approval demonstrating compliance with NFPA standards for sprinkler installations. European projects demand CE marking and potentially VdS or LPCB certifications depending on national requirements. Municipal water systems may specify NSF-61 certification for potable water contact, while offshore or marine applications often require ABS or DNV approval.

Warranty terms and technical support commitments provide risk mitigation for long-term projects. Standard warranties covering material defects for 12-18 months from delivery offer baseline protection, while extended warranties up to five years indicate manufacturer confidence in product longevity. Access to application engineers for troubleshooting and field support becomes particularly valuable during commissioning phases when installation questions arise.

Why Leading Brands and Companies Prefer Mech Grooved Fittings?

Industry Adoption and Performance Validation

Major infrastructure projects globally have standardized on grooved coupling technology based on documented performance and lifecycle cost advantages. High-rise commercial developments utilize grooved systems for fire protection risers and HVAC distribution, valuing the installation speed that keeps construction schedules on track. Data centers and pharmaceutical manufacturing facilities choose grooved connections for the vibration isolation properties protecting sensitive equipment and the maintenance accessibility enabling rapid system modifications without production shutdowns.

Mining and industrial operations appreciate the adaptability to challenging conditions. Grooved couplings accommodate the angular deflection and thermal movement inherent in above-ground piping exposed to weather extremes, while the mechanical connection eliminates spark hazards in explosive atmospheres. Municipal water treatment facilities have adopted grooved technology for large-diameter process piping where the weight savings and installation efficiency provide substantial cost advantages over flanged alternatives.

Innovation Trajectory and Future Development

Ongoing product development focuses on expanding application capabilities and improving installation efficiency. Recent innovations include pre-assembled coupling designs reducing installation time further, enhanced gasket compounds extending temperature ranges for steam service applications, and corrosion-resistant housing materials for marine environments. Digital technologies including RFID tags embedded in housings enable asset tracking and maintenance scheduling through facility management systems.

Environmental considerations drive coating technology advancements. Water-based epoxy formulations eliminate volatile organic compounds while maintaining corrosion protection performance, and powder coating applications provide uniform coverage exceeding traditional paint systems. Recycled content in ductile iron production addresses sustainability goals without compromising mechanical properties, aligning with green building certification requirements and corporate environmental commitments.

Conclusion

Mechanical grooved coupling systems and mechanical grooved fitting deliver measurable advantages across installation efficiency, system reliability, and lifecycle economics that traditional connection methods cannot match. The combination of rapid installation reducing labor costs by 30-50%, pressure ratings up to 500 PSI ensuring safety margins in demanding applications, and maintenance accessibility minimizing downtime creates compelling value for procurement professionals. Material quality from ductile iron conforming to ASTM A536 standards, comprehensive testing protocols, and global certification compliance provide the reliability assurance required for critical infrastructure investments. Hardware distributors gain diverse SKU options and consistent quality supporting customer satisfaction, while contractors benefit from simplified installation processes that keep projects on schedule and within budget.

FAQ

Can grooved fittings work with different pipe materials?

Grooved coupling systems accommodate carbon steel, stainless steel, ductile iron, and certain plastic piping materials provided the pipe wall thickness supports groove formation. Roll-grooved applications suit thin-wall schedules while cut-grooving handles heavy-wall pipe. Compatibility verification requires confirming groove dimensions meet ANSI/AWWA C606 standards regardless of base material.

What factors influence bulk order lead times?

Standard-size fittings between 2-inch and 8-inch diameter typically ship within 2-4 weeks. Large-diameter fittings above 12 inches require 6-8 weeks for casting and machining. Custom specifications including special coatings or non-standard materials extend timelines an additional 4-6 weeks. Container consolidation and international shipping add 3-4 weeks for overseas delivery.

How do lifecycle costs compare with welded connections?

Installation labor savings of 30-50% provide immediate cost advantages. Maintenance accessibility reduces downtime expenses by 40% compared to welded systems requiring pipe cutting for repairs. Energy efficiency gains from reduced pressure drop through streamlined coupling designs lower operational costs over 20-year service lives, offsetting any initial material cost differences.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Mech Grooved Fitting Solutions

Procurement managers seeking dependable mechanical grooved fitting suppliers will find FLA Industrial & Trading Co., Ltd. brings nearly 40 years of manufacturing expertise across hardware tools and pipe mech grooved fitting systems. Our production facilities maintain ISO9001, CE, and UL/FM certifications, delivering quality assurance backed by partnerships with Fortune Global 500 companies. The product line spans 1-inch through 48-inch diameters in ductile iron and carbon steel, with pressure ratings from 300 to 500 PSI and finish options including epoxy coating, hot-dip galvanization, and painted surfaces meeting ANSI and AWWA standards.

Technical support teams provide 24-48 hour quotation turnaround and engineering assistance from initial design through installation troubleshooting. Custom solutions accommodate non-standard dimensions, specialized materials, and modified outlet configurations meeting unique project specifications. For bulk orders, competitive pricing structures and reliable delivery schedules support contractor timelines and distributor inventory requirements. Contact our team at sales@flaindustrial.com to discuss your project requirements and request technical specifications aligned with your system parameters.
