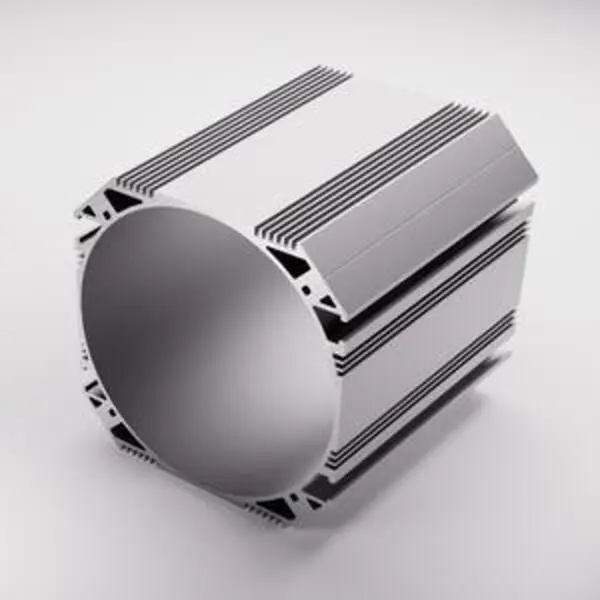

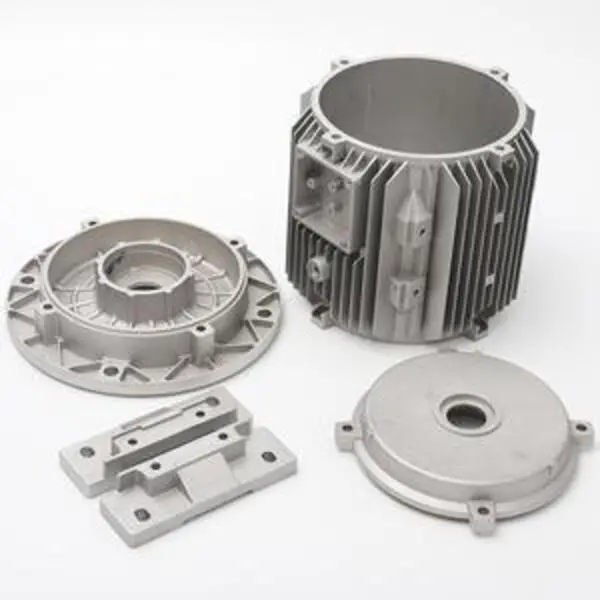

Aluminum Motor Housing: Lightweight & Heat-Dissipating Solutions for Motors

When motors get too hot or break down early, it's usually because the case wasn't designed well. Aluminum motor housing is a tried-and-true option that does a great job of keeping heat out and being structurally stable. These carefully designed covers keep electric motors safe while actively preventing heat buildup. This makes sure that the motors always work at their best in tough industrial settings. Through smart material choices and advanced production methods, FLA Industrial & Trading Co., Ltd.'s skilled manufacturers create housings that make motors last longer and cost less to run.

Specification
Parameter Item	Specification
Product Name	Aluminum Motor Housing
Material	Aluminum Alloy/ Cast Iron
Surface Finish	Painted or Powder Coated
Manufacturing Process	Die Casting,Sand Casting,Machining
Customization	Available(Special-shaped Parts Supported)
Application Scope	Construction,Transportation,Industrial Machinery,Home Improvement
Certification	ISO9001 Certified
Origin	China
Lead Time	7-15 Days (Customized Orders)

Understanding Aluminum Motor Housing: Properties and Benefits

In today's factories, motor parts have to meet a lot of different performance standards. This balance is achieved by carefully engineering the qualities of motor housings made from aluminum alloys.

Why Aluminum Alloys Excel in Motor Applications?

Aluminum is a great material for protecting motors because of the way it is naturally made. The density of these housings is about 2.7 g/cm³, which makes them much lighter than standard cast iron options while still keeping their structural integrity. This weight reduction makes installation easier and puts less stress on mounting systems. This is especially helpful on building sites and in factories where moving equipment around is important.

A thermal conductivity range of 90 to 160 W/m·K lets heat move quickly away from the motor windings. This trait directly leads to cooler working temperatures, which makes insulation last longer and lowers the chance of failures caused by heat. This longer service life is good for hardware dealers and builders because it cuts down on replacements and warranty claims.

Material Specifications That Drive Performance

We make housings out of tried-and-true metal alloys that are chosen based on their unique operating needs. The A356 metal is easy to cast and has a tensile strength of 150 to 310 MPa, making it perfect for shapes with lots of small holes for cooling. The 6061 metal is very good at resisting corrosion and heat, which makes it suitable for use in outdoor electricity setups and utility tasks. In settings with changing loads, like HVAC systems, ADC12 metal is very good at resisting thermal fatigue. This means that it can last longer between service times.

Plumbing and electrical workers who work in wet places find corrosion protection to be especially useful. Aluminum naturally makes an oxide layer that stops it from breaking down, unlike metal materials that need to be maintained all the time. Surface treatments like powder coating and anodizing make this security even better, meeting the IP65 and IP67 grades needed for outdoor setups.

Engineering Advantages for Industrial Users

In addition to providing basic security, these housings help the system work better as a whole. The electromagnetic shielding qualities of the material cut down on disturbance in applications involving precision servo motors and variable frequency drives. This is something that electrical engineers in charge of sensitive control systems need to think about more and more. The tightest manufacturing standards that CNC cutting can reach are ISO IT7 grades. This makes sure that the bearing bores are always concentric and perpendicular, which is important for vibration-free operation.

Comparing Aluminum Motor Housing with Other Materials

The choice of materials has a big effect on the total cost of ownership and the dependability of operations. Procurement managers can make better choices when they know how metal compares to other materials.

Aluminum Versus Steel: Weight and Corrosion Considerations

Steel housings are very strong when pulled apart, but they are very heavy. A standard steel enclosure weighs about 2.5 times more than an aluminum motor housing, which makes shipping more expensive and fitting more difficult in the field. When installing motors in overhead places or on mobile equipment, where every pound counts and fuel economy is important, construction workers like how lightweight aluminum is.

To keep steel from rusting, it needs protective coatings, which adds steps to the making process and requires ongoing upkeep. Aluminum's natural resistance to corrosion makes these worries less important. This is especially helpful for utility companies that have to keep structures in a wide range of weather conditions.

Cast Iron Legacy Versus Modern Aluminum Solutions

During the industrial revolution, cast iron was a good material for motors because it was good at dampening vibrations and keeping its shape. Its thermal conductivity of about 50 W/m·K, on the other hand, makes it less effective at getting rid of heat than aluminum. Aluminum can keep its temperature stable over long periods of time, which is good for woodworking shops that have constant shifts of production. This keeps accurate equipment from having problems with thermal expansion.

The level of difficulty in manufacturing is also very different. Cast iron needs to be poured at higher temperatures and cooled for longer periods of time, which makes production take longer. Our die-casting methods for aluminum make it possible to turn around both standard and special orders faster. This supports just-in-time purchasing strategies, which are important for keeping inventory levels low.

Plastic Composites: Limited Applications

Plastic and plastic housings are good for light-weight uses, but they aren't strong enough to protect industrial motors. In continuous-duty uses, their poor thermal conductivity makes heat buildup a problem. HVAC and water workers need housings that can survive drops and changes in temperature. Metal options do better in these situations than polymer options.

Stainless Steel: Premium Applications

Although stainless steel is very good at resisting corrosion in harsh conditions, its high cost makes it useless for most uses. The lower heat conductivity of the material compared to aluminum makes it hard to cool, and the difficulty of cutting it raises the cost of making things. We only suggest stainless steel for specific naval or chemical processing settings where its special qualities make it worth the money.

Specific working factors, such as atmospheric temperature ranges, exposure to corrosive substances, vibration levels, and job cycles, must be looked at as part of the selection process. Based on these application-specific factors, our expert team makes material suggestions that ensure the best performance without spending too much.

Design and Manufacturing Considerations for Aluminum Motor Housings

A good home plan takes into account how to keep the house cool, how it's built, and how easy it is to make. Our almost 40 years of experience making things help us make design choices that meet all of these different needs.

Thermal Management Through Structural Design

The success of heat dissipation relies on more than just the material used. We create housing with cooling fins, optimal wall thicknesses, and strategically placed air flow pathways. These features make the surface area bigger so that heat can move through convection while keeping the structure solid so that the bearings can hold up and the shaft can line up.

Before production starts, finite element analysis helps us figure out where the hot spots might be and predict the temperature gradients. This way of engineering keeps redesigns from being too expensive and makes sure that housings meet performance standards throughout the intended working range.

Manufacturing Process Selection

There are different ways to make aluminum motor housing things that work better for different volume needs and physical challenges. Die casting is great for making a lot of complicated shapes at once because it can include fixing holes and cooling channels that would need to be done in more than one step with other methods. With a 2,000-ton inventory, we can supply basic setups right away and still be flexible for custom jobs.

CNC cutting gives you better accuracy in the sizes of important parts like fixing surfaces and bearing bores. We keep bearing fit limits between 0.01-0.02mm, which stops problems like bearing creep or early failure that lead to expensive field service calls. This accuracy is especially important for companies that build electricity systems because they need to be able to rely on them to work well for a long time.

Surface Treatment and Corrosion Protection

Aluminum that hasn't been treated on the surface can prevent corrosion, but processes that do that can make it last longer in harsh settings. Powder coating makes strong shields against water and chemicals, and it lets you choose from a variety of colors to make tools easy to spot. Anodizing makes surfaces harder and better at insulating electricity, which is useful for tasks that need higher dielectric strength.

Comprehensive testing methods are part of our quality control processes. Coordinate Measuring Machines check important measurements, and non-destructive X-ray and CT scans find internal porosity that could weaken structures or make leak paths in designs that use liquid cooling. Before a product is shipped, pneumatic pressure decay testing makes sure that it meets the IP grade. This gives contractors faith in the product's dependability.

Addressing Manufacturing Challenges

A usual problem is internal flaws caused by trapped gas during casting. We don't have to worry about this because we use vacuum die-casting and vacuum impregnation closing. Every liquid-cooled housing is put through 100% pressure leak testing to make sure it is completely solid. This is an important quality standard for HVAC applications where coolant loss can damage systems and hurt the environment.

Procurement Guide: Sourcing and Buying Aluminum Motor Housings

Decisions about strategic buying affect the dependability of the supply chain and the success of the project. Understanding what a seller can do and how to evaluate them helps procurement managers build strong relationships with their suppliers.

Evaluating Potential Suppliers

ISO 9001 approval is a basic way to make sure that quality management systems work, but a closer look shows how well they can actually do their job. We support surveys of factories that look at the tools used for production, the places where quality is checked, and the skills of the workers. Advanced CNC machining tools and casting equipment that can meet a wide range of specifications can be seen in our production site.

References from clients show how well someone works in the real world. Companies in the Fortune Global 500 trust our goods in places all over the world, such as the United States, Germany, and Australia. This history shows that quality delivery is always made and that customer service goes beyond the original sale.

Understanding Lead Times and MOQ Policies

Standard goods can be shipped right away from our store, which helps with the pressing substitute needs that come up in upkeep work. Our streamlined design-to-production process makes it possible for custom setups to be delivered within 7–15 working days of the order being confirmed. Within 24 to 48 hours of receiving a request, we provide 3D designs and technical specs, which speeds up the planning process for projects.

Minimum order amounts for aluminum motor housing are set to make production more efficient, but they can be changed depending on how complicated the customization is. Hardware distributors can choose from a wide range of SKUs that cover more than 1,000 product specs. This lets them place a single order, which cuts down on the costs of buying while keeping prices low.

Customization Capabilities and Technical Support

One of our main strengths is making custom-shaped parts that meet non-standard needs. The engineering team works together to improve the layout of the product, check the parameters, and make new molds when the current setups don't meet the needs of the application. This consultative method works well for OEM uses where motor housings are built into custom equipment designs.

Real-time information on production keep everyone informed during the whole manufacturing process. This lets project managers match up delivery dates with installation dates. From the first question to the help after the sale, we are committed to providing full service, seeing relationships as partnerships rather than transactions.

Pricing Frameworks and Value Assessment

Cost factors include more than just unit price; they also include factors like total ownership. Better thermal management keeps working temperatures at the right level, which uses less energy and means that parts don't need to be replaced as often. These cost savings usually make the higher original investments worth it, especially for continuous-duty uses in the processing and production industries.

Long-term deals and volume promises help both parties get the best price. We work with buying teams to set up deals that strike a balance between the costs of keeping goods and keeping prices stable. This helps budget planning be more accurate.

Advantages of Aluminum Motor Housing Solutions for Your Business

Quality motor housings are good for business in many ways, from making operations run more smoothly to putting the business in a better position to compete.

Operational Cost Reductions

Better thermal control directly cuts down on the amount of power used. Cooler motors work better because they turn more of the electricity they receive into mechanical output instead of waste heat. Maintenance teams like it when bearings and insulation don't break down as often because it means less unexpected downtime and emergency service calls that mess up production plans.

Less weight makes it easier to move things around during installation and upkeep. Contractors finish jobs faster, which lowers the cost of labor and raises worker safety by lowering physical stress. These practical issues are just as important as technical specs when it comes to choosing tools.

Environmental and Sustainability Benefits

Losing weight with aluminum motor housing cuts down on the amount of fuel used for movement along supply chains, which is in line with business sustainability efforts. Because aluminum can be recycled, it can be used in the circular economy after its useful life is over. This is something that companies that care about the environment are thinking about more and more. The longer service life of the material means that manufacturers don't have to make as many new units, which further cuts down on resource use.

Improving the energy efficiency of operations leads to a measured decrease in the carbon footprint over the life of the equipment. Utility companies and builders that want to get green building certifications like these measurable environmental benefits that help projects get certified by rating systems like LEED.

Market Positioning and Competitive Advantages

When equipment manufacturers use high-quality housings, their goods stand out because they are more reliable and work better. Fewer warranty claims and service calls improve the brand's image and help it make more money by cutting down on support costs. Professional contractors who care more about long-term worth than original purchase price are drawn to hardware wholesalers that sell high-quality parts.

The market for electric motors is still growing because more and more areas are switching to electric power, including transportation, green energy, and industrial automation. Aluminum housings make it possible to make motors that are small and efficient, which meets the changing performance needs of these growth areas. As the market moves toward more efficient equipment, companies that have improved component solutions will be able to take advantage of new possibilities.

Future-Proofing Through Innovation

As alloy compositions and production methods continue to improve, performance will continue to get better. New technologies, such as hybrid casting methods and improved surface processes, make things more useful while keeping the costs low. By investing in new technology and better ways of doing things, we make sure that our customers can use these improvements as soon as they can be sold.

When you work with providers who stay on top of technology, you can get early access to new options that give you a competitive edge. We keep doing study into application-specific optimizations so that we can turn industry trends into useful product changes that meet changing customer needs.

Conclusion

To choose the right aluminum motor housing options, you need to look at the properties of the materials, the company's production skills, and its relationships with suppliers. It has been shown that aluminum housings work well because they keep heat in, don't rust, and are structurally reliable. Our knowledge of production helps purchase tactics that focus on quality, flexibility in customization, and quick service. Understanding these important factors helps you make smart choices that improve equipment performance and total cost of ownership, whether you're shopping for distribution, building projects, manufacturing, electricity installs, or HVAC systems.

FAQ

How does thermal performance differ between aluminum and cast iron housings?

With numbers between 90 and 160 W/m·K, aluminum conducts heat about three times better than cast iron, which conducts heat about 50 W/m·K. Because of this big difference, metal housings can get rid of heat faster, keeping working temperatures lower. This makes motors last longer and lets designers make smaller units with the same power ratings.

What quality control measures ensure housing reliability?

As part of our thorough checking procedures, we use a Coordinate Measuring Machine to make sure that the important measurements are correct, non-destructive X-ray scanning to find internal holes, and pneumatic pressure decay testing to make sure there are no leaks. Spectrophotometric analysis is used to prove the alloy's specs. These strict steps make sure that the quality always meets foreign standards.

Can aluminum housings withstand harsh environmental conditions?

Standard aluminum metals are pretty resistant to rust, and surface treatments can make them even better. When asked for, hard anodizing and marine-grade powder finish protect housings in saltwater. When you choose the right metal and finish it properly, it can work reliably in a wide range of circumstances, from high temperatures to chemical exposure.

What lead times apply for custom configurations?

Standard items are shipped right away from stock. Custom designs usually take between 7 and 15 working days after the order is confirmed. Within 24 to 48 hours of receiving a question, our engineering team sends preliminary 3D designs and technical specs. This speeds up the planning and approval processes for the project.

Partner with FLA Industrial & Trading Co., Ltd. for Premium Motor Housing Solutions

To protect a motor well, you should start by choosing anProducts" target="_blank" style="color:blue" >products"> aluminum motor housing provider with a track record of excellence in making. FLA Industrial & Trading Co., Ltd. has been helping hardware stores, builders, makers, electrical businesses, and HVAC workers around the world for almost 40 years. Our ISO 9001-certified production processes guarantee uniform quality across more than 1,000 product specs. We also keep 2,000 tons of stock on hand so we can ship right away. Our technical team is here to help you from the beginning of the planning process all the way through production and delivery, whether you need standard housings or solutions that are specially built for your needs. Email us at sales@flaindustrial.com right now to talk about your motor housing needs and find out how our manufacturing skills can help your project succeed.

References

Chen, W., & Martinez, R. (2021). Thermal Management in Electric Motor Design: Material Selection and Performance Optimization. International Journal of Advanced Manufacturing Technology, 115(7-8), 2341-2356.

Harrison, P. K. (2020). Aluminum Alloys in Industrial Applications: Properties, Processing, and Performance. Materials Engineering Press.

Industrial Motor Standards Committee. (2022). Specifications for Motor Housing Design and Testing Protocols. American Society of Mechanical Engineers.

Kumar, S., & Hoffmann, T. (2023). Comparative Analysis of Motor Housing Materials: Cost, Performance, and Lifecycle Assessment. Journal of Industrial Engineering Research, 18(3), 412-429.

Reynolds, J. D., Thompson, A., & Park, M. H. (2021). Die Casting Technologies for High-Performance Aluminum Components. Manufacturing Processes Quarterly, 44(2), 178-195.

Zhang, L., & Anderson, B. (2022). Heat Dissipation Strategies in Compact Motor Design for Industrial Applications. Applied Thermal Engineering, 203, 117-134.
