How Fire Protection Flanged Valves Improve Industrial Fire Control Networks
2026-08-06 10:21:49

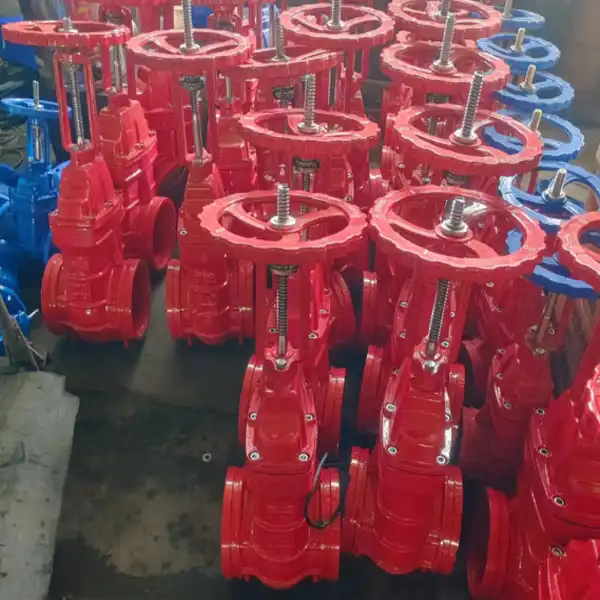

Fire protection flanged valves serve as critical gatekeepers in industrial fire suppression systems, directly improving network reliability and emergency response effectiveness. These specialized components utilize robust flanged connections and resilient seating mechanisms to deliver instant isolation and flow control when fire emergencies strike. By combining corrosion-resistant materials—cast iron, ductile iron, or carbon steel—with precision engineering and strict certifications like UL and FM approval, they ensure dependable operation even after years of dormancy. This translates into enhanced system integrity, reduced maintenance downtime, and compliance with stringent safety regulations that protect both facilities and personnel.
Specifications |
||
| Model(DN) | Valve Body Type and Rod Weight (kg) | Valve Body Length |
| DN40 | National Standard Medium Body Steel Rod,5.5 kg | Approx.14.3cm |
| DN40 | National Standard Large Body Steel Rod,7.5 kg | Approx.16cm |
| DN50 | National Standard Body Steel Rod,6.5 kg | Approx.17.3cm |
| DN50 | National Standard Medium Body Steel Rod,7.5 kg | Approx.17.5cm |
| DN50 | National Standard Large Body Steel Rod,9 kg | Approx.17.2cm |
| DN65 | National Standard Body Steel Rod,7.5 kg | Approx.18.5cm |
| DN65 | National Standard Medium Body Steel Rod, 8.5 kg | Approx.18.6cm |
| DN65 | National Standard Large Body Steel Rod, 10.5 kg | Approx.18.5cm |
| DN80 | National Standard Body Steel Rod,9 kg | Approx.20cm |
| DN80 | National Standard Medium Body Steel Rod, 10.5 kg | Approx.20cm |
| DN80 | National Standard Large Body Steel Rod,12 kg | Approx.19.7cm |
| DN100 | National Standard Body Steel Rod,10 kg | Approx.21.5cm |
| DN100 | National Standard Medium Body Steel Rod, 12.5 kg | Approx.22.5cm |
| DN100 | National Standard Large Body Steel Rod,17.5 kg | Approx.22cm |
| DN125 | National Standard Body Steel Rod,19 kg | Approx.21.5cm |
| DN125 | National Standard Medium Body Steel Rod,21 kg | Approx.25cm |
| DN125 | National Standard Large Body Steel Rod,24 kg | Approx.25cm |
| DN150 | National Standard Body Steel Rod,20 kg | Approx.26cm |
| DN150 | National Standard Medium Body Steel Rod,23 kg | Approx.26.2cm |
| DN150 | National Standard Large Body Steel Rod,29 kg | Approx.26.3cm |
| DN200 | 8-hole National Standard Body Steel Rod,36 kg | Approx.28cm |
| DN200 | 12-hole National Standard Body Steel Rod,36 kg | Approx.28cm |
| DN200 | 8-hole National Standard Medium Body Steel Rod,40 kg | Approx.28cm |
| DN200 | 12-hole National Standard Medium Body Steel Rod,40 kg | Approx.28cm |
| DN200 | 8-hole National Standard Large Body Steel Rod,50 kg | Approx.28.4cm |
| DN200 | 12-hole National Standard Large Body Steel Rod,50 kg | Approx.28.4cm |
| DN250 | National Standard Medium Body Steel Rod,70 kg | Approx.32.5cm |
| DN250 | National Standard Large Body Steel Rod,80 kg | Approx.32.5cm |
| DN300 | National Standard Medium Body Steel Rod,85 kg | Approx.35cm |
| DN300 | National Standard Large Body Steel Rod,111.5 kg | Approx.35cm |
| DN350 | National Standard Large Body Steel Rod, 150 kg | Approx.37.5cm |
| DN400 | National Standard Large Body Steel Rod, 175 kg | Approx.40.5cm |
| DN450 | National Standard Large Body Steel Rod, approx. 251.5 kg | Approx.430cm |
| DN500 | National Standard Large Body Steel Rod, approx.340 kg | Approx.45.5cm |
| DN600 | National Standard Large Body Steel Rod, approx.450 kg | Approx.50.7cm |
What Are Fire Protection Flanged Valves and How Do They Work?
Knowing how these Fire Protection Flanged Valves are made and how they work at their most basic level helps procurement workers and site engineers make decisions that meet safety requirements and stay within budget.
Core Functions and Mechanical Principles
Fire Protection Flanged Valves control the flow of water in special pipes for fire suppression. They do two very important jobs: they separate parts of the pipeline for repair and send water right away in an emergency. Bolted joints that meet ANSI B16.1 or EN 1092-2 standards make up the flanged connection. It makes safe, leak-tight seals that can handle pressures from 150 to 600 PSI. Flow is controlled by a flexible wedge or disc inside the valve body. When you turn the handwheel or use electricity to open or close the valve, the wedge moves across the flow path, opening or closing the passage. The wedge is usually covered in vulcanised rubber, which lets it squeeze around debris like rust particles or sediment and keep a bubble-tight seal even when conditions aren't ideal. This design solves a common problem: valves that stay closed for a long time can seize up because of corrosion or mineral buildup. The stainless steel stems and EPDM-encapsulated wedges make this risk less likely, so the valve works right away when it's needed the most.
Types and Industrial Applications
For different fire safety situations, different valve designs work best. Most fire water supply lines use gate valves, especially Outside Screw and Yoke (OS&Y) types. This is because their rising stems make it easy for emergency workers to see where the valve is located, which is very important. Butterfly valves are small options that can be used in places where room is limited, like underground systems with wall post indicators. Globe valves aren't used as often in fire systems because they drop pressure more quickly, but they do have some uses where precise flow throttling is needed. Each type has its own benefits: gate valves have the lowest flow resistance because they have a full-bore design; butterfly valves are cheaper to install on larger diameters; and globe valves are the best when you need to change the flow. In business buildings, factories, and public spaces, these valves are used in wet riser systems, hydrant networks, and Early Suppression Fast Response (ESFR) sprinkler installations. Which one to use depends on the system's pressure needs, the space that's available, and the most important operational factors.
Design Standards and Safety Certifications
Fire safety equipment that is suitable is different from regular industrial valves because it follows well-known standards. For UL 262 and FM Class 1120/1130 certifications, strict testing procedures are needed. These include hydrostatic shell tests at pressures up to four times the normal working pressure and seat leaking tests to make sure there are no bubbles. These approvals show that valves can survive harsh conditions without breaking or leaking too much. ISO 9001 certification shows that quality is managed in a planned way throughout the manufacturing process, and CE marking shows that the product meets European safety standards. The flange's measurements must match the current pipeline standards. In rigid fire networks, installation failures can be caused by misalignment as small as 2 mm. Our manufacturing process includes checking the casting, CNC machining for tight tolerances, overseeing the assembly, and applying a protective layer. This makes sure that every valve that leaves the plant meets these strict international standards. This all-around method to meeting standards protects your property and passes regulatory checks.
Key Benefits of Fire Protection Flanged Valves in Industrial Fire Safety Networks
Choosing the right valving option has a direct effect on how long the system lasts, how much it costs to maintain, and how ready it is for emergencies. For demanding fire protection tasks, Fire Protection Flanged Valves are the best option because they have a number of clear advantages.
Superior Corrosion Resistance and Durability
Industrial fire control systems have to deal with hard realities: water that doesn't move speeds up corrosion inside the system, and valves are exposed to extremes of temperature, wetness, and chemicals outside the system, and for Fire Protection Flanged Valve, when built with ductile iron that meets the standards of ASTM A536 Grade 65-45-12, it has much higher tensile strength and impact resistance than regular cast iron. When built with ductile iron that meets the standards of ASTM A536 Grade 65-45-12, it has much higher tensile strength and impact resistance than regular cast iron. The anti-corrosion layer, which is usually Fusion Bonded Epoxy (FBE) and is more than 250 microns thick according to AWWA C550, stops both internal tuberculation and outward rust. This dual protection makes the operational life much longer, which cuts down on replacement cycles and the downtime that comes with them. During quality control, high-voltage holiday testing finds tiny flaws in the coating before it is shipped, making sure that the whole thing is protected. These safety steps are very helpful in places like petrochemical plants and naval settings where corrosive conditions speed up wear and tear. The result is stable equipment that stays in good shape for decades, even when water sits in lines without being used for long periods of time between system tests.
Reliable Pressure Ratings and the ability to handle high temperatures
Fire control devices have to work under a lot of stress. During emergencies, fire pumps create high pressures (often 200 to 300 PSI) to move water up and down in tall buildings or to make up for friction losses in large networks of pipes. Standard working pressures of 150 to 600 PSI are enough to meet these needs, and tests at twice or four times these levels shows that the structure is solid. Resilience to temperature changes is also important. Valves must work in temperatures ranging from -20°C to 120°C, in both cold and hot places like fire zones. Strong materials and careful engineering work together to make sure that valves keep their mechanical and sealing integrity across this range. Full-bore gate valves don't block flow, so they keep pressure drops to a minimum, which is important for hydraulic calculations used in sprinkler system design. When system designers choose components, these solid performance traits directly lead to code compliance and operating trust.
How to Do Practical Maintenance
NFPA 25-compliant preventative maintenance is needed to make valves last longer. Visual checks done once a week or once a month confirm the position of the valve and find stem leaks. Once a year, operating spinning keeps internal parts from seizing by working them out. The flanged design makes it easier to take off and put on than welded designs, which cuts down on maintenance work and downtime during turnarounds. As part of routine tasks, packing gland nuts must be tightened if stem leaking is noticed. This is often an easy fix for loosening caused by installation shaking. For more thorough upkeep, check the anti-corrosion coating for damage, make sure the bolt torque on flange connections is correct, and make sure the tamper switches on OS&Y installs work properly. Each package of valves comes with paperwork that helps with tracking and planning upkeep. Setting up service agreements with knowledgeable providers will make sure that these details are always taken care of, keeping small problems from turning into expensive failures. These useful methods get the best return on investment while keeping the system ready.
Case studies from real life
A logistics warehouse that put in ESFR sprinklers put in flanged OS&Y valves at the bases of the risers and on the lines that let the fire pumps out. The full-bore design allowed for high K-factor sprinkler needs without causing too many pressure drops, and visual stem signs made it easier to do checks every three months. Over the course of five years, the facility had no valve failures and passed all regulatory inspections. In their wet riser system, a high-rise office block replaced old threaded valves with flanged ones. This made it easier to isolate floors for repair without having to remove whole vertical runs. The change cut down on repair time by 40% and stopped leaks at threaded connections that were happening all the time. These examples show real benefits, like higher reliability, easier maintenance, and better compliance, which sets organisations up for long-term operational success.
Comparing Fire Protection Flanged Valves with Other Valve Types
Figuring out the pros and cons of each Fire Protection Flanged Valve link helps you make the best choice for your business needs.
Mechanical Strength and Sealing Integrity
Flanged connections are stronger than threaded ones because the stress is spread across more bolts through bolted joints. They can handle higher pressures and shaking loads. Threaded valves can only handle smaller sizes and lower pressures, so they can blow out in big fire protection systems where links are put under a lot of force. Sandwiched between pipe flanges, wafer-style butterfly valves have small profiles but need to be carefully aligned and have the right length bolts. If they are not installed correctly, the sealing is compromised. Standard flanged valves have dedicated flange faces that make gasket compression consistent. This means that they will work reliably and leak-tightly even if the installation is slightly different. This toughness is especially important in industrial settings where machine vibration, temperature changes, and random hits can put a lot of stress on pipe systems. When system reliability can't be compromised, fixed flanged connections are the best way to protect against breakdowns that come up out of the blue.
How Easy It Is to Install and How Much Maintenance It Needs
Different types of valves are very different in how hard they are to install, and for Fire Protection Flanged Valve, for threaded connections to work, the threads must be engaged correctly and pipe dope must be applied, and installing larger sizes takes more work and special tools, while flanged valves are easier to line up because the bolt patterns and flange sides are obvious, which cuts down on the time and skill needed for installation. For threaded connections to work, the threads must be engaged correctly and pipe dope must be applied. Installing larger sizes takes more work and special tools. Because the bolt patterns and flange sides are obvious, flanged valves are easier to line up. This cuts down on the time and skill needed for installation. Butterfly valves have the smallest size, which is helpful when room is limited, but they need to be carefully centred between the flanges. Flanged designs are easier to maintain because all you have to do to remove a flanged valve is unscrew the connections. With threaded valves, you often have to cut and re-thread the pipes. In underground or confined spaces, this difference is very important because flanged valves make it easier to swap out parts quickly during emergency repairs. Even though globe valves allow for precise flow control, they require more upkeep because their internal shapes are more complicated and there are bigger pressure drops. By weighing these factors against operational goals, you can find the best option for your installation environment and the ability to maintain it over time.
Analysis of Cost-Efficiency
The initial costs of buying something are only one part of the total costs of owning. Threaded valves look like they are cheaper at first, but they require more work to put in bigger sizes and could leak in the future, which would cost a lot to fix. Flanged valves have moderate premiums, but they offer better long-term value because they require less upkeep, are easier to repair, and last longer. Butterfly valves are affordable, especially when it comes to bigger diameters. This makes them a good choice for projects that need to stay within a budget, as long as their working features meet the needs of the application. There are hidden costs that you should think about, like water damage, fines from the government, and system failures during emergencies that happen because of bad sealing. The cost of replacing an emergency valve during a fire protection system outage is much higher than the money that could have been saved by choosing cheaper options at first. When procurement teams look at the total cost of ownership, which includes installation, maintenance, longevity, and lowering risk, quality flanged valves always show that they are the best choice. This is especially true for critical fire protection applications where failure can have very bad results.
How to Choose and Procure the Best Fire Protection Flanged Valves for Your Network?
Making strategic choices about buying means finding the right mix between technical requirements, source dependability, and full support to meet both short-term needs and long-term operating success. Selecting high-quality Fire Protection Flanged Valves is essential for maintaining infrastructure integrity.
Material Options and Picking the Right Pressure Rating
The choice of material has a direct effect on how well and how long a valve works in certain environments. Cast iron is a cheap material that can be used in normal indoor settings with controlled temperatures and little corrosion. Due to its higher strength and resistance to contact, ductile iron is suggested for harsh industrial settings and places that are regularly put under physical stress. Carbon steel is good for places with a lot of pressure and a need for maximum mechanical strength. Each material has a different pressure rating, so make sure that the valves you choose meet or go beyond the highest working pressure of your system with enough safety margins. Operating temperature ranges must match the installation conditions. For example, materials must be able to stay flexible at temperatures below zero for outdoor installations in cold areas, while materials must be able to handle high temps in places near heat sources. The quality of the anticorrosion covering is also important. Fusion Bonded Epoxy with a layer of more than 250 microns offers better protection than regular paint finishes. Matching materials to environmental stresses keeps things from breaking down too soon and makes tools last a lot longer.
Quality assurance and following the rules for certification
In fire prevention devices, following the rules is a must. Check that the valves you're looking at have the right UL and FM certifications. These show that the Products" target="_blank" style="color:blue" >products were tested by a third party and passed strict safety standards. If a company has ISO 9001 certification, it means they manage quality in a planned way throughout the whole production process. The CE mark shows that a product meets European safety standards, which is important for foreign projects or buildings that need to meet standards from more than one country. Ask for proof that the certifications apply to the exact models of the products you're buying—general claims without proof should raise red flags. Quality assurance is more than just getting licenses. Find out about the methods for manufacturing control, such as material inspection routines, dimensional verification processes, and hydrostatic testing procedures. Suppliers who provide detailed quality control paperwork and the ability to track products show that they care about the purity of the products they sell. This makes it easier to buy things and makes sure that the valves will work reliably for their whole life, which protects your building and passes regulatory checks.
Checking out suppliers and customer service after the sale
Choosing a supplier has a big effect on how the procurement works out, and for Fire Protection Flanged Valve, look beyond the product specs to get a sense of the general skills and dependability of the provider, and responding quickly is important, with suppliers who answer questions about price, technical specs, and customisation within 24 to 48 hours helping people make decisions more quickly. Look beyond the product specs to get a sense of the general skills and dependability of the provider. Responding quickly is important. Suppliers who answer questions about price, technical specs, and customisation within 24 to 48 hours help people make decisions more quickly. Customisation is useful when standard goods don't perfectly meet the needs of the application. For example, non-standard measurements, special pressure ratings, or changed designs can be used to solve specific problems. Full technical support from the first design meeting to installation advice is very helpful, especially for complicated projects or businesses that don't have a lot of fire protection experts on staff. Warranty services, installation help, and on-time delivery are all parts of after-sales support. Late shipments mess up project schedules and raise costs. Check a supplier's track record by calling sources and looking at how well they've done on similar jobs in the past. Manufacturers that have been around for a long time, like FLA Industrial & Trading Co., Ltd., offer stability and institutional knowledge that newer companies can't match. This all-around review method lowers the risk of buying and builds relationships that go beyond single transactions.
Ensuring Optimal Performance and Safety: Maintenance and Installation Best Practices
During the working life of a Fire Protection Flanged Valve, its reliability, system compliance, and emergency readiness are all directly affected by how well it was installed and how often it is maintained.
Protocols for routine inspections
Systematic check plans that are in line with NFPA 25 standards keep valves ready and find problems before they get worse. Visual checks should be done once a week or once a month to confirm valve position using OS&Y stem indicators, find obvious leaks, and make sure tamper switches work properly. Every year, practical testing fully cycles valves through full open-close processes while they are under pressure. This makes sure that all the internal parts are free and working. Watch the operation during these cycles for strange resistance, grinding sounds, or jerky movement that could mean internal wear or rust. Keep a record of every test and check you do. This will help with compliance audits and help you find trends that could mean a part is wearing out. Pay close attention to the packing gland areas. Small stem leaks can usually be fixed by carefully tightening the gland nuts. However, leaks that don't go away could mean that the packing material is wearing out and needs to be replaced. Temperature changes and vibrations can loosen fasteners over time, so flange connections need to have their bolt torque checked on a regular basis. These preventative steps find problems before they get too bad, so maintenance can be planned instead of fixes having to be done quickly when things go wrong.
Techniques for Stopping Corrosion
Even with protective layers, rust can't break down valve integrity without constant attention. Check the coating surfaces for chips, scratches, or cracking that could mean the coating is failing. Fix any damage right away by either recoating the whole thing or fixing the damage in one place. When water isn't moving through a system, regular flow exercises stop minerals from building up and microbes from growing, which can lead to internal corrosion. If you can, keep an eye on the chemistry of the water because pH changes can speed up corrosion even through protective layers. Outside settings can also be dangerous. To get rid of built-up dirt, salt deposits, or chemical residues, outdoor systems should be cleaned regularly. If you live near the coast or an industrial area where corrosives are in the air, you might want to add extra protection like weather screens or extra paint layers. Keep records of the coating's specs and when it was applied. This will help you make choices about future upkeep and replacement. These strategies for preventing problems make valves last a lot longer, which saves money on replacement costs and keeps the system reliable.
Best Practices for Installation
Correct installation sets the stage for long-lasting, effective operation. Check that the flange standards on the valves match the standards on the existing pipes. Trying to force ANSI and PN-rated parts that don't match leads to alignment issues and leaks. Use gasket materials that are rated for the temperatures and pressures needed for fire protection. Make sure the gaskets are properly compressed and don't overtighten the bolts, which can damage the gaskets or bend the flanges. By following star-shaped bolt tightening steps, you can make sure that the seal is compressed evenly and that stress is not distributed unevenly. Place OS&Y valves so that the stems can be seen and used. Avoid putting them in places where the stems can't move freely. Make sure there is enough support for the weight of the valve—flanged valves are heavy parts that need the right piping support to keep connections from being stressed. Before installing valves, flush the pipelines well to get rid of any construction debris that could damage the seating surfaces. Check that the position of the valves fits the flow direction shown on the valve bodies. Once the system is installed, it needs to be pressure tested before it can be put into service to make sure it doesn't leak. These careful preparation steps stop common problems before they happen and set up the best conditions for years of reliable use.
Professional Maintenance Services
Routine checks are done by in-house teams, but hiring specialised repair providers has clear benefits. Professional services know a lot about fire safety systems and can spot small signs of problems before they get too bad, which general repair staff might miss. Comprehensive service agreements set up regular maintenance, so important jobs don't get missed when things are busy. Professionals keep specialised testing and measuring tools for thorough valve checks, which can include the ability to look inside the valve to find wear before it shows up on the outside. They keep up with changing rules and codes to make sure that upkeep methods are in line with the most recent government rules. Service agreements usually include emergency reaction clauses that let you get help quickly if something goes wrong. Professional services that provide good documentation help businesses follow the rules and give detailed records of maintenance that are useful for system audits or insurance reviews. Professional repair services are worth the money because they extend the life of equipment, cut down on surprise breakdowns, and make sure that regulations are always followed.
Conclusion
For industrial fire prevention networks to work, their parts must always be reliable in case of an emergency. This problem can be solved with Fire Protection Flanged Valves because they are strong, have been tested for performance, and are designed with features that meet the specific needs of fire control systems. Their better sealing integrity, resistance to corrosion, and ease of maintenance make them the best choice for use in public, industrial, and commercial infrastructure. Long-term operating success depends on buying things with knowledge, taking into account things like material requirements, certification compliance, and the supplier's abilities. Together with correct installation methods and planned preventative maintenance, these valves protect buildings and people for many years. Buying good fire safety parts pays off in lower upkeep costs, following the rules, and having peace of mind that systems will work perfectly when they're needed the most.
FAQ
What materials are commonly used for fire protection flanged valves?
According to ASTM A536 standards, ductile iron is still the standard because it has great tensile strength and impact protection. For normal uses, cast iron is a cheap option, while carbon steel is best for situations with high pressure. All materials get protective coatings, which are usually Fusion Bonded Epoxy that is thicker than 250 microns. These coatings stop corrosion in both still water and harsh outdoor conditions.
How often should these valves be inspected and maintained?
Standards set by NFPA 25 require visible checks to be done once a week or once a month to confirm valve position and find leaks, as well as full operating testing once a year. Full cycling works out the internal parts that keep them from seizing up, and keeping records helps with regulatory compliance audits. Additional maintenance includes checking the torque of the bolts on a regular basis and checking the condition of the coating.
Can fire protection flanged valves be customized for unique specifications?
A lot of makers, like FLA Industrial & Trading Co., Ltd., offer customisation to meet unique needs. Different materials, unique actuator configurations, and different pressure levels are some of the options. Detailed specifications and 3D modelling services make sure that the fit is perfect before production starts, making it easy to handle a wide range of industrial needs.
Partner with FLA Industrial & Trading Co., Ltd. for Reliable Fire Protection Solutions
FLA Industrial & Trading Co., Ltd. is ready to be your go-to provider for Fire Protection Flanged Valves when the safety of your building relies on tested parts. With ISO 9001, CE, UL, and FM standards and almost 40 years of experience making things, we can make goods that meet the strictest requirements. Our engineering team responds quickly—often within 24 to 48 hours—to questions about price, technical details, and unique solutions. Our flexible manufacturing can meet all of your needs, whether you need standard configurations or custom designs. Get in touch with our experts at sales@flaindustrial.com to talk about your project needs and get cheap quotes. Visit flaindustry.com to see all of our products and learn why Fortune Global 500 companies trust FLA Industrial for their most important fire safety needs.
References
1. National Fire Protection Association. (2020). NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems. Quincy, MA: NFPA Publications.
2. Underwriters Laboratories. (2018). UL 262: Standard for Gate Valves for Fire Protection Service. Northbrook, IL: UL Standards.
3. Factory Mutual Research Corporation. (2019). FM Approval Standard 1120: Fire Protection Valves. Johnston, RI: FM Global.
4. American Water Works Association. (2017). AWWA C550: Protective Epoxy Interior Coatings for Valves and Hydrants. Denver, CO: AWWA Publications.
5. American Society of Mechanical Engineers. (2021). ASME B16.1: Gray Iron Pipe Flanges and Flanged Fittings. New York, NY: ASME International.
6. International Organization for Standardization. (2019). ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads. Geneva, Switzerland: ISO Standards.
