How to Select Permanent Screw Jacks for Heavy Applications?
2026-07-21 14:41:42
When choosing the right lifting tools for tough industrial jobs, you need to pay close attention to the load capacity, material quality, and working surroundings. When it comes to mechanical lifting tools, Permanent Screw Jacks stand out because they are designed to precisely raise, support, and position big loads in places where dependability can't be compromised. Threaded lead screws in these self-locking mechanisms turn rotational motion into controlled linear movement. They provide unmatched stability for a wide range of tasks, from maintaining bridges to positioning equipment on an assembly line. Purchasing managers and engineers can make better choices that improve performance and investment returns if they understand the technical specs, application requirements, and quality standards.

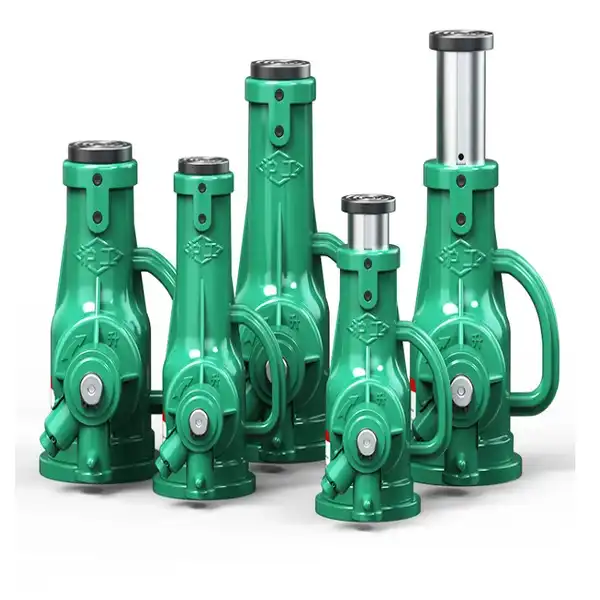

Specifications |
|||||
| Model (t) | Top Cover (mm) | Bottom Cover (mm) | Minimum Height (mm) | Lifting Height(mm) | Weight (kg) |
| 3.2 | 49 | 93 | 220 | 110 | 17.4 |
| 5 | 49 | 93 | 250 | 130 | 21.5 |
| 8 | 49 | 104 | 260 | 140 | 22.3 |
| 10 | 59 | 104 | 280 | 150 | 27.2 |
| 16 | 64 | 118 | 320 | 180 | 21.1 |
| 20 | 64 | 128 | 325 | 180 | 23.1 |
| 25 | 64 | 128 | 275 | 130 | 20.9 |
| 32 | 69 | 142 | 395 | 200 | 37.2 |
| 50 | 88 | 186 | 452 | 250 | 36.1 |
| 100 | 125 | 238 | 452 | 200 | 71.3 |
| D10 | 59 | 104 | 200 | 75 | 22.4 |
| D20 | 64 | 128 | 225 | 90 | 19.3 |
| D32 | 69 | 142 | 320 | 150 | 33.4 |
| D50 | 88 | 186 | 330 | 150 | 28.9 |
Understanding Permanent Screw Jacks and Their Applications
To meet the tough needs of modern industrial operations, mechanical lifting solutions have changed a lot. These tools work by using a basic mechanical advantage principle: threaded shafts rotate inside bronze or engineering plastic nuts, creating vertical motion that can lift or lower loads very precisely.
How Screw Jack Mechanisms Work
The main idea behind how it works is that hardened or cooled lead screws with Acme or trapezoidal threads are used. When rotational force is applied through a hand wheel, motor, or gearbox, the threaded screw turns this into movement up and down. The self-locking feature built into these thread designs stops the load from falling accidentally even when the moving force is taken away. This provides an important safety cushion. Because of this, they are especially useful when loads need to stay high for long amounts of time without constant power input. The mechanical advantage ratio changes depending on the lead screw width and thread pitch. Most common configurations make the force much stronger.
Key Industrial Applications
Differentiating Lifting Technologies
Hydraulic systems have fast stroke speeds and a lot of force, but they need to be maintained under constant pressure, and there is a chance that fluid will leak. Mechanical screw jack systems are great at holding static loads and don't have to worry about hydraulic fluid getting dirty. When installed in small spaces, telescopic versions offer longer stroke lengths, but they can't usually handle as much weight as solid column designs. Knowing these differences helps you match the right technology to the needs of your business.
Essential Criteria for Selecting Screw Jacks for Heavy Loads
A lot of technical and operational factors must be taken into account when buying something to make sure that the equipment chosen meets both short-term goals and long-term performance standards.
Load Capacity Assessment
The first step in making the right choice is to do an accurate load estimate for Permanent Screw Jacks. Dynamic loads change while the machine is running, while static loads stay the same over time. Extra safety limits are needed for impact loads caused by quick force applications. Engineers should figure out the highest load that can be expected and add a safety factor of 2:1 to 4:1, based on how important the application is and the weather outside. Load capacity ratings range from 500 kg to 100 tonnes to meet a wide range of needs. However, precise matching is needed to avoid both under-specification failures and cost-inefficient over-specification.
Material Selection and Structural Integrity
Durability and service life are directly affected by the building materials used. For general industrial use, alloy steel has great strength-to-weight ratios. In controlled settings, carbon steel works well at a low cost. Cast steel can take big loads with a lot of shock. Stainless steel doesn't rust when it's exposed to chemicals or water. Heat treatment of lead screws by hardening or cooling makes them more resistant to wear and increases their load capacity. Nut materials balance how slippery they are with how long they last. For example, bronze is very resistant to wear, and industrial plastics make upkeep easier in clean settings.
Safety Standards and Compliance
International certificates prove that the equipment works and follows the law. ISO9001 certification shows that a strict quality management system is used throughout the manufacturing process of Permanent Screw Jacks. The CE mark shows that the product meets European standards for health, safety, and the environment. Industry standards, such as DIN, AGMA, and EN, spell out the exact measurements that must be taken, the right way to test for load, and the materials that must be used. Checking these standards keeps procurement teams from being sued and makes sure that equipment works as promised throughout its working lifecycle.
Environmental Considerations
Most workplace settings can work in temperature ranges from -20°C to +80°C, but harsh situations might need special materials or safety features. Coatings that don't rust protect against water, chemicals, and the weather outside. Optional dust covers keep particles from getting into dirty areas. Integrated lubrication interfaces make it easier to plan maintenance for high-cycle uses. Matching environmental protection features to the conditions of the place increases repair intervals and lowers the total cost of ownership.
Comparing Screw Jack Systems with Alternative Solutions
Procurement professionals can make strategic decisions that are in line with operational priorities when they know the pros and cons of different lifting technologies.
By changing the pressure of the fluid, hydraulic lifting devices can move quickly and control the force in different ways. They work great for mobile apps and situations where the height needs to be changed often. But hydraulic systems need to have their fluids checked, their seals replaced, and their pressure systems maintained on a frequent basis. Leaking fluids can make places that process food or keep things clean dirty. Compared to mechanical alternatives that are operated by hand, these devices are less portable because they need a power source.
Mechanical screw jack systems, including Permanent Screw Jacks, can hold loads securely without the need for external power. Their simple design means that they only need to be oiled and inspected every so often. Since there are no moving parts, there are no problems with fluids or worries about pollution in the environment. Thread wear happens slowly, which lets you check for problems visually before they become critical. Load capacity increases predictably with structural size, which makes the specification process easier.
Temporary structural supports, like adjustable columns, are good for short-term building needs but don't have the accuracy and load-bearing capabilities needed for long-term installations. They are not good for long-term heavy-load applications because they have lower load ratings and less structural integrity.
Total ownership costs include not only the initial purchase price, but also the difficulty of installation, the regularity of upkeep, the cost of consumables, the risk of downtime, and the time between replacements. When it comes to static load applications, mechanical systems usually offer better long-term value, even if they require a bigger initial investment than temporary solutions.
Procurement Best Practices for Industrial Lifting Equipment
Strategic purchasing includes more than just product specs. It also includes evaluating suppliers, being able to customize Products" target="_blank" style="color:blue" >products, and having a system in place for help after the sale.
Supplier Evaluation Criteria
The manufacturer's image is based on decades of engineering know-how and dedication to quality. With almost 40 years of experience in the field, the company has shown that it can keep up its expert skills and earn the trust of the market. Being able to make more than 1,000 different product specs, including Permanent Screw Jacks, shows that you can adapt to different customer needs. Partnerships with Fortune Global 500 companies vouch for performance standards and the dependability of the supply chain. A geographic market spread that includes the US, Germany, and Australia shows that the company has well-established logistics networks and the ability to provide help in these areas.
Customization and Engineering Support
Catalogue goods can be used for many things, but solutions that are specifically made for complex setups are often needed. Some of the biggest manufacturers offer engineering consulting services that look at specific load patterns, mounting limitations, and operational needs. Quick responses—quotes, load confirmations, and 3D plans within 24 to 48 hours—speed up project timelines and cut down on wait times for decisions. Custom manufacturing can handle special mounting arrangements, measurements, and features that are specific to an application that can't be accommodated by standard goods. Full technical support, including design optimization and real-time production updates, makes sure that the equipment delivered exactly matches what was ordered.
Quality Assurance and Testing
Precision turning, grinding, milling, and heat treatment are used in manufacturing processes to make sure that the mechanical properties of Permanent Screw Jacks stay the same from one production run to the next. Tough assembly steps and thorough testing before shipping make sure the load capacity, smoothness of the adjustments, and self-locking function are all checked. Quality control systems make sure that the tolerances for sizes match the engineering plans and that the thread standards allow the machine to run smoothly when it's loaded. Checking the maximum load capacity, the soundness of the weld using ultrasonic or magnetic particle methods, and the resistance to corrosion through normal salt spray exposure tests should all be part of the inspection process.
Negotiating Purchase Terms
Most of the time, placing a large order will get you better pricing that lowers the cost per unit without lowering quality standards. Coordinating delivery schedules keeps projects from being held up and keeps store costs low. Payment terms should be based on the size of the order and how long the supplier has been working with the business. With professional installation, the foundation is properly prepared, the loads are aligned, and the first adjustments are made. After-sales support that includes servicing contracts, help with fixing problems, and access to new parts protects equipment investments and keeps operations running as smoothly as possible.
Maintenance Tips and Longevity Strategies
Regular maintenance plans make things last longer and stop them from breaking down when they're least expected, which can mess up production schedules and put people in danger.
Routine Maintenance Procedures
Environmental Protection Strategies
Harsh working conditions speed up the breakdown of parts through corrosion, contamination, or thermal cycling. Spray-painted finishes offer basic security in controlled settings, while advanced coatings that don't corrode can handle chemical contact and weathering outside. In dirty places, dust covers keep particles from getting into thread systems. Cleaning on a regular basis gets rid of built-up dirt and grime that could make adjustments less useful or speed up wear patterns.
Upgrade and Replacement Planning
Keeping an eye on wear signs helps repair teams plan when to replace parts before they stop working. Thread measurement methods find wear patterns that lower the load capacity or make it harder for the thread to lock itself. Adding better materials or covering technologies to older buildings can make them last longer than what was planned when they were first built. Setting replacement times based on working cycles and environmental exposure stops unexpected downtime and gets the most use out of each component.
These tips for repair help procurement and facilities managers protect their investments in equipment while getting the most out of its useful time in demanding industrial settings.
Conclusion
To choose the right lifting tools for heavy industrial uses, you need to carefully consider the load requirements, the working conditions, and the long-term operating goals. When lifting a static load, mechanical lifting solutions such as Permanent Screw Jacks are better than hydraulic ones because they are safer, easier to control, and require less maintenance. Quality materials, precise manufacturing, and foreign certificates prove that the product is reliable and follows the law. Partnering with strategic suppliers gives you the ability to customize equipment and get engineering support that makes it work best for your needs. Putting proactive maintenance plans in place helps maximize investment returns over decades of heavy use and extends service life.
FAQ
How do I determine the correct load capacity for my application?
Figure out the highest load that can be expected, making sure to include safety margins of 2:1 to 4:1 depending on how important the application is. Think about whether the loads stay the same or change during operation. Loads that move or hit something need higher safety factors. Talking to technical teams makes sure that the volume specifications are correct.
What material options provide the best corrosion resistance?
Stainless steel construction is better at resisting corrosion in chemical processing, marine environments, and outdoor settings. In relatively harsh conditions, alloy steel with advanced coatings that prevent corrosion is a cost-effective way to protect things. The choice of material should be based on how it will be exposed to the environment.
Can these systems operate in synchronized configurations?
Several units can be physically connected or electronically timed to work together to lift heavy structures or tools that need to be leveled across several support points. For synchronized operation to work, the control systems must work together, and the load spread must be carefully studied.
What maintenance intervals do heavy-duty systems typically require?
Schedules for lubrication range from once a month to once a year, depending on how often the machine is used and the weather. Visual checks should happen every three months, and full load tests should be done once a year or as recommended by the maker to make sure that the capacity is still being met.
Partner with FLA Industrial & Trading Co., Ltd. for Premium Screw Jack Solutions
Choosing a dependable screw jack maker has a direct effect on the success of your project and the efficiency of your operations in the long run. With almost 40 years of experience in manufacturing, FLA Industrial & Trading Co., Ltd. makes lifting solutions that Fortune Global 500 businesses around the world trust. Our wide range of products, which includes sizes from 500 kg to 100 tonnes, can be configured in any way you want. We can get you a quote in just 24 to 48 hours, and we offer full tech support from the initial idea to installation. Each unit has ISO9001 and CE certificates, which show that it meets international safety standards. Our experienced team can help you with technical questions that will help you get the best performance and value for your money, whether you need standard catalogue items or solutions that are specially made for your load needs. Email our sales team at sales@flaindustrial.com to talk about your unique lifting needs and find out how our tried-and-true solutions improve safety and efficiency in manufacturing, construction, and infrastructure settings.
