What Is ABC Strain Clamp Used for in Power Systems?
2026-07-16 14:41:34
When working with aerial bundled cable systems in modern power distribution networks, you quickly come to understand that the ABC Strain Clamp is the most important grounding point for moving mechanical loads from overhead wires to supporting structures. At line terminals, angle points, and crossing spans where cable tension is at its highest, this special dead-end clamp holds insulated messenger neutrals or self-supporting conductors in place. These clamps are designed with self-tightening wedge mechanisms that spread tensile forces evenly across cable surfaces without affecting the integrity of the insulation. This keeps linemen safe and makes sure that power stays on in residential, commercial, and industrial installations.

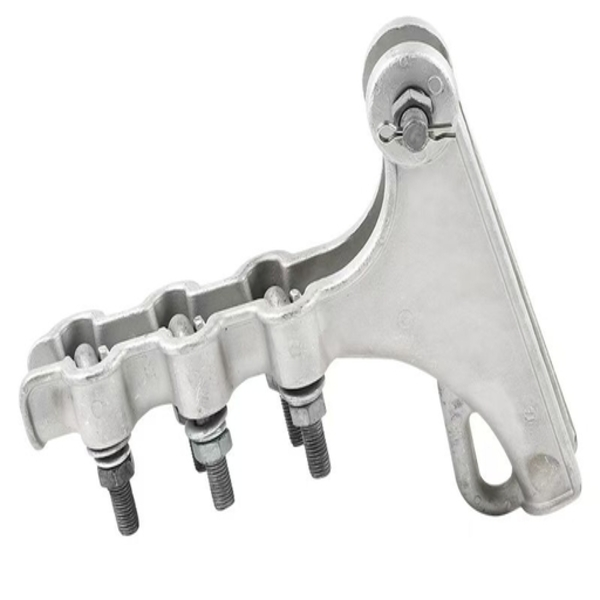

Specification |
|||
| Product Name | Applicable Range | Material Options | Finish |
| NLL-1 Strain Clamp | 35-50 mm2 | Aluminum Alloy with Steel Core / Ductile Iron | Hot-Dip Galvanized/ Natural Aluminum |
| NLL-2 Strain Clamp | 70-95 mm2 | Aluminum Alloy with Steel Core / Ductile Iron | Hot-Dip Galvanized / Natural Aluminum |
| NLL-3 Strain Clamp | 120-150 mm2 | Aluminum Alloy with Steel Core / Ductile Iron | Hot-Dip Galvanized / Natural Aluminum |
| NLL-4 Strain Clamp | 185-240 mm2 | Aluminum Alloy with Steel Core / Ductile Iron | Hot-Dip Galvanized/ Natural Aluminum |
Introduction
By covering bare wires with protected cable bundles, aerial bundled cable systems have changed the way power is distributed above us. In these systems, strain clamps are the mechanical gatekeepers—the parts where all the tensile stress builds up. If these grounding points fail, the line will fall apart right away, power will go out, and there could be safety risks.
Project engineers and procurement managers know that choosing the right anchoring hardware has a direct effect on project budgets through the number of times it needs to be maintained and replaced. Electrical installation managers know that using the right clamp specifications keeps the field from breaking down, which delays the building process. Hardware stores know that contractors want goods that are reliable and follow the rules, so they stock high-quality strain clamps.
This detailed guide looks at how strain clamps keep cables intact when they are under stress from the environment. It also compares material specifications to industry standards and gives buying tips for bulk orders. There are both technical explanations based on international safety standards and useful tips for matching clamp specs to project needs. This resource gives you the detailed information you need to make smart decisions, whether you're looking for inventory for sales or parts for utility infrastructure.
Understanding ABC Strain Clamps and Their Purpose in Power Systems
What Defines an ABC Strain Clamp
A precision-engineered mechanical device made specifically for low-voltage aerial bundled cable systems is referred to as an ABC Strain Clamp, also known as an anchoring or dead-end clamp. Strain clamps stop all of a span's mechanical load at set points, while suspension clamps only support the weight of the wire between the poles. These clamps connect moving wire systems that are affected by wind, ice, and temperature changes to fixed support structures like utility poles or building surfaces.
The main technical problem that these clamps solve is how to hold insulated conductors tightly enough so that they don't slip under high tension without damaging the polymer insulation sheath. XLPE or PE insulation could be crushed by traditional bare-conductor clamps, which could lead to short-circuits. Modern strain clamps are made with conical wedge shapes that spread radial pressure over larger surface areas. This keeps the grip strength, which rises with line tension.
Mechanical Working Principles
Self-adjusting wedge technology is at the heart of how it works. Polymeric or metal pieces are put between the wire and the clamp body housing when the clamp is put in place. The wedges are pushed deeper into the cone-shaped housing as line strain rises due to span weight, wind loads, or ice buildup. This makes a mechanical advantage because the tension itself makes the grip stronger without the need for extra fastening.
This self-tightening idea gets rid of the need for human mistakes that come with setups that depend on torque. You don't need to have your tools calibrated or have a lot of training—the design's physics will automatically find the best clamping force. The wedge surfaces have designed shapes that bite into the outer sheath of the cable just enough to stop it from moving, but not enough to reach the conductor cores.
When installing an Abc Strain Clamp at terminal poles or corner angles greater than thirty degrees, the clamp can put thousands of pounds of pulling force on the fastening hardware. If the clamps are set up correctly, they spread the stress across the bolt patterns and backing plates. This keeps the stress from building up in one place, which could break the pole arms or pull the mounting bolts through wood or composite structures.
Key Operational Benefits
Better line safety turns out to be the main benefit. These clamps stop wire sag that could lead to ground clearance violations or phase-to-phase spacing problems by keeping the cable tightness constant without letting it slip. Poor grounding methods often lead to hot spots that are caused by links that are too loose.
Compared to older methods that needed specialised crimping tools or time-consuming bolt tightening sequences, this method makes installation much faster. Field crews can finish dead-end setups in minutes instead of hours, which saves money on labour and cuts down on the time workers are exposed to heights. When working on big distribution projects with dozens or hundreds of span terminations, this speed advantage gets bigger.
Quality strain clamps don't need to be re-tightened or adjusted on a regular basis, so they require a lot less maintenance. Once it is set up, the self-adjusting mechanism takes care of cable creep and temperature changes on its own. Instead of checking dead-end links all the time, utility repair teams can focus their inspection resources on other parts of the system.
Comprehensive ABC Strain Clamp Specifications and Materials
Technical Specifications and Standards Compliance
Standards like EN 50483-2, NFC 33-041, and IEC rules make sure that professional-grade strain clamps meet strict requirements. These guidelines set minimum requirements for tensile strength, dielectric withstand voltage, and longevity in harsh environments. The clamps are rated to hold more than 95% of the cable's minimum breaking strength before they slip. Typical load-bearing capacities range from 10kN to 25kN, depending on the cross-sectional area of the conductor.
Size ranges cover wire cross-sections from 16mm² to 95mm², and standard deviations in measurements make sure that cables from different makers can work together. The clamps must grip cables within certain diameter ranges. Using an undersized clamp on an oversized cable causes insulation to cold flow and eventually fail, while using an oversized clamp on an undersized cable means that the clamp can't apply enough grip pressure.
For the dielectric strength test, people put clamps together and exposed them to a 6kV AC potential for sixty seconds while they were submerged in water, which was the worst possible moisture exposure. To meet the requirements for certification, there must be no flashover or breakdown events. This test proves that wedge shapes and body insulation keep live wires and grounded hardware separate, even when they are fully loaded.
Specifications for weather protection say that the product must be able to work in temperatures ranging from -50 to +60 degrees Celsius without losing any of its mechanical properties. Salt spray testing according to ASTM G154 standards makes sure that coastal installations won't rust, and UV ageing tests with weatherometers make sure that polymers will stay stable over thirty years of use.
Material Construction and Manufacturing
The best balance of strength and weight is achieved by using aluminium for the body. High-quality aluminium alloys naturally resist corrosion very well, while hot-dip galvanised steel parts are stronger in situations where the design needs to meet a maximum load-bearing capacity. Some companies use steel core support inside aluminium frames, which takes the best features of both materials and puts them together in one.
Ductile iron is used in heavy-duty situations where maximum impact resistance and load capacity are needed. When ductile iron parts are cast or forged, they are made of metal structures that can handle shock loads without breaking easily. This is very important for installations that are likely to be damaged by melting ice or strong winds.
Wedge materials are made of UV-stabilized glass-fiber reinforced polyamide (PA66), which keeps its mechanical qualities even after years of being outside. Adding carbon black protects against UV rays, which stops the breaking down of polymer chains that leads to surface chalking and strength loss. The wedge shape strikes a balance between how well the grip works and how much force is needed for installation. This lets you install it by hand while also stopping it from seating too early before applying stress.
For ferrous parts, hot-dip galvanising is one way to finish the surface of the Abc Strain Clamp. For aluminium parts, natural aluminium oxide patina is another. In industrial or marine settings, where airborne toxins speed up material breakdown, these finishes act as sacrificial shields against atmospheric corrosion. This extends the useful life of the product.
Safety Features and Maintenance Considerations
Built-in safety features stop catastrophic failure modes from happening. The wedge shape of the design makes sure that even if the maximum rated tension is passed, the cable will break before it can be pulled free from the clamp. This keeps the broken conductor connected to the structure instead of dropping to the ground, where it could electrocute someone.
Backing plates or wide-area contact surfaces that spread the load keep stress from building up on the mounting hardware. When clamps are installed correctly, they spread loads across multiple bolt patterns, so there is no single point of failure.
Maintenance rules are still very basic but very important. Visual checks should be done to make sure that the wedges stay in place and that there is no damage to the insulation at the entry points. Hardware for mounting needs to be checked for strength on a regular basis to keep it from coming loose from vibrations or changes in temperature. But the clamp mechanism doesn't need to be adjusted or serviced—its self-compensating design means it doesn't need the regular maintenance that suspension hardware does.
ABC Strain Clamp vs Traditional and Alternative Clamps: Making the Right Choice
Design and Performance Differences
In the past, bare-conductor strain clamps used compression bolts to crush the wires between metal pieces. This method worked well for wires that weren't insulated, but it doesn't work with modern insulated cable systems because the polymer sheaths get damaged when they are compressed. The old designs also needed to be retightened from time to time because the wires went through stress relaxation and cold flow.
In order to get around these problems, ABC-specific strain clamps were developed with wedge-based gripping that spreads force out evenly instead of gathering it at bolt contact places. This basic difference in design keeps the insulation from getting damaged and keeps the grip more reliable over longer service times.
Suspension clamps are an option for mid-span support places where cables need to be held vertically without being pulled tight. These clamps hold cable bundles in place with polymer saddles that are attached to brackets on poles. While suspension clamps are good at holding up vertical loads, they aren't good at handling the horizontal tensile forces that come up at line ends or sharp turns. Using suspension clamps at dead-end points doesn't work because the wires will pull through the support saddles and break them right away.
Durability and Environmental Suitability
Choosing the right materials has a huge impact on how well they work in all climates. When the weather is normal, aluminium alloy clamps work great. They are also light, which makes them easier to put on light poles or building surfaces. Their natural resistance to rust means they don't need any extra coatings to work well in most settings.
Galvanised steel and ductile iron are two choices that offer better mechanical strength for heavy-load uses or places where there is a risk of contact. Hot-dip galvanising makes thick zinc coatings that protect the steel underneath, even if scratches on the surface show the base metal. These heavy-duty choices work well in factories, mines, or places where ice loads are very high, and the end strength margins are very important for safety.
Installations near the coast need extra care because the salty air speeds up corrosion. When combined with UV-stabilized polymer bodies, stainless steel hardware parts last the longest in marine environments. In these conditions, standard carbon steel hardware breaks within months, but materials that are resistant to corrosion can last thirty years or more if they are properly specified.
Selection Criteria for Optimal Performance
Specification choices are based on what the project needs. It is important to match clamp load rates to the right types of cables and span arrangements. To find the greatest span tension, you have to take into account the weight of the cables, the wind pressure, the amount of ice that is expected to form, and other factors that depend on the landscape. Peak loads must be able to be handled by the chosen clamp with the right safety factors, which are usually 1.5 to 2.0 times the highest predicted tension.
Size matching is based on the cable's specs. Measure the real outer diameter of the fitted wire bundles, taking into account the thickness of the insulation. Then, compare this measurement to the manufacturer's grip range specs. Keep in mind that wires made by different companies may have different diameter limits, even if the cross-sections of the conductors are the same.
Budget concerns go beyond the initial cost of each machine. Cheaper clamps might need to be adjusted or replaced more often, which will raise the total cost of ownership through repeated labour costs and system downtime. When you buy quality clamps from certified manufacturers, they cost more at first, but they last thirty years and don't need to be serviced.
Procurement Guide: Buying ABC Strain Clamps for Your Business
Identifying Reliable Suppliers and Distribution Channels
To find real, certified strain clamps, you need to check the qualifications of the maker and look at the product paperwork. Suppliers you can trust give you full technical data sheets with certifications for the materials they use, test results, and comments that they follow certain international standards. Before you place a large order, make sure you have proof that the company is certified to ISO9001 quality management standards and meets IEC standards.
Authorised distributor networks have benefits, such as having local inventory, technical support resources, and easy access to warranty service. Well-known distributors keep in touch with manufacturers, which lets them talk about custom specifications and speed up delivery for projects that need to be done quickly.
When buying through unreliable platforms or sellers with unusually low prices, the risk of counterfeiting goes up. Fake clamps may look a lot like real ones, but they are made of inferior materials or are the wrong size, so they break when they are loaded. Before you accept delivery, check the item's authenticity using libraries of maker serial numbers or by calling the production sites directly.
Pricing Structures and Volume Advantages
The economics of bulk ordering favour buying in large quantities. Most of the time, volume savings start when you order more than 100 units, and prices go down even more when you order between 500 and 1000 units. These volume levels are best for hardware distributors who are building up stock to sell again.
Customisation choices let you meet the specific needs of your project, such as non-standard wire size ranges, special corrosion protection, or custom mounting arrangements. When it comes to custom engineering, the smallest order size is usually around 500 pieces, and lead times are faster for simple changes than for complicated, custom-shaped designs.
During procurement talks, it's important to be clear about payment terms and delivery dates. While standard Products" target="_blank" style="color:blue" >products can be shipped within days from stock, custom products may take anywhere from one to three weeks to make. Knowing these dates when planning a project keeps it on track and stops delays caused by gaps in the supply of parts.
Quality Verification and After-Sales Support
Warranty coverage protects you against problems with the way the product was made and with the materials that were used. Standard warranty terms vary from 12 to 36 months, based on how the product is used and the manufacturer's rules. Carefully read through the warranty's exclusions—wrong installation or use beyond the listed specs will usually void the guarantee.
After-sales technical support is very important when installation problems or questions about performance arise in the field. Manufacturers who are responsive offer application engineering help, such as helping customers choose the best products for odd setups or answering questions about how well their products work with certain types of cables.
Lead time dependability has a big impact on planning a project. Suppliers who keep large inventories (tens of thousands of units) can fill orders quickly, even during busy building times. This inventory depth is important when project plans get pushed back or when unexpected needs make it necessary to use more parts than planned.
Case Studies and Future Trends in ABC Strain Clamp Usage
Real-World Performance Data
Utility companies that work in a variety of climates say that switching from bare wire systems to ABC networks with current strain clamps has made their systems much more reliable. A mid-Atlantic regional utility found that better mechanical stability at dead-end points led to a 40% drop in storm-related power outages. The wedge-shaped clamps kept the cables intact during windstorms, which used to cause a lot of span failures with older gear.
Coastal phone companies in tropical areas had to deal with faster corrosion problems every eighteen months on average with normal galvanised gear. After choosing UV-stabilized polymer and stainless steel strain clamps, the service life went over ten years without needing to be replaced. This improvement got rid of the need for regular upkeep and cut down on service interruptions in places where fixes were especially expensive because of limited access.
A big project to bring electricity to rural areas in mountainous areas used light aluminium alloy strain clamps to keep pole loads as low as possible in places where span lengths had to be longer. Because it was lighter than standard cast iron hardware, fifteen percent longer span lengths were possible without upgrading pole strength classifications. This saved a lot of money on infrastructure costs across thousands of installation points.
Emerging Material Innovations
As material science progresses, strain clamp performance traits keep getting better. Composite materials that use new polymers and carbon fibre support could be even lighter while still meeting or beating current strength standards. These new materials are better at reducing vibrations, which could make wire fatigue last longer at attachment places.
The main goal of developing corrosion-resistant alloys is to make aluminum-zinc-magnesium coating systems that work better than traditional galvanising and are better for the environment than chromate treatments. With these newer coating technologies, you can get better safety in harsh settings without having to use expensive, rare stainless metals.
Integration of self-monitoring is a cutting-edge area of technology. Sensors built into prototype strain clamps keep an eye on stress levels, temperature changes, and sound patterns. These smart clamps could send information to utility tracking systems, which would allow for proactive repair that finds problems before they become major. Costs will go down as sensor technologies improve and utilities build out their smart grid infrastructure, even though they are still too high for widespread use right now.
Sustainability and Grid Modernization Trends
Along with traditional performance requirements, power distribution networks are giving more weight to sustainability metrics. As a result, companies that make strain clamps make sure that their products can be recycled when they're no longer useful. They also use materials that leave smaller carbon footprints and make their products last longer so that they don't need to be replaced as often.
As climate change makes violent weather happen more often, the need for grid stability grows. Strain clamps with higher safety factors and wider environmental operating ranges help utilities get their infrastructure ready for storms, heat waves, and ice events that get worse. As risk profiles change, so do the standards for specifications. This forces product developers to make designs that are stronger.
For distributed generation to work, the distribution hardware needs to be able to handle power flows going both ways and higher levels of fault current. Strain clamps are mostly used for mechanical needs, but when choosing them, you need to think about how the electrical properties will change as more rooftop solar and battery storage systems are added to distribution networks.
Conclusion
FAQ
Can strain clamps be reused after cable removal?
It is usually against business best practices to use strain clamps again after removing the wire. When the polymeric wedges are first put in place and then tensioned, they slightly distort to fit the surface of the wire they grip. This distortion makes the grip work better for that installation, but it makes it less effective for later connections. The metal parts of the bail usually stay in good shape, but the wedge mechanism stops gripping securely over time. To make sure safety and efficiency standards are met, most electrical codes and maker instructions say that new clamps must be used for every permanent installation.
How do I verify supplier quality before large orders?
Checking starts with looking at the manufacturer's certifications, such as ISO9001 quality management paperwork and product compliance certificates that use EN 50483-2 or IEC standards. Ask for copies of the real test records that show the results of the tensile strength, dielectric withstand voltage, and environmental ageing tests. Get in touch with the manufacturer directly to make sure that the supplier is an authorised distributor. Before agreeing to large orders, physical sample viewing lets you check the quality of the material, the consistency of the finish, and the accuracy of the measurements. Suppliers with a good reputation will welcome these steps of proof and provide clear paperwork.
What makes these clamps suitable for extreme climates?
Climate suitability is determined by the choice of materials. UV-stabilized polymers don't break down when they are exposed to strong sunlight in deserts and tropical areas. Parts that are hot-dip galvanised or made of stainless steel don't rust in seaside areas with a lot of humidity or industrial areas where flying pollutants are common. The materials keep their mechanical properties from -50 to +60 degrees Celsius, so they don't break easily in very cold temperatures or slowly wear away in very hot temperatures. Matching the right specifications to the right types of materials guarantees steady performance, no matter what the weather is like.
Partner with FLA Industrial & Trading Co., Ltd. for Premium Strain Clamp Solutions
To get reliable overhead cable anchoring parts, you need a seller with both manufacturing know-how and quick technical help. FLA Industrial & Trading Co., Ltd. has been making electrical line tools and hardware parts for almost 40 years. Their work is accepted by Fortune Global 500 partners in the telecommunications and power distribution businesses. Our ABC Strain Clamps are made of precision-engineered aluminium metal and have been hot-dip galvanised. They are made using advanced casting, forging, and machining techniques that meet ISO9001 and IEC approval standards.
Our technical team helps you choose the right specifications by matching clamp load ratings and size ranges to the types of cables you have and the way they will be installed. We can meet both standard needs and unique project needs because we keep over 1,000 product specs in stock and can also do custom engineering. As a well-known company that makes ABC Strain Clamps for the U.S., German, and Australian markets, we keep a large inventory that lets us meet tight project deadlines quickly and offer competitive pricing for large orders.
To talk about your project needs, email our procurement specialists at sales@flaindustrial.com. We offer thorough technical paperwork, sample evaluation units, and application engineering support to help you choose the best options for your infrastructure investments. You can look through our full catalogue of electrical tools at flaindustry.com and learn how our dedication to quality and innovation can help you make your supply chain more reliable.
