What is the Dynamic Performance of a Coupling Grooved Coupling?

A coupling clamp grooved's dynamic performance is its capacity to maintain secure, leak-free pipe connections throughout live operating system movement, vibration, thermal expansion, and pressure changes. coupling clamp grooveds absorb stress, reduce vibration, and provide controlled angular deflection utilizing elastomeric gaskets and articulated housings. Contractors and engineers prioritizing system longevity and operational safety prefer coupling clamp grooveds because their inherent flexibility prevents catastrophic failures in high-stress environments like seismic zones, industrial processing facilities, and fire suppression systems.

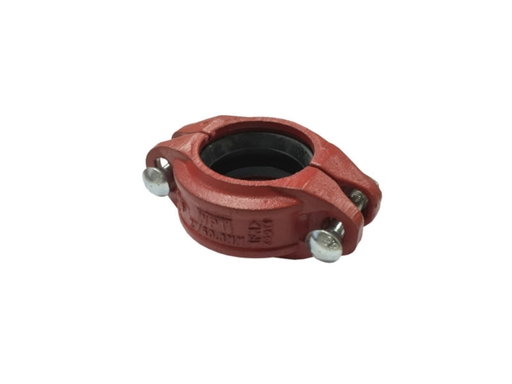

What Is a Grooved Coupling Clamp and How Does It Work

Pipe connecting technique is revolutionized by coupling clamp grooveds. These mechanical fasteners use a circumferential groove machined or roll-formed onto the pipe's outer surface instead of welding or threaded connections. Two ductile iron or carbon steel housing pieces, a pressure-responsive EPDM gasket, and zinc-plated hardened carbon steel fasteners make up the assembly. When the bolts are tightened, the housing key portions lock into the pipe grooves and compress the gasket, forming a metal-to-metal mechanical grip and elastomeric seal.

The Mechanical Advantage Over Traditional Joints

This technique reduces welding hot work permit fire concerns. Installation takes 50% less time than flanged assemblies, lowering labor expenses for building contractors under tight schedules. For HVAC systems with heat cycling and seismic installations that need drift tolerance, the connection tolerates axial pipe movement and small misalignment without affecting joint integrity.

Types and Material Classifications

Materials meet different operating needs. ASTM A536 Grade 65-45-12 ductile iron housings have 65,000 psi and 12% elongation, making them appropriate for municipal water networks and fire prevention systems. For high-pressure industrial applications, carbon steel variations are more stiff. Gasket material—EPDM for water and steam up to 230°F or Nitrile (NBR) for petroleum-based fluids—affects chemical compatibility and temperature resistance. FLA Industrial & Trading Co., Ltd. uses precision casting and CNC machining to fulfill AWWA C606 specifications for groove engagement spanning 1" to 48" sizes.

Analyzing the Dynamic Performance: Strength, Flexibility, and Pressure Handling

How coupling clamp grooveds react to real-world loads separates theoretical requirements from practical dependability. Dynamic performance includes structural strength under pressure, movement flexibility, and environmental durability.

How Dynamic Forces Challenge Pipe Joints

Multiple sources of stress affect industrial pipe systems. Pump stations cause cyclic pipe vibration. In straight lines, a 100-foot steel pipe expands 0.75 inches from 70°F to 150°F. Seismic activity causes lateral and rotational ground displacement. Traditional stiff connections concentrate stresses at weld locations, causing fatigue fractures.

The Grooved Coupling's Stress Compensation Mechanism

Coupling clamp grooved stress compensation mechanisms transfer stress differently. The shock-absorbing elastomeric gasket reduces pipe vibrations. Flexible connection designs allow pipeline lines to follow building settlement or thermal expansion without bending moments by providing regulated angular deflection of 3 to 4 degrees per joint. The metal housing is hard and the gasket is flexible, forming a hybrid system.

Pressure Ratings and Certification Standards

Configuration and size affect working pressure capacity. For conventional applications, our coupling clamp grooved Products" target="_blank" style="color:blue" >products can tolerate 300 PSI (2.07 MPa). Custom high-pressure variations are available. UL/FM certifications verify fire prevention system leak resistance under static and dynamic pressure testing. Most industrial settings, from refrigerated storage to steam condensate return lines, operate between -29°C to 110°C.

Comparative Performance Analysis

Procurement managers consider installation speed, maintenance, and failure factors while assessing joint technology. Welded connections are stiff, require specialized labor, and are difficult to remove. Flanged connectors offer disassembly but increase weight, expense, and gasket interface leak routes. Threaded joints operate for modest diameters but gall during installation over 2 inches. coupling clamp grooveds attach rapidly without welding certification, allow disassembly for maintenance or system adjustments, and improve system integrity with their purposeful flexibility. Our hot-dip galvanized and epoxy-coated finishes resist corrosion in hostile conditions, lowering lifespan costs for facility managers tracking total cost of ownership.

Installation Process and Maintenance Tips to Maximize Dynamic Performance

coupling clamp grooved performance depends on proper installation. Field procedures matter as much as manufacturing quality since even premium components fail if integrated poorly.

Step-by-Step Installation Protocol

Installation begins with pipe prep. Cut or roll grooves to specific dimensions—depth, breadth, and pipe end distance determine coupling engagement. Pipe ends must be wire-brushed before installation to remove debris, scale, and burrs from the groove surface to seat the gasket. Most gaskets have a C-shaped cross-section with an outward opening, enabling internal pressure to increase sealing force.

Housing segments cover gasket-equipped pipes. Bring the housings together around the joint to align the bolt holes. Assembly begins with hand-threading bolts through both housings. Tightening follows a diagonal pattern—snug one bolt slightly, then the other, until the metal bolt pads touch or achieve torque levels. This pad-to-pad indication shows compression, but torque wrenches maintain uniformity between joints. Properly placed couplings have gasket material around the circle without gaps or bulges indicating pinching.

Maintenance Inspection Routines

Inspections detect problems before they cause system faults. For grooved coupling clamp, excess rubber extending beyond the casing indicates overtightening or pressure spikes. To check for vibration loosening, calibrated torque wrenches are used to verify bolt tension. Leak detection requires checking the joint for moisture or leaking at the gasket contact during system operation at maximum pressure. Pump discharge lines and reciprocating machinery generate more vibration, thus inspections are done monthly rather than quarterly.

Common Installation Mistakes and Prevention

Misalignment breaks gaskets early. The gasket compresses unevenly when pipes aren't collinear before connection installation, generating leak routes on the stretched side. This is avoided by using alignment tools or laser guides during assembly. Under-tightening leaks, while over-tightening bends housings and smashes gaskets. Joint integrity is protected by following manufacturer requirements, not tighter is better. Since elastomers take a compression set during installation, new gaskets should be used during joint disassembly. FLA Industrial & Trading Co., Ltd.'s technical support staff helps contractors and maintenance engineers avoid these problems and ensure system dependability from the first pressure test to decades of operation with installation training and troubleshooting tools.

Selecting the Right Grooved Coupling Clamp for Your Application

Matching product specs to operational needs is key to coupling clamp grooved component selection. Incorrect selection causes premature failures, while overspecifying increases costs.

Critical Selection Criteria

Constant pressure or cyclic loads determine dynamic load tolerance. Active fire protection systems face pressure surges after being static for much of their existence. Different gasket compositions are needed than for HVAC chilled water loops with daily thermal cycling. Pressure capacity must exceed maximum system pressure, including transient spikes from pump starts or valve closures—300 PSI couplings on 280 PSI systems are unsafe. Paint works for drinking water, but chemical processing needs epoxy coating or specific metals to prevent corrosion.

Application-Specific Configurations

Fire protection applications require UL/FM grooved coupling clamp with NFPA 13 installation criteria. These certifications verify the coupling's fire resistance and emergency flow integrity. Flexible connections reduce equipment vibration and facilitate thermal expansion in lengthy pipe lines in HVAC installations. Manufacturing facilities typically need specialized sizing for non-standard pipe schedules or chemical-resistant coatings for industrial process pipework. For unusual project needs, our engineering team creates custom solutions with non-standard dimensions, changed materials, and specialist surface treatments.

Procurement Considerations for Volume Buyers

Hardware wholesalers buying resale inventory require a variety of SKUs with consistent quality. Bulk purchase features include bulk pricing, specialized manufacturing schedule, and bespoke packaging for transport and storage. Standard configurations from our 1,000+ specification catalog ship within days, while custom developed solutions take three to six weeks for tooling and manufacturing. Distributors backing contractor items with manufactured failure warranties are confident.

Trusted Manufacturing Partners

Trustworthy manufacturers combine manufacturing and technological skills. Victaulic invented coupling clamp grooved technology and has substantial engineering resources. Tyco and Grinnell specialize in UL/FM-certified fire protection. Anvil and Parker make industrial coatings and materials. Cooper offers affordable commercial construction. FLA Industrial & Trading Co., Ltd. has approximately 40 years of coupling clamp grooved production expertise, integrating precise casting and machining with strict quality control. Our ISO9001, CE, and UL/FM certifications show our devotion to worldwide standards, and our Fortune Global 500 partnerships prove we can satisfy tough demands. Our products are developed for American infrastructure and supported by technical competence and prompt customer service for the construction and industrial markets.

Future Trends Impacting the Dynamic Performance of Grooved Coupling Clamps

Technology continues to enhance coupling clamp grooveds. Keeping up with new innovations helps procurement teams plan investments.

Advanced Material Science

High-performance alloys improve service. Duplex stainless steels allow coupling clamp grooveds in offshore marine and desalination systems because to their corrosion resistance and strength. Graphite or fluoropolymer gaskets serve superheated steam and cryogenic applications exceeding EPDM limitations. These material breakthroughs expand markets and improve installation dependability.

Smart Coupling Technology

Sensor-equipped coupling clamp grooveds are pipeline monitoring's future. Strain gauges detect abnormal pressure changes that may indicate system issues. Temperature sensors detect hot patches indicating valve or insulation failure. Wireless data transmission to building management systems enables predictive maintenance. This developing technology promises to turn passive pipe junctions into active system diagnostic tools.

Sustainability and Environmental Compliance

Regulatory forces promote green manufacturing. After systems are retired, recyclable materials decrease landfill waste. Water-based coatings remove VOCs during manufacture. Energy-efficient production reduces carbon emissions. Sustainability certifications are competitive differentiators as procurement teams analyze supplier environmental standards alongside product requirements. Our commitment to continual development includes environmentally friendly production while preserving the quality and performance our clients need for vital infrastructure projects.

Conclusion

Premium coupling clamp grooveds outperform mechanical fasteners in dynamic performance. Modern plumbing systems need coupling clamp grooveds to provide secure, leak-free connections while absorbing vibration, thermal movement, and pressure changes. Understanding how material selection, installation, and design aspects affect long-term dependability helps engineers and procurement professionals provide reliable goods for challenging applications. coupling clamp grooved systems continue to evolve to meet changing technological and operational requirements while maintaining its industry-standard installation speed and maintenance.

FAQ

1. How do grooved couplings accommodate pipe movement without leaking?

As internal pressure rises, the elastomeric gasket compresses between the pipe surface and coupling housing to strengthen the seal. Flexible coupling clamp grooveds preserve this seal while allowing controlled angular deflection and restricted linear movement, unlike rigid connections that concentrate stress at fixed locations. Housing keys' mechanical hold on pipe grooves prevents separation when pipes move.

2. What factors determine the pressure rating of a grooved coupling?

Pipe diameter, housing strength, gasket compound, and bolt requirements determine pressure capacity. Larger diameters have lower pressure ratings because their surface area amplifies internal forces. UL/FM certifications provide minimum performance criteria, although manufacturers' ratings vary by design optimization and material selection.

3. Can grooved couplings handle high-temperature applications?

Gasket material determines temperature capacity. The majority of HVAC and municipal water systems use EPDM gaskets up to 230°F. This range is extended by steam and hot oil-specific chemicals. Metal housing components can sustain greater temperatures than gaskets, therefore thermal restrictions depend on sealing element requirements rather than structural capacity.

Partner with FLA Industrial & Trading Co., Ltd. for Superior Grooved Coupling Solutions

Quality and affordability shouldn't be compromised when buying pipe connection components. We create precision-engineered coupling clamp grooved goods to the highest standards with over four decades of experience. Our ductile iron and carbon steel couplings undergo rigorous testing ensuring compliance with ISO9001, CE, and UL/FM standards before shipment. We provide technical support from specification to long-term servicing for hardware distributors developing inventory, contractors managing complicated installations, and procurement engineers purchasing for industrial facilities. Discuss your needs at sales@flaindustrial.com and obtain comprehensive details between 24-48 hours.

References

1. American Water Works Association. "AWWA C606 Standard for Grooved and Shouldered Joints." Denver: AWWA Publications, 2020.

2. Underwriters Laboratories. "UL 213: Standard for Rubber Gasketed Fittings for Fire Protection Service." Northbrook: UL Standards, 2019.

3. National Fire Protection Association. "NFPA 13: Standard for the Installation of Sprinkler Systems." Quincy: NFPA Press, 2022.

4. ASTM International. "ASTM F1476: Standard Specification for Performance of Gasketed Mechanical Couplings for Use in Piping Applications." West Conshohocken: ASTM Publications, 2021.

5. Ductile Iron Pipe Research Association. "Grooved Mechanical Couplings for Ductile Iron Pipe Systems." Birmingham: DIPRA Technical Papers, 2018.

6. Factory Mutual Research Corporation. "FM Class 1920: Approval Standard for Grooved Pipe Couplings and Fittings." Johnston: FM Approvals, 2020.
