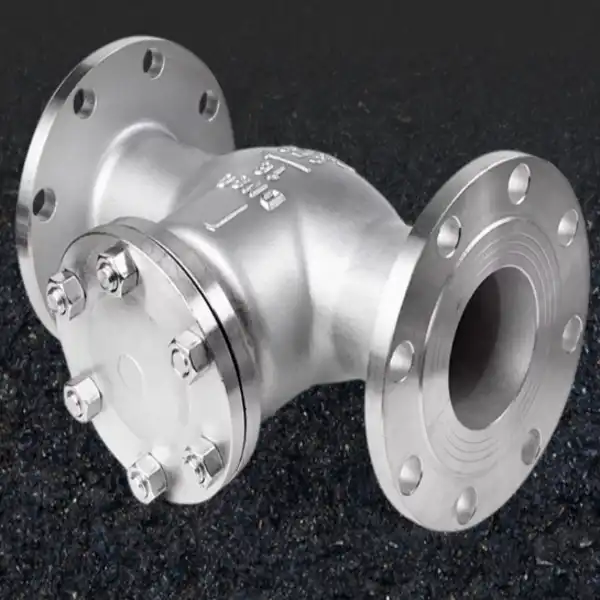

Why Choose Cast Steel Steam Check Valves for Steam Pipelines?

Cast steel steam check valves represent the optimal choice for steam pipeline applications because they combine exceptional thermal stability, structural durability, and reliable backflow prevention in demanding high-temperature environments. Built from precision-cast carbon steel or alloy steel materials meeting ASTM standards, these valves automatically prevent reverse flow that could damage boilers, turbines, and pumps. With pressure ratings from Class 150 to Class 2500 and temperature capabilities reaching 425°C, they deliver long-term performance in industrial steam systems while maintaining compliance with ASME B16.34, API 6D, and ISO certifications that global procurement teams require.

​​​​​​​

Specifications
Model (DN)	Type	Connection	Pressure Rating	Temperature Range
DN50	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20C to 425°C
DN50	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20C to 425C
DN50	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20C to 425C
DN65	National Standard Medium Body	Flanged/Threaded	PN16-PN40	-20C to 425C
DN65	National Standard Large Body	Flanged/Threaded	PN16-PN40	-20C to 425C
DN65	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20C to 425°C
DN80	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN80	National Standard Large Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN80	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20C to 425C
DN100	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN100	National Standard Large Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN100	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	-20C to 425C
DN125	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN125	National Standard Large Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN125	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20C to 425C
DN150	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN150	National Standard Large Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN150	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20C to 425C
DN200	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN200	National Standard Large Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN200	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20C to 425C
DN250	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN250	National Standard Large Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN250	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20C to 425C
DN300	National Standard Medium Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN300	National Standard Large Body	Flanged/Threaded	PN16-PN40	20C to 425C
DN300	National Standard Heavy Body (Thickened)	Flanged/Threaded	PN16-PN40	20C to 425C

Understanding Cast Steel Steam Check Valves

What Defines a Steam Check Valve?

A Cast Steel Steam Check Valve is a special kind of flow control part that only lets steam move in one way and stops backflow on its own. Unlike valves that are operated by hand, these devices use an internal disc mechanism to respond dynamically to changes in steam pressure. When the steam runs in the right direction, the disc opens. When the flow stops or changes directions, the disc shuts under its own weight or the force of a spring. This makes a tight seal that keeps equipment upstream from getting damaged.

Core Operational Principles

The valve works by following basic rules of fluid dynamics. As steam enters the valve body, the disc moves away from its seat because of the difference in pressure. This lets the flow go through without any problems. The disc goes back to its protected state when the forward flow slows down or stops. This can happen because of gravity or a mechanical spring. Because this reaction happens automatically and without any outside power or human help, these valves are very important safety features in steam systems that are left alone. Stellite 6 hard-facing, which is an alloy of cobalt, chromium, and tungsten that is 37–40 HRC hard, is usually used on the closing sides. This technical choice stops wire drawing, which is erosion caused by high-velocity steam leaks, and makes the product last longer in situations where the temperature of the steam is higher than 538°C.

Primary Valve Configurations

For each type of steam application, a different design method is needed. When installed horizontally, swing check valves have a disc that is flexible and pivots open during flow. This keeps the pressure drop to a minimum. Lift check valves work reliably in vertical pipelines with upward flow because they have a disc that moves vertically inside the valve body. Dual-plate wafer designs allow for small setups between flanges, which makes them ideal for places with limited room. When the flow rate changes, hitting and water hammer effects are lessened by tilting disc designs. Knowing these differences in structure helps engineers match the right valve type to the right operating conditions, which ensures the best performance and longest life.

Advantages of Cast Steel Steam Check Valves in Steam Pipelines

Superior Material Performance Under Extreme Conditions

When it comes to high-pressure, high-temperature steam environments, cast steel is the best. Grades of carbon steel like ASTM A216 WCB can handle temperatures up to 800°F and still keep their shape. Some types of alloy steel, like WC6, WC9, and C12A, can withstand temperatures above 1000°F and don't bend or turn graphite, which can damage valve performance over time. Cast iron alternatives aren't as good because they don't have the tensile strength needed for superheated steam applications and break easily when heated and cooled many times.

Cast steel's metallurgical features allow for thinner wall sections without losing safety gaps. This makes the valve lighter and easier to install. Stainless steel options are better at resisting corrosion in systems that tend to collect condensation, but they cost more to make. When procurement experts look at long-term value, they find that in most industrial steam uses, cast steel is a better compromise between performance needs and budget concerns than luxury alloys.

Extended Service Life and Reduced Maintenance

When properly defined, Cast Steel Steam Check Valves will work reliably for decades with little maintenance. The strong design can handle both mechanical wear from moving discs and heat stress from changes in temperature. Even after thousands of rounds of operation, hard-faced seating surfaces can still shut off tightly. This lowers the risk of leaks that could hurt the safety and efficiency of the system. Bronze or iron valves need to be rebuilt more often than cast steel units, which stay the same size and work well as seals for their whole life.

Less downtime and fewer extra parts mean less work for maintenance teams. The automatic operation of the valve gets rid of the problems that often happen with powered control valve actuators. Instead of checking every three months, inspections can happen once a year or twice a year, which frees up maintenance staff to do other important tasks. This dependability directly leads to lower operational costs and higher plant availability metrics that procurement managers keep a close eye on.

Compliance and Certification Standards

Global industrial operations need tools that meet well-known standards for safety and performance. The pressure-temperature values on our Cast Steel Steam Check Valves are in line with ASME B16.34, the pipeline valves meet API 6D, and the steam service meets BS 1868. The manufacturing method follows the rules for ISO9001 quality control, which makes sure that all batches of Products" target="_blank" style="color:blue" >products have the same qualities. The CE mark shows that the product meets European safety standards, and the UL and FM marks show that it works well in fire protection situations.

These approvals give buying teams proof that valves meet engineering requirements without having to go through a lot of qualification testing. For Cast Steel Steam Check Valve, when project requirements include industry standards, approved valves speed up the approval process and lower the time it takes to buy something, and the paper trail helps with regulatory compliance checks and liability management programs that risk management teams need. When project requirements include industry standards, approved valves speed up the approval process and lower the time it takes to buy something. The paper trail helps with regulatory compliance checks and liability management programs that risk management teams need.

Common Issues and Maintenance Tips for Cast Steel Steam Check Valves

Identifying Typical Failure Modes

Even valves that are well-designed can have problems when they are used. Most of the time, leakage past the disc seat is caused by particles getting into the system or covering surfaces wearing down. Valve rattling means that the disc is too small or the flow speed is too slow to keep it stable. When corrosion products join moving parts together, or when heat expansion causes dimensional confusion, sticking happens. When condensate slugs reverse suddenly in systems that aren't set up right, water hammer damage shows up as cracked bodies or bent disc arms.

If you notice these signs early, you can stop chain failures that affect equipment further down the line. A swing check valve clicking sounds like the disc is oscillating, which needs to be looked at for flow issues, or the valve needs to be replaced with one that has a tilted disc design. Changes in the pressure gauge upstream of the valve may show that the disc only partially opens, which could mean that the spring is wearing out in lift-type valves or the hinge is wearing out in swing patterns.

Practical Maintenance Protocols

Setting up regular cleaning plans can greatly increase the service life of Cast Steel Steam Check Valves. During planned plant shutdowns, the outside should be visually checked for steam leaks, corrosion, and structural deformation. Every 18 to 24 months, internal inspections let you check the condition of the seating surface and the disc's ability to move freely. As part of regular maintenance, the disc seat should be cleaned with soft brass brushes. Abrasive materials that damage hard-facing should not be used.

Different designs have different lubrication needs. Swing check valves need to have their hinge pins oiled with high-temperature grease that can handle steam service on a regular basis. Lift check valves need to have their stem and guide oiled so that they don't get stuck. When putting things back together, threaded bonnet joints should be treated with anti-seize powder to make upkeep easier in the future. Keeping records of what was found during inspections and maintenance tasks helps build a history that can be used to support future maintenance strategies.

Troubleshooting Diagnostic Procedures

When operational problems happen, systematic diagnosis quickly finds the root causes. The first step in investigating a leak is to test the seat's tightness with pressure. Next, the unit must be taken apart, and the sealed surfaces must be looked at visually. Using engineer's blue dye to measure the contact patterns between the disc and the seat shows any alignment issues or uneven wear. Finding binding spots or poor clearances is done by checking the disc's movement across its entire trip range.

To fix chattering, you have to figure out the flow rate and compare the real conditions to the manufacturer's specs. When put in pipes with low minimum flows, valves that are too big usually need to be shrunk or replaced with ones that close with the help of springs at lower speeds. If a valve is sticking, the internal clearances may need to be checked against the original specs to see if they are the right size. This could show thermal growth problems that need new materials or changes to the way the valve is installed.

How to Select and Install Cast Steel Steam Check Valves for Optimal Performance?

Critical Selection Parameters

Accurate system data is the first step in picking the right valve. Find the highest pressure and temperature that the system can handle, including short-term conditions like when it starts up or something goes wrong. Figure out the real steam flow rates and speeds, not just the pipeline's capacity, because the right valve size relies on keeping the disc opening force high enough. Find out what kind of steam it is—superheated, soaked, or wet—because that affects the choice of material and the hard-facing needs.

When choosing a pressure class, you need to think about the design pressure plus safety limits. Pressure-temperature limits are set by ASME B16.34. Class 300 valves are good for many industry uses, while Class 600 or higher valves are for high-pressure utility boilers. Along with pressure ratings, material compatibility also takes into account how acidic the condensation is, how likely it is to form oxygen pits, and how harsh the thermal cycling is. Carbon steel works well in many situations, but chromium-molybdenum alloys are better at stopping creep in temperatures above 950°F.

The choice of connection type strikes a balance between how easy it is to install and what the system needs. Flanged valves are good for places that need to be inspected regularly because they are easy to take off for upkeep. Threaded connections can be used in smaller hole situations where flanges can't because of lack of room, but they need to be installed carefully to avoid leaks. Welded links are lasting and are used in vital services where the chance of a leak must be kept to a minimum.

Installation Best Practices

When you install Cast Steel Steam Check Valves correctly, they will work reliably from the time you commission it on. Check that the flow direction marking on the valve body matches the direction of steam flow before installing. Place swing check valves so that the disc hinge is horizontal. This will help the valves close by gravity. Lift check valves must be installed vertically so that the flow goes up, unless they are spring-loaded and can be mounted horizontally. Allow enough space for the bonnet to be removed for future repair, usually 150% of the height of the bonnet above the valve.

Preparing the pipeline has a big effect on how well the valves work. Before installing the valve, clean the nearby pipes of welding slag, scale, and other debris. During the initial system setup, put in temporary strainers upstream to keep building debris from damaging the seating areas. Make sure the flange faces are clean, flat, and lined up correctly to keep the gasket from getting crushed and the body from being stressed. To make sure the gasket is compressed evenly, bolt the flanges together using the right torque sequences and values as shown in ASME B16.5.

Commissioning steps make sure that the work was done right. Slowly put pressure on the system while keeping an eye out for leaks at the connections. Turn on the upstream isolation valves slowly so that the disc can move in a controlled way while the flow starts up. Listen for sounds that don't belong, like grinding or water hammer. Write down the initial working factors, such as any drops in pressure and any other unusual conditions that you want to be able to compare later.

Customization and OEM Advantages

Most jobs can be done with standard catalogue valves, but complicated projects often need to be customised. Extended bonnets let you place valves in insulated pipes, which keeps the packing gland cool and easy to reach. Special trim materials are used to deal with acidic vapours or erosive particles. Systems that work between normal class breaks can use non-standard pressure values. For customisation to work, procurement teams must be able to communicate clearly with manufacturers about the specifications, including full documentation of the operating conditions and any special regulatory needs.

When you work with skilled OEM suppliers, you can get access to engineering tools that will help your project succeed. Based on decades of application knowledge, technical teams help with choosing valves, making sure they are the right size, and making material suggestions. Manufacturing flexibility helps keep projects on schedule by speeding up production when things on the critical path could delay the project's finish. Support after the sale, such as programs for spare parts and help with field service, lowers long-term ownership costs while keeping operational dependability.

Sourcing Cast Steel Steam Check Valves: Comparing Brands, Suppliers, and Procurement Strategies

Evaluating Manufacturers and Suppliers

There are many makers of valves in the global market, and their skills and reputations vary. Established companies that have been in business for decades usually have strict quality control systems and a lot of testing facilities. Certification to ISO9001 shows dedication to quality management, and other certifications, such as API 6D Monogram or ASME Code stamps, show the ability to meet strict industry standards. Facility surveys or reports from a third party should be used by procurement teams to check the manufacturer's skills.

Choosing a supplier is more than just choosing a good product; it also has to do with money issues. Lead times are very different between manufacturers, which makes it hard to plan projects and keep track of inventory. Minimum order amounts affect how things are bought, especially for smaller sites that only need a few valves. Shipping costs and delivery times are affected by where something is located, but global supply chains have made these factors less important. Respondent technical help and clear communication lines are invaluable when reviewing specifications and solving problems. This is why supplier ties are important for more than just buying products.

Procurement Channel Optimization

Different organisations need different acquisition strategies to meet their needs. When you buy directly from the maker, you get the best prices on big orders and can talk to the engineering teams about making changes. Authorised dealer networks offer local stock, faster shipping, and the ability to place orders for a number of different product lines at once. Catalogues of industrial supplies are useful for maintenance and repair jobs that need items right away and don't care too much about price. When procurement managers know about these channel traits, they can make the best sourcing decisions that balance cost, delivery, and service needs.

Bulk purchasing programs lower unit costs by promising to buy a lot, but they need accurate demand forecasting and the ability to manage inventory. Long-term supply deals make sure that prices stay stable and that capacity is allocated during times when the market is short. Just-in-time delivery plans keep working capital from getting stuck in inventory as much as possible while still expecting reliable performance from suppliers. To weigh these choices, you need to look at how much you buy, how much cash you have, and how much risk you are willing to take when there are supply interruptions.

Value of Experienced Manufacturing Partners

When it comes to making valves, FLA Industrial & Trading Co., Ltd. has almost 40 years of experience and has set up quality systems and process controls that make sure the products always work well. Our factories use cutting-edge casting methods, precise machine centers, and a wide range of testing tools to make sure that every valve works properly before it is shipped. The company's ISO9001, CE, UL, and FM certifications show that it is dedicated to meeting the world quality standards that buying requirements require.

When you work with well-known manufacturers, you can get access to expert tools that will help your project succeed. Engineering teams help choose the right Cast Steel Steam Check Valves for each application by comparing working conditions to the product's capabilities to make sure the right standard is met. Manufacturing flexibility lets customers make changes that meet the specific needs of each project without having to wait longer for parts to arrive. After-sales assistance, such as expert troubleshooting and spare parts programs, adds value after the initial purchase and lowers the total cost of ownership over the life of the valve.

Conclusion

When used in pipelines, Cast Steel Steam Check Valves improve reliability, safety, and operational efficiency in a way that can be measured. The qualities of cast steel make it better at handling high temperatures and pressures than other materials. Also, automatic operation gets rid of the failure modes that come with driven actuators. If you choose the right valve, taking into account its pressure rating, temperature limits, flow characteristics, and installation needs, it will work perfectly for decades. When you work with experienced makers that offer full certifications, expert support, and reliable delivery, you can improve your purchasing strategies and lower the risks in the supply chain that can delay projects and stop operations.

FAQ

What maintenance intervals do cast steel steam check valves require?

Visual checks of the outside of the plant should happen when it is shut down on time, which is usually every six to twelve months. Every 18 to 24 months, based on how often the cleaning is done, disc and seat condition should be checked internally. Systems that use clean, superheated steam may be able to go longer between inspections, but systems that use wet steam or dirty condensate need to be inspected more often.

Can these valves handle superheated steam conditions?

Cast Steel Steam Check Valves made of carbon steel with an ASTM A216 WCB rating work consistently up to 800°F. For uses above this temperature, you need to use WC6, WC9, or C12A alloy steel materials that don't bend easily and keep the structure's stability above 1000°F. Stellite 6 metal hard-faced bench surfaces stop the damage that comes from high-velocity, superheated steam erosion.

What factors influence valve pricing?

The main thing that affects cost is the type of material used. Carbon steel is the least expensive option, while alloy steels cost more because they can withstand high temperatures. From Class 150 to Class 2500, the cost goes up gradually because the pressure class affects the wall thickness and the difficulty of making. Final prices are also affected by the size of the valve, the type of link, and any customisation needs.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Steam Valve Solutions

To get the most out of your steam pipeline systems, you need valves that are designed to work well and are backed by excellent manufacturing. As a reliable Cast Steel Steam Check Valve manufacturer with almost 40 years of experience, we give you certified products that meet the ASME, API, and ISO standards for your needs. Our engineering team helps with applications to make sure the right valve is chosen, and our production skills can meet both standard and custom needs with short wait times. You can talk to our sales team about your project needs, get detailed specs, or get quotes by emailing sales@flaindustrial.com. Our quick customer service and on-time product delivery help procurement professionals, engineering firms, and manufacturing sites all over the United States keep their operations running safely and smoothly.

References
