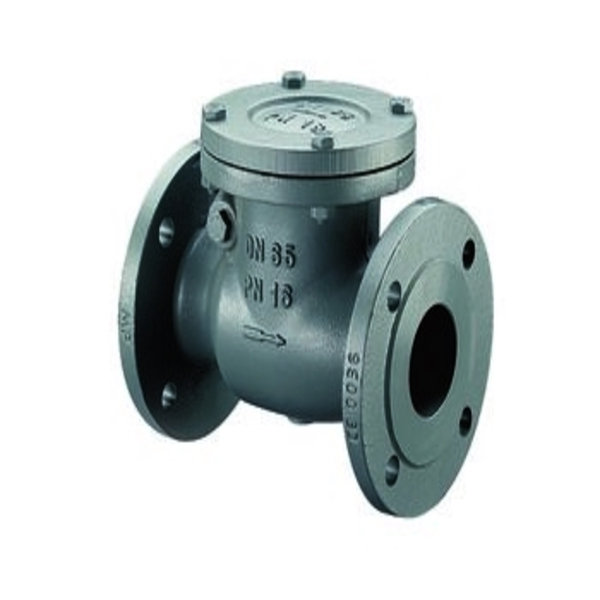

6 Swing Check Valve: Durable Valves for Industrial & Water System Applications
2026-07-14 10:37:16
When reverse flow causes pipeline systems to fail, the costs go beyond fixing the broken equipment. They also include lost output time, safety risks, and bad names. A 6 swing check valve solves this important problem by stopping backflow in pipes automatically, ensuring fluid movement in only one direction without any help from a person or outside power. Because it has a hinged disc system that reacts quickly to changes in pressure, this valve keeps pumps, compressors, and whole pipeline networks from being severely damaged. If you know how these valves work, you can make smart purchases that improve operating efficiency, whether you're in charge of a municipal water treatment plant, an industrial manufacturing plant, or a fire protection system.
Specification |
|||
| Model(DN) | Type | Material Options | Connection Type |
| DN50 | National Standard Medium Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN50 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
| DN50 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
| DN65 | National Standard Medium Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
| DN65 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN65 | National Standard Heavy Body(Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
| DN80 | National Standard Medium Body |
Cast Iron / Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN80 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN80 | National Standard Heavy Body (Thickened) | Cast Iron/ Stainless Steel/ Carbon Steel | Flanged / Threaded |
| DN100 | National Standard Medium Body |
Cast Iron / Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN100 | National Standard Large Body | Cast Iron Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN100 | National Standard Heavy Body (Thickened) | Cast Iron Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN125 | National Standard Medium Body | Cast Iron / Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN125 | National Standard Large Body | Cast Iron/ Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN125 | National Standard Heavy Body (Thickened) | Cast Iron/ / Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN150 | National Standard Medium Body | Cast Iron / / Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN150 | National Standard Large Body | Cast Iron/ Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN150 | National Standard Heavy Body (Thickened) | Cast Iron/ / Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN200 | National Standard Medium Body | Cast Iron/ / Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN200 | National Standard Large Body | Cast Iron/ / Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN200 | National Standard Heavy Body (Thickened) | Cast Iron/ Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN250 | National Standard Medium Body | Cast Iron/ Stainless Steel/ Carbon Steel | Flanged / Threaded |
| DN250 | National Standard Large Body | Cast Iron/ Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN250 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
| DN300 | National Standard Medium Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN300 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
| DN300 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
Understanding Swing Check Valves: Principles and Advantages
How Swing Check Valves Operate?
A disc that is attached to a hinge pin inside the valve body is what makes a 6 swing check valve work. Pressure pulls the disc away from the seat when fluid moves in the right direction. This lets the fluid flow freely. Gravity and reverse pressure push the disc back against the seat when flow stops or turns around. This makes a tight seal that stops backflow. This automatic operation doesn't need power, pneumatic controls, or help from a user. This makes it very stable for use in continuous industrial operations.
The standard bore size of 6 inches (DN150) can handle large amounts of flow with little pressure drop. The full-bore design keeps noise low, which makes pumping devices more energy efficient. This is especially helpful in situations where every percentage point of pressure loss means higher costs over months and years of constant use.
Key Advantages for Industrial Applications
Swing check valves give you measurable benefits that have a direct effect on your bottom line. Their simple mechanical design means that there are fewer parts that can break, which means that they don't need to be fixed as often and don't cost as much to fix. Construction companies like this reliability because parts that work regularly on-site setups don't need to be checked by trained techs on a regular basis.
Another big benefit is that it lasts a long time. The strong design can handle hydraulic shock better than other types of valves, which protects both the valve and the main equipment around it. Hardware sellers need goods that last a long time when they buy them to resell because it cuts down on warranty claims and keeps customers coming back.
These valves are good for large-scale water transport networks and industrial process systems because they can handle high flow rates well. When oriented correctly, the design can handle both horizontal and vertical installs, giving designers and people who are upgrading systems more options.
Types and Materials of Swing Check Valves: Tailoring Solutions to Your Needs
Connection Types and Installation Methods
For each job, a different way of connecting is needed. Flanged 6 swing check valves have raised-face flanges that connect securely to matched pipeline flanges. This makes the links safe enough for high-pressure uses. This kind works well in permanent setups that need to be accessed for repair every once in a while. Though they usually can't handle as much pressure, threaded joints are an option for smaller systems or situations where welding isn't possible.
The type of connection you choose affects how long it takes to install and how easy it is to do upkeep in the long run. When choosing connecting methods, procurement managers should think about the pipeline system that is already in place and any plans for future changes. With flanged connections, technicians can take valves off and repair them without having to cut pipes. This cuts down on downtime during maintenance rounds.
Material Selection for Optimal Performance
Choice of material for a 6 swing check valve has a big effect on how long a valve lasts and whether it works in certain settings. For normal water uses and mild temperatures, cast iron is a very cost-effective material. Because of how it casts, it can have complicated internal shapes that make the flow better. Cast iron is often chosen by cities for water distribution systems because it doesn't rust and is easy to work with.
Valve made of stainless steel doesn't rust in harsh chemical conditions or high-temperature situations. Stainless steel is good for chemical processing plants and food-grade systems because it is harmless and easy to clean. The material doesn't break down when the temperature changes, so it can be used in steam service and thermal cycle situations.
For high-pressure uses, like oil and gas transport pipes, carbon steel is stronger than other materials. It can handle stress from pressure spikes and water hammer events that would break down lighter materials because of its mechanical features. The material can be covered with different protective layers that make it more resistant to rust in certain conditions.
In order to choose the right material, you need to look at the liquids being worked with, the temperature ranges, the pressure needs, and the climate it will be exposed to. When plumbing professionals work on HVAC systems, cast iron might be the best choice because it balances performance and cost. On the other hand, industrial facilities that work with chemicals that eat away at metal would choose stainless steel, even though it costs more at first.
Comparing Swing Check Valves with Other Valve Types for Informed Decisions
Structural Differences That Matter
Lift check valves have a disc or piston inside the valve body that moves vertically and is guided. They work well in smaller sizes, but because of how they're made, they make flow more difficult than swing check valves. When the 6 swing check valve is open, it keeps the full-bore flow line. This means that there are fewer pressure drops and lower pumping costs over the life of the valve.
A spherical closing part that fits against a conical surface is used in ball check valves. They react quickly when the flow changes directions, but they may talk in systems where the flow changes directions often. The swing design's smooth stopping action lowers noise and mechanical stress, which makes it last longer in situations with variable flow.
It is possible for wafer check valves to fit between flanges without having to add extra bolts to the valve body itself. This design saves room and works well in small spaces, but it can't handle as much pressure as flanged swing check valves. When engineers choose tools for high-pressure industrial processes, they look for standard swing designs that have been shown to keep pressure in check in the past.
Performance and Maintenance Considerations
Different types of valves have very different maintenance needs. Swing check valves have parts inside that can be reached, so the seat can be resurfaced and the disc can be replaced without any special tools. The bolted bonnet design lets workers repair the valve while it is still in the waterway. This is called "top-entry maintenance." This makes servicing faster than with welded-bonnet systems, which need the valve to be taken out completely.
Ratings for pressure are another important way to compare things. Depending on the building requirements, the valve can handle ASME Class 150 through Class 2500 grades. It includes a wide range of uses in both businesses and cities, from low-pressure drainage systems to high-pressure process lines. Knowing the highest pressure that your system can handle, including any possible surges, helps you choose the right valves and keep safety gaps throughout the equipment's lifetime.
Flow efficiency measures for a 6 swing check valve show differences in success in real-world settings. The low cracking pressure of the swing check valve makes it easy to open at low flow rates. This lowers the pumping energy needed to keep the system running. This efficiency builds up over years of use, saving real amounts of energy that make the original investment worth it.
Installation, Maintenance, and Troubleshooting of Swing Check Valves
Proper Installation Procedures
Whether your 6 swing check valve lasts for decades without breaking down or becomes a care nightmare depends on how well it was installed. First, make sure you know which way the flow is going. Manufacturers mark valve bodies with signs that are cast or stamped on them. Installing a check valve backwards makes it useless, which is a mistake that happens more often than people in the business would like to admit.
Position is very important. Most of the time, horizontal placements work best because they let gravity help the disc close. For vertical systems, the flow must go up so that the difference in pressure and gravity work together instead of against each other. When you put a swing check valve in a downward vertical flow position, the disc stays open all the time, which defeats the whole point of the valve.
An check before installation finds possible problems before they become working ones. Check the inside for shipping damage, make sure the disc can move easily on its hinge pin, and make sure the gasket surfaces are still clean and unbroken. Hardware stores should stress these steps to customers so that installations don't go wrong and lead to guarantee claims.
Maintenance Best Practices
Routine repair plans keep things from breaking down without warning. Every month, the outside should be inspected visually to see if there are any leaks around the seal or contacts on the bonnet. These early warning signs show that problems are starting to show up and can be fixed for a low cost before they get worse and need emergency fixes.
Internal checks done once a year let you see how worn out key parts are. Take off the hood to check the disc seating surface, the state of the hinge pins, and the stability of the interior coating. Seats with light scoring can be fixed by lap-planning, but seats with heavy wear need to be replaced. Having extra discs and seals on hand lets you fix things quickly, so output doesn't stop.
Different designs have different lubrication needs, but for most swing check valves, lubricating the hinge pin every so often is a good idea. Use oils that are safe for the fluid and the temperature range where they will be used. Lubricants that don't work well together run away or break down quickly, speeding up wear instead of stopping it.
Troubleshooting Common Issues
Noise during operation is often a sign of disc chatter, which is caused by not enough flow rate. The disc quickly opens and closes parts of itself, making hammering sounds and speeding up wear. Increasing flow rates, putting a spring-assisted disc, or adding external damping devices are some solutions. Fixes that don't solve the real problem can't be used until the root cause is correctly identified.
It's possible that there is dirt stuck between the disc and the seat, or the seal is worn down and can't work properly. Take the valve apart, clean every surface well, and look for any damage. For small flaws, lap surgeries can fix them, but for major damage, new parts are needed. This problem is much less likely to happen if fluid systems are kept clean through proper filtering.
Not closing all the way on a 6 swing check valve is a major safety issue that needs to be fixed right away. Some of the things that could be causing it are rust in the hinge pins, disc warping from heat stress, or an obstruction from something else. Systematic review finds the exact cause of the failure, which helps with figuring out what needs to be done to fix it. Writing down these failures helps the school learn more, which leads to better buying guidelines and upkeep methods in the future.
Purchasing and Procuring Swing Check Valves: Tips for B2B Clients
Strategic Procurement Approaches
Procurement that works well matches short-term needs with long-term benefits. Purchasing managers shouldn't just look at the initial purchase amount; they should also look at the total cost of ownership. A 6 swing check valve that costs more at first but doesn't need to be fixed or replaced for 20 years is often better value than a cheaper one that needs to be fixed or replaced often.
Ordering in bulk gives you more power to get better deals from makers and wholesalers. Contractors who are working on multiple jobs at the same time can get bulk discounts by combining orders. This plan also makes sure that all job sites use the same product specs, which makes managing upkeep and spare parts easier.
Working directly with suppliers has benefits that go beyond price. When you build partnerships with supply sources, you can get technical support, custom specs, and engineering help. Instead of having someone read through specification sheets and answer questions, questions are answered by people who know the product inside and out.
Evaluating Suppliers and Manufacturers
Dependability of suppliers affects how well projects stay on schedule and within price. Check out possible partners' inventory levels, wait times for both standard and custom goods, and how often they've delivered on time in the past. A seller with a lot of stock can ship right away to meet pressing replacement needs, and the ability to make things to order meets the specific needs of each project.
Quality marks are direct proof of how well a product is made. Getting ISO9001 certification shows that you are dedicated to quality management systems that regularly make goods that meet standards. CE marking means that the product meets European safety standards. This is important for U.S. projects where the tools could be used in other countries. UL and FM listings are very detailed when it comes to fire protection uses, which is very important for installations that need approval from the right authority.
Excellent providers are different from just-okay ones because they offer technical help. Can their engineering team help with flow estimates, pressure drop analyses, and figuring out which materials will work with each other? Do they have 3D CAD models that work with your design software? These services speed up the development of projects and cut down on mistakes in the specifications that lead to expensive repairs.
The image that has been built up over many years is very important. Every product made by FLA Industrial & Trading Co., Ltd. is backed by relationships with Fortune Global 500 companies and almost 40 years of experience making things. This past shows steady quality and dependability, which is something that newer companies in the market can't say.
Conclusion
The 6 swing check valve is an important investment in the reliability and working economy of the pipeline system. Its automatic backflow prevention keeps expensive equipment safe, stops pollution, and keeps the system pressure steady without needing extra power or constant attention. By understanding how swing check valves work, comparing different types and materials, and following the right installation and repair procedures, you can get the most out of these important parts. When buying valves for fire protection systems, industrial processes, or local water systems, it's important to make smart choices based on technical needs and supplier skills to make sure the projects will be successful in the long run. Pipeline systems that work reliably for decades are made with tried-and-true technology, high-quality materials, and relationships with dependable suppliers.
FAQ
What size piping requires a 6 swing check valve?
A 6 swing check valve can be used with pipes that have a standard size of 6 inches (DN150). To get the right size, you need to look at flow rates, fluid movement, and system pressure to make sure the valve opens all the way when it's supposed to and firmly closes when the flow stops. To keep the disc from buzzing, engineers figure out the minimum flow speeds that are needed based on the valve's specific design factors.
Can swing check valves handle high temperatures?
Temperature powers depend on the choice of material. Most cast iron valves can handle temperatures up to 450°F, which makes them good for most steam and water uses. Different types of steel, like carbon steel and stainless steel, can handle much higher temperatures, with different values based on the metal and the pressure rating. Always make sure that the temperature requirements match the needs of your product, taking into account both normal working conditions and possible upset situations.
How do I prevent water hammer with check valves?
Water hammer can be caused by standard swing check valves that slam shut when the flow changes quickly. Surge pressures are greatly reduced by designs that use springs to help the close process, external lever and weight systems, or hydraulic dashpots. System design also matters—slowly turning off pumps, surge tanks, and making sure pipes are the right size all help reduce water hammer, no matter what kind of valve is used.
Partner with FLA Industrial for Your Check Valve Needs
Quality parts made by experienced makers are the first step toward reliable flow control. The Products" target="_blank" style="color:blue" >products">6 swing check valves made by FLA Industrial & Trading Co., Ltd. are precisely designed and made to strict standards. They have ISO9001, CE, UL, and FM certifications to back them up. Our collection of 6 swing check valves is over 2,000 tons, so we can ship standard specs right away. For unique needs, our engineering team can come up with custom solutions in 7–15 working days. We've been working with Fortune Global 500 partners in the US, Germany, and Australia for almost forty years, so we know the stresses that buying managers are under. To help, we offer technical knowledge, low prices, and quick service. You can talk to our team at sales@flaindustrial.com about your unique application, ask for full technical documentation, or get price quotes for large orders from a reliable 6 swing check valve supplier.
