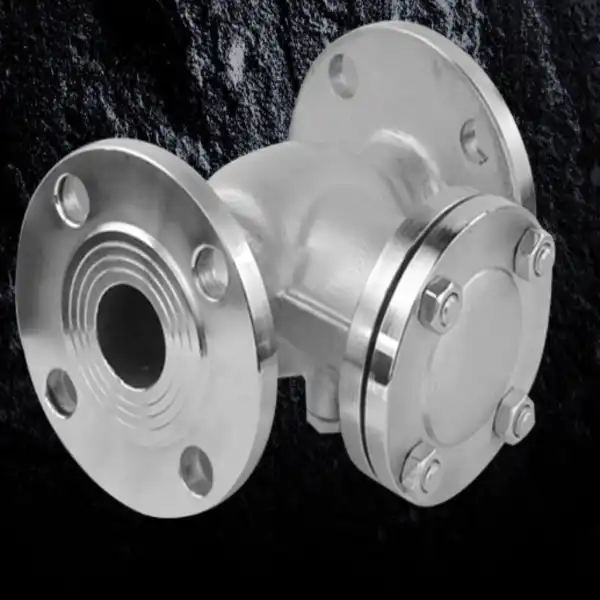

When pipeline systems experience backflow, the consequences can be catastrophic—equipment damage, contamination, and costly downtime. The 6 Swing Check Valve addresses these challenges head-on with a straightforward yet ingenious mechanism. Featuring a hinged disc that automatically opens with forward flow and closes when flow reverses, this 6-inch nominal bore valve protects pumps, compressors, and entire pipeline networks from reverse rotation and hydraulic shock. Built from durable materials like cast iron, stainless steel, and carbon steel, these valves deliver uncompromising performance across water treatment, HVAC, fire protection, and industrial processing applications. Their full-bore design minimizes pressure drop while maximizing flow efficiency—making them indispensable for operations demanding reliability and safety.
Specification |
|||
| Model (DN) | Type | Material Options | Connection Type |
| DN50 | National Standard Medium Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
| DN50 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN50 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN65 | National Standard Medium Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN65 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN65 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN80 | National Standard Medium Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN80 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN80 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN100 | National Standard Medium Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN100 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
| DN100 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
| DN125 | National Standard Medium Body | Cast Iron/ Stainless Steel/ Carbon Steel | Flanged/ Threaded |
| DN125 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN125 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN150 | National Standard Medium Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN150 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN150 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN200 | National Standard Medium Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN200 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN200 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN250 | National Standard Medium Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN250 | National Standard Large Body | Cast Iron / Stainless Steel / Carbon Steel | Flanged / Threaded |
| DN250 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
| DN300 | National Standard Medium Body | Cast Iron/ Stainless Steel/ Carbon Steel | Flanged / Threaded |
| DN300 | National Standard Large Body | Cast Iron/ Stainless Steel/ Carbon Steel | Flanged / Threaded |
| DN300 | National Standard Heavy Body (Thickened) | Cast Iron / Stainless Steel / Carbon Steel | Flanged/ Threaded |
Understanding Swing Check Valves: Working Principles and Industrial Applications
How Swing Check Valves Operate?
The beauty of swing check valves is how simple they are to use. When fluid runs in the right direction, a disc on a hinge pin moves away from the seat. Gravity and the difference in pressure work together to keep the disc closed against the seat when the flow stops or turns around. This automatic reaction doesn't need any outside power or help from an operator, which makes these valves very reliable in settings where they are used all the time.
Why the 6-Inch Size Matters for Industrial Systems?
Choosing the right valve size has a direct effect on how well the system works. A 6 Swing Check Valve can handle large amounts of flow while still being easy to install. This size works great for medium-sized pumping stations, commercial cooling loops, and city water systems. Engineers can make the best pipeline layouts without losing performance by finding the right mix between flow capacity and physical size. Purchasing managers like this because it makes it easier to standardize inventory across different types of projects.
Key Industries Relying on Swing Check Technology
Fire protection systems are one of the most important uses. By installing these valves at the places where pumps let water out, the water flow stays the same throughout sprinkler networks. They keep cleaned water from moving back into contaminated areas, which is important for water treatment plants. Chemical processing companies use versions that don't rust so they can safely handle harsh media. HVAC contractors choose them for chilled water systems because they run quietly and need little upkeep, which saves money in the long run. Pipeline networks are useful in construction projects because they can stop backflow damage that costs a lot of money while the system is being set up and running.
Comparing Swing Check Valves with Other Check Valve Types
Pressure Drop and Flow Characteristics
Different types of check valves have different effects on how well a system works. When they are fully open, 6 Swing Check Valves let almost unlimited flow through because they have a full-bore design. Lift check valves, on the other hand, make the fluid flow through a smaller opening around the raised disc, which greatly increases the pressure drop. Even though wafer check valves are small and easy to install, they often cause turbulence that makes the system less efficient. Ball check valves work fast, but they can make noise when they're used in high-speed situations. When buying experts look at the total cost of ownership, they can see that swing check valves save money over the life of the valve because they use less energy.
Installation Space and Maintenance Access
In the real world, fitting limitations often decide which valve to use. For swing check valves to fully open, the disc needs to be able to move freely. Usually, this means that the tunnel needs to be longer than with compact chip designs. However, the trade-off has big benefits for maintenance. Most swing check valves have fixed bonnets that make them easy to reach from the top. Technicians can check, clean, or replace parts inside the valve body without taking it off the pipeline. When systems have to shut down for maintenance reasons, this feature is very useful. Facility managers like this design because it makes it easier to service switches that are in hard-to-reach places or work with pipes that have a big width.
Material Selection Based on Application Demands
Which one to choose from cast iron, stainless steel, and carbon steel depends on how it will be used, and for 6 Swing Check Valve, cast iron swing check valves are very cost-effective for municipal and standard water service applications with moderate temperatures and pressures, and stainless steel versions don't rust in places where chemicals are processed and can handle higher temperatures better, and in oil and gas uses, carbon steel can handle higher temperatures, and knowing these things about the material helps project engineers choose valves that balance the cost of the initial investment with the need for long-term durability and safety compliance. Cast iron swing check valves are very cost-effective for municipal and standard water service applications with moderate temperatures and pressures. Stainless steel versions don't rust in places where chemicals are processed and can handle higher temperatures better. In oil and gas uses, carbon steel can handle higher temperatures. Knowing these things about the material helps project engineers choose valves that balance the cost of the initial investment with the need for long-term durability and safety compliance.
Advantages and Maintenance Best Practices for Swing Check Valves
Core Performance Benefits
Modern manufacturing processes need tools that work reliably even when things go wrong. 6 Swing Check Valves have a number of benefits that work together to keep both tools and processes safe. Here are the main reasons why these valves are important for industrial pipe systems:
Automatic Backflow Prevention: The disc mechanism that is helped by gravity reacts right away to flow reversal without the need for sensors, actuators, or power from outside sources. This built-in dependability gets rid of the possible weak spots in electrically run systems.
Reduced Pressure Loss: When the disc is fully open, the flow line is clear, which means that less energy is used for pumping. Over many years of use, this efficiency edge cuts power costs by a large amount.
Water Hammer Mitigation: Standard swing check valves can cause water hammer if they close quickly, but models with external levers and counterweights can soften the closing action if they are chosen correctly. This feature keeps upstream equipment that is sensitive from damaging pressure surges.
Low Operational Noise: Compared to valve types that close quickly, the smooth swing action makes less noise and shaking. This trait is very important in places where noise control affects the health and safety of workers.
These advantages take care of the main concerns of site leaders, buying heads, and maintenance teams who need reliable flow control without making things more difficult to run.
Essential Maintenance Protocols
To make valves last longer, they need to be inspected and maintained regularly. Maintenance should be done at regular times based on the type of media and flow conditions. For clean water service, this is usually every six to twelve months; for abrasive or contaminated fluids, it should be done more often. Visual checks look for leaks on the outside around the gasket on the bonnet and the joints in the body. For an internal examination, the bonnet has to be taken off so that the disc state, hinge pin wear, and seat surface soundness can be checked. Cleaning gets rid of residues that might stop seals from working right or wear out too quickly. Hinge pins work more smoothly when they are oiled, but many new designs use materials that do this on their own. Addressing valve chatter, which is usually caused by not enough flow velocity, might mean changing some system settings or adding a valve with a different opening feature.
Troubleshooting Common Issues
Systematic diagnosis finds the reasons why valves don't work as they should when they don't. If there is leakage past the seat, it's usually because of scoring, debris stuck in the seat surface, or too much wear. If the process is noisy, it means that the disc is chattering because the flow is turbulent or not enough. It might not open all the way if the hinge pins rust or if dirt builds up on them. Each sign points to a different set of steps that need to be taken to fix the problem. Maintenance logs help facility teams find patterns that help them come up with preventative measures.
Installation Guidelines for Optimal Performance
Orientation and Positioning Requirements
Whether a valve works as it should or becomes a risk depends on how well it was installed. When the disc hinge is at the top of a horizontal duct, 6 Swing Check Valves work best. This position lets gravity help close the gap when the flow stops. If the flow is going up, vertical installation is only okay because the difference in pressure must be greater than the disc weight and spring force, if they are present. When you install the valve so that downward flow is in vertical lines, the disc stays closed even when the valve is working normally. To avoid expensive mistakes in the field, procurement teams should make these orientation needs clear during project planning.
Flange Standards and Connection Compatibility
By matching the size of the valve lip to the standards for the pipeline, installation delays can be avoided and the seal is properly maintained. Most uses in North America are governed by ASME B16.5 standards, which list the bolt circle diameters, bolt hole numbers, and face-to-face measurements for each pressure class. The engineering teams have to make sure that the chosen 6 Swing Check Valve meets the same standards as other pipeline parts that are already in place. For smaller systems, threaded connections are an option. But flanged connections are most common in industrial settings because they are more reliable and easier to access for maintenance.
Common Installation Mistakes to Avoid
Several construction mistakes hurt the safety of the system and the performance of the valves. Most of the time, people make the mistake of placing the valve backward, which stops the disc from moving. Not enough upstream or downstream space can make it hard to do repair or stop the valve from working. When heavy valves are not supported properly, stress builds up that can crack pipeline joints. If you forget to take off the protective shipping caps before starting up, you could damage the internal parts. To keep contractors from making these mistakes, they use detailed installation plans and clear directional marks on the valve bodies. Pre-installation talks that stress these important points are helpful for site managers.
Strategic Procurement Considerations for Industrial Buyers
Evaluating Supplier Credentials and Product Specifications
Decisions about where to get things have long-term effects on the success of a project and the continuity of operations. Hardware wholesalers and purchasing managers should give more weight to providers whose quality management systems can be checked. Getting ISO9001 approval shows that you have organized ways of designing, making, and testing your Products" target="_blank" style="color:blue" >products. The CE mark shows that it meets European safety standards, and the UL and FM marks show that it works well in fire protection situations. In addition to certifications, looking at how things are made shows important differences. Precision casting, CNC machining, strict assembly protocols, and the use of protective coatings always result in valves that work better than those made with less advanced techniques.
Material Grade Verification and Pressure Rating Confirmation
The types of materials and standards that apply must be made clear in specification papers. Cast carbon steel that is good for general use is called ASTM A216 WCB. ASTM A351 CF8M is a designation for cast stainless steel that is more resistant to rust. Pressure ratings based on ASME classifications—Class 150, 300, 600, and higher—make sure the valve can handle the working conditions of the system with enough safety margins. Before accepting shipments, buyers should ask for material test reports and pressure test certificates to make sure they are in line with the rules.
Balancing Lead Times with Inventory Management
Timelines for projects often make it hard to meet both the need for quick access and the need for customization. Suppliers who keep a large inventory (at least 2,000 tons) can ship common designs right away, which helps meet tight building plans. Custom specs, like non-standard shapes or unique trim materials, usually take seven to fifteen business days to make. By agreeing to buy in bulk, you can speed up delivery for big jobs and lower the cost per unit. Early on in the sourcing process, procurement engineers should talk to suppliers about project timelines to make sure that their delivery capabilities match up with what is expected.
Technical Support and Engineering Assistance
Engineers who are provided by the supplier can help with complicated installations. Access to 3D design help helps project teams make sure that everything fits and there are no clearance issues before the equipment gets to the site. Technical teams that respond quickly and answer questions about specifications within 24 to 48 hours keep the bidding and procurement phases from being held up, which costs a lot of money. This support is especially helpful when customizing standard products for specific uses or fixing problems that come up when integrating new products with current ones.
Conclusion
For current industrial pipeline systems to work, they have to have reliable backflow protection. The 6 Swing Check Valve protects you by using tried-and-true mechanical principles that are made better by using high-quality materials and precise manufacturing. Procurement pros can make smart choices that protect equipment investments and keep operations running smoothly by knowing how these valves work, comparing them to other designs, and following the right steps for installation and maintenance. Whether they are used in fire protection systems, water treatment plants, or HVAC systems, swing check valves that are properly installed last for decades with little maintenance.
FAQ
Can swing check valves be installed in vertical pipelines?
Yes, but you need to be able to do critical orientation. When the flow goes up, the vertical installation only works because the 6 Swing Check Valve disc is lifted against gravity by the difference in pressure. If you install these valves so that the flow goes downhill, the disc will stay closed by gravity, which stops them from working properly. Before making final plans for fitting, you should always look at the valve's paperwork and orientation marks.
What causes valve chatter and how can it be prevented?
Chatter happens when the flow speed drops below the bare minimum needed to keep the disc fully open. The disc moves back and forth between partially open and closed positions, making noise and speeding up the wear on the hinge pins and seats. Increasing the flow rate of the system, putting a valve with lower starting pressure, or adding external damping devices are all possible solutions. During testing, facility managers should keep an eye on flow conditions to find noise and fix it before it does any damage.
How do I select between metal and soft seats?
Metal seats with hardened steel or stellite overlays can handle high temperatures, rough materials, and long service periods that are common in industrial processing settings. Soft chairs with PTFE or EPDM in them close better for clean water or gas service, but they can't handle as high of temperatures. The right seat material is chosen based on the application conditions, such as the type of media, the temperature range, and the acceptable leakage rates. To make sure the right valve configuration, the procurement specs should make these factors very clear.
Partner with FLA Industrial & Trading Co., Ltd. for Superior Valve Solutions
Getting the right 6 Swing Check Valve supplier who knows your operational challenges and delivery standards is the first step to getting reliable flow control. Each valve that FLA Industrial & Trading Co., Ltd. makes is the result of nearly 40 years of being a great manufacturer. Our large selection of more than 1,000 product specifications includes a wide range of material grades and pressure values to meet the needs of a wide range of applications. Advanced casting and machining techniques make sure that every valve meets exact size requirements and performance standards, which are confirmed by ISO9001, CE, UL, and FM certifications. We keep 2,000 tons of stock ready to ship right away, and special orders are finished in 7–15 business days. Our engineering team can help with 3D design and answer technical questions within 48 hours. They can help with your project from the specification stage all the way through commissioning. Email us at sales@flaindustrial.com to talk about your needs with seasoned experts who send high-quality goods at reasonable prices to partners all over the world.
