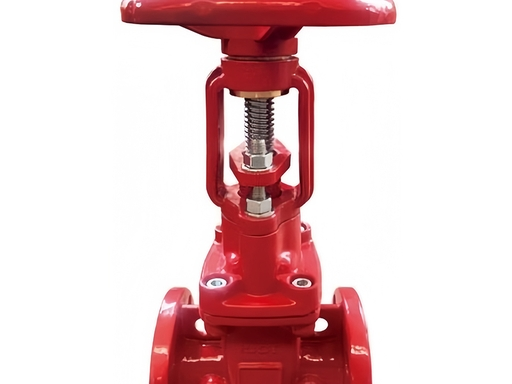

Fire Protection Flanged Valves: Ensuring Safety in Emergencies

When bad things happen, every second is important. Fire protection flanged valves are very important parts of fire suppression systems because they control the flow of water to fire hydrants and sprinkler systems in case of situations that need quick action. These special isolation parts have flanged end links that keep the structure strong even under high pressure. This makes sure that they work reliably in life-threatening scenarios. Each valve is made from cast iron, malleable iron, or carbon steel and goes through a lot of tests to make sure it meets UL and FM approval standards. In contrast to regular industrial valves, these safety-critical parts don't work at all when they're supposed to, so their design and quality control are very important for keeping people and property secure.

​​​​​​​

Specifications
Model (DN)	Valve Body Type and Rod Weight (kg)	Valve Body Length
DN40	National Standard Medium Body Steel Rod, 5.5 kg	Approx. 14.3 cm
DN40	National Standard Large Body Steel Rod, 7.5 kg	Approx. 16 cm
DN50	National Standard Body Steel Rod, 6.5 kg	Approx. 17.3 cm
DN50	National Standard Medium Body Steel Rod, 7.5 kg	Approx. 17.5 cm
DN50	National Standard Large Body Steel Rod, 9 kg	Approx. 17.2 cm
DN65	National Standard Body Steel Rod, 7.5 kg	Approx. 18.5 cm
DN65	National Standard Medium Body Steel Rod, 8.5 kg	Approx. 18.6 cm
DN65	National Standard Large Body Steel Rod, 10.5 kg	Approx. 18.5 cm
DN80	National Standard Body Steel Rod, 9 kg	Approx. 20 cm
DN80	National Standard Medium Body Steel Rod, 10.5 kg	Approx. 20 cm
DN80	National Standard Large Body Steel Rod, 12 kg	Approx. 19.7 cm
DN100	National Standard Body Steel Rod, 10 kg	Approx. 21.5 cm
DN100	National Standard Medium Body Steel Rod, 12.5 kg	Approx. 22.5 cm
DN100	National Standard Large Body Steel Rod, 17.5 kg	Approx. 22 cm
DN125	National Standard Body Steel Rod, 19 kg	Approx. 24.5 cm
DN125	National Standard Medium Body Steel Rod, 21 kg	Approx. 25 cm
DN125	National Standard Large Body Steel Rod, 24 kg	Approx. 25 cm
DN150	National Standard Body Steel Rod, 20 kg	Approx. 26 cm
DN150	National Standard Medium Body Steel Rod, 23 kg	Approx. 26.2 cm
DN150	National Standard Large Body Steel Rod, 29 kg	Approx. 26.3 cm
DN200	8-hole National Standard Body Steel Rod, 36 kg	Approx. 28 cm
DN200	12-hole National Standard Body Steel Rod, 36 kg	Approx. 28 cm
DN200	8-hole National Standard Medium Body Steel Rod, 40 kg	Approx. 28 cm
DN200	12-hole National Standard Medium Body Steel Rod, 40 kg	Approx. 28 cm
DN200	8-hole National Standard Large Body Steel Rod, 50 kg	Approx. 28.4 cm
DN200	12-hole National Standard Large Body Steel Rod, 50 kg	Approx. 28.4 cm
DN250	National Standard Medium Body Steel Rod, 70 kg	Approx. 32.5 cm
DN250	National Standard Large Body Steel Rod, 80 kg	Approx. 32.5 cm
DN300	National Standard Medium Body Steel Rod, 85 kg	Approx. 35 cm
DN300	National Standard Large Body Steel Rod, 111.5 kg	Approx. 35 cm
DN350	National Standard Large Body Steel Rod, 150 kg	Approx. 37.5 cm
DN400	National Standard Large Body Steel Rod, 175 kg	Approx. 40.5 cm
DN450	National Standard Large Body Steel Rod, approx. 251.5 kg	Approx. 430 cm
DN500	National Standard Large Body Steel Rod, approx. 340 kg	Approx. 45.5 cm
DN600	National Standard Large Body Steel Rod, approx. 450 kg	Approx. 50.7 cm

Understanding Fire Protection Flanged Valves: Definition and Function

Core Operating Principles in Emergency Response

Fire protection flanged valves work as walls that can be controlled in networks that use water to put out fires. The flanged design is the part of the valve that sticks out at each end and has bolt holes that line up with pipe flanges that are the same size. When the pump is turned on, system pressures can range from 175 PSI to 300 PSI. This mechanical connection method spreads stress across the whole joint surface instead of gathering it at threaded places. Whether it's a gate, butterfly, or ball valve, the flow is controlled by an internal disc or wedge that can be placed either perpendicular to or parallel to the water path.

These valves stay fully open when everything is working normally, letting water flow freely through the standpipe system. Fire protection experts carefully measure friction loss when they size pumps and pipes, and the full-bore design minimises it. When repair needs to isolate certain areas, workers either close the valve by hand or with actuators. This changes the flow of water without draining the whole network. This zoning feature is especially useful in high-rise buildings, where sectional separation keeps systems from shutting down when they don't need to.

Material Selection for High-Temperature Endurance

The type of cast iron, ductile iron, or carbon steel you choose has a direct effect on how well the valve works in a fire. Ductile iron, which is ASTM A536 Grade 65-45-12, has higher tensile strength than regular grey cast iron. This means it is less likely to break completely when exposed to sudden changes in temperature. The graphite lumps in ductile iron's microstructure make it more resistant to impact, which is very important when temperatures change quickly during fires.

Carbon steel versions have even more dynamic strength, which makes them good for places where there may be big changes in pressure, like systems that serve petrochemical plants or industrial buildings with Early Suppression Fast Response sprinklers. The layer on these valves that stops rusting does more than just stop rust. Coatings made of Fusion Bonded Epoxy that are usually more than 250 microns thick protect against rust from the outside and tuberculation from standing water inside. This safety is still very important because fire alarm systems can go months or even years without being used, which makes them perfect for rust if the surface isn't treated properly.

Certification Standards Ensuring Operational Reliability

Every part of making fire protection flanged valves has to follow international safety standards. When gate valves get UL 262 approval, it means they meet strict standards for materials, pressure testing, and operating cycling. If a valve is FM Approved under Class 1120 and 1130, it means it has been through an even more thorough evaluation process, which includes long cycle tests that mimic years of use. These approvals are more than just paper; they show that a third party has confirmed that the valve will work as it should when lives are at stake.

Getting ISO 9001 approval shows that a company is dedicated to maintaining quality control throughout the whole production process. By marking something with the CE mark, you can be sure that it meets European safety standards. This lets you sell your Products" target="_blank" style="color:blue" >products in other countries and shows that you followed standard testing procedures. For people who work in procurement, these licenses take away the guesswork by giving them clear standards to use when comparing goods from different sources. If a product has UL, FM, CE, and ISO certifications, it means that the company is serious about quality control and not just meeting the basic standards.

Types and Advantages of Fire Protection Flanged Valves

Comparing Valve Configurations for Fire Safety Applications

When they are fully open, gate valves let flow through without any problems, making them the most common type of fire safety. The resilient-seated design has a wedge that is completely covered in vulcanised EPDM rubber. This makes a seal that can handle small pieces of debris without affecting how the device works. OS&Y (Outside Screw and Yoke) configurations let you see where the valve is by raising the threaded stem when the valve opens. This way, emergency workers can quickly check the state without having to look at electronic monitoring systems.

Butterfly valves are a smaller choice that can be useful in mechanical rooms that don't have a lot of room for fitting options. The disc can turn 90 degrees from closed to open, so the motor doesn't have to move as far as it does with gate valves. This ability to act quickly is helpful in emergency situations, but the disc stays in the flow path even when it's open, which means that hydraulic formulas have to take that into account. The lug-style butterfly valve makes it easier to do repair because it lets the pipeline be taken out from further downstream without damaging the link between the valve and the pipe.

For important separation points, ball valves are the best choice. The circular closure element seals bubble-tight with little operating force, and the quarter-turn operation lets the lid close quickly in case of an emergency. Carbon steel ball valves with fire-safe seats keep the seal in place even if soft seals burn off in very hot conditions. This adds an extra layer of safety in high-risk areas. Because they are more expensive, though, they are usually only put in key places and not spread out across fire defence networks.

Structural Advantages of Flanged Connections

When it comes to fire safety, flanged joints have technical benefits that other ways of joining can't match. The bolt-tightened joint evenly applies clamping force around the pipe's diameter, making seals that won't leak and can handle vibrations from pump spinning and water hammer. When they need to be replaced, flanged valves are easy to take off without having to cut pipe sections or use heat that could damage nearby parts or set off sprinklers.

Pressure ranges from 150 PSI to 600 PSI to meet the needs of a wide range of systems in fire protection flanged valves. ANSI Class 125/150 flanges are used for normal business installs, and Class 300 flanges are used for high-pressure industrial settings. Standardised bolt patterns set by ASME B16.1 make sure that products from different makers can work together. However, procurement teams must make sure that valve flanges fit existing pipe standards. Mixing ANSI and PN metric standards needs expensive adapter flanges that can cause leaks.

The standard face-to-face measurements in ANSI B16.10 make sure that new valves fit perfectly into pipelines that are already in place. This consistency in dimensions cuts down on the work needed to build the system and on the time it needs to be shut down for fixes or retrofits. When flanges and body lengths are standardised, they can be used with any other part. This is very helpful when emergency repairs are needed for projects that can't wait.

Buying Guide: How to Choose the Best Fire Protection Flanged Valve

Matching Valve Specifications to Industry Requirements

When construction workers are looking for valves for new buildings, they put supply and certification compliance ahead of features that are unique to the building. Most business building codes can be met with standard 2-inch to 6-inch gate valves with ANSI 125 flanges. The UL rating gives the necessary proof for permit approval. The visual position sign of OS&Y stems is liked by site managers because it makes system acceptance testing and the regular checks required by NFPA 25 easier.

When plumbing and HVAC workers put in fire safety systems in buildings that are already there, they have to deal with different problems. When space is limited, retrofit jobs often have to use small butterfly valves as the only option. The wafer-style design fits between current flanges without needing extra face-to-face space. However, it is important to choose the right gasket to keep the system from leaking. These buyers want expert support that helps them deal with the problems that come up when they try to add new parts to old systems.

Industrial site managers who work in dangerous places need valves that are made to handle rough conditions. Besides normal epoxy coatings, petrochemical plants and manufacturing sites need better corrosion protection. Marine-grade stainless steel stems and fasteners can handle being exposed to saltwater in coastal locations. Other alloy choices are available to address concerns about chemical compatibility. The pressure ratings need to be able to handle both regular working conditions and the surge pressures that happen when multiple large-volume deluge systems are turned on at the same time.

Evaluating Customization Options and Lead Times

Standard catalogue valves work well in most situations, but sometimes special project needs mean that they need to be customised. Production times can be extended by weeks to months because of non-standard flange drilling patterns, special pressure rates, or different materials. Custom solutions manufacturers, such as FLA Industrial & Trading Co., Ltd., keep their production skills open so they can meet these unique needs. By giving 3D CAD models before starting production, engineers can make sure that the sizes are compatible and look for any problems before starting production.

When you buy in bulk, you save money in ways that go beyond unit price for fire protection flanged valves. When you place a lot of orders, you can often get faster production schedule, testing in the plant that is tailored to your project's needs, and longer warranties that lower your long-term ownership costs. Material approvals, hydrostatic test results, and measurement inspection records are some of the quality documents that procurement managers should ask for. These papers are very important for showing that the building meets the codes during reviews and for making sure that problems can be tracked down if they happen in the field.

To plan for lead times, you need to have realistic ideas about how long it takes to make things. Before they can be put together, cast parts need to be moulded, heated, and machined to make patterns. Emergency replacements may be able to be met by rush orders, but new building projects are better off with early procurement, which lets the factory test the parts thoroughly without putting pressure on the timeline. Talking to providers about project timelines helps everyone work together so that valves don't become the item on the critical path that slows down the whole process.

Installation and Maintenance Best Practices for Fire Protection Flanged Valves

Proper Installation Techniques for Optimal Performance

Before tightening any nuts, make sure the flange is aligned to make sure the valve fitting goes smoothly. When things aren't lined up right, stress is spread out unevenly, which can cause valve bodies to crack or leak paths to form. To keep things straight while placing the valve, piping workers should use alignment pins or studs. Care should be taken when choosing a gasket. EPDM rubber gaskets work well in most situations, but fibre gaskets may work better in hot places where rubber breakdown is a problem.

Tightening the bolts must be done in a certain order to keep the tension even around the flange's edge. Tightening opposite bolts one at a time in a star design keeps the seal from warping and makes sure that the stress is even. Different bolt sizes and materials need different torque levels, but for most installs, 5/8-inch bolts in 4-inch Class 125 flanges need 50 to 75 foot-pounds. Over-tightening puts unnecessary stress on flanges and breaks seals. Under-tightening lets seepage happen, which gets worse over time as system vibrations loosen connections.

Once the system is set up, it needs to be tested hydrostatically at pressures required by code. These are usually 200 PSI for 50 hours, which is 50 PSI above the average working pressure. Before hiding pipes behind walls or ceilings, this test makes sure that the joints are still strong. During testing, flow through each valve's fully open and closed positions several times to make sure it works smoothly and doesn't get stuck. Also, make sure that the visual signs show the correct valve position.

Routine Maintenance Protocols Extending Service Life

NFPA 25 requires visual checks to be done once a week or once a month, based on whether the valves have tamper switches or supervisory tracking. Inspectors make sure that valves stay in the right place and look for leaks that can be seen around the stems and flanges. For every operating test that is done once a year, each valve has to be fully opened and closed so that the wedge doesn't get stuck from rust or mineral deposits. This cycle moves the grease around and breaks up any scale buildup that happens in systems with hard water.

Small stem leaks can be fixed by adjusting the packing glands without having to take out the valve. Over time, the packing material gets smaller, which lets water leak past the stem while it's working. Tightening the packing gland nuts in small steps, usually every quarter-turn, fixes the seal and keeps the valve from becoming too compressed, which makes it hard to use. If adjusting doesn't stop the leak, the packing has to be replaced, which means the valve has to be closed and part of the bonnet has to be taken apart.

The anti-corrosion coating needs to be checked on a regular basis, especially on areas that are outside and could be subject to weather or chemicals. Using high-voltage testers for holiday detection finds coating breaks before they cause a lot of rust. Touch-up painting can fix small problems, but coating failure on a large scale means the valves need to be replaced or the coating needs to be re-coated by an expert. Keeping track of what was found during inspections and maintenance provides a service history that helps figure out when parts are getting close to the end of their useful life and need to be replaced.

Learning from Industrial Implementation Success

A distribution warehouse installation in the Midwest shows how important it is to choose the right valves and keep them in good shape. The building got upgraded to ESFR fire protection, which needs 12-inch mains that work at 250 PSI. The engineering team asked for OS&Y gate valves made of ductile iron with Class 300 flanges at key separation points. During testing, one valve had a small stem leak that was caused by damage during shipping that made the packing gland loose. A simple change fixed the problem without slowing the acceptance of the system.

The building set up a repair plan that went above and beyond what was required by code, such as changing valves every three months instead of once a year. Because of regular preventive maintenance, the valves are still working easily after five years, with no broken seals or parts that won't move. The facility manager says that the obvious stem indicators have made it easier to record compliance during insurance inspections because they don't need any special tools or training to check the position.

This real-life example shows how spending money on good parts and regular repair pays off by making systems more reliable and lowering their costs over their entire life. The flanged connections made it possible to repair one valve during a system growth without stopping work in nearby areas. This shows how useful it is to have standard connections that can be changed in the future.

Conclusion

Fire protection flanged valves are more than just simple plumbing parts. They are the technical concepts and quality standards that keep people safe in situations. Knowing about the different kinds of valves, their materials, and their certifications helps procurement workers make choices that are in line with project needs and government rules. Correct construction methods and servicing schedules make the most of the big investments these safety-critical systems require, making sure they work well for as long as they're supposed to. When smart tracking technologies, advanced materials, and environmentally friendly production methods come together, they keep making valves better and better at meeting the changing needs of the industry. Companies that put quality, certification compliance, and proven production experience at the top of their list of priorities are in a great position to provide fire protection systems that work perfectly when communities need them the most.

FAQ

What distinguishes fire protection flanged valves from standard industrial valves?

Fire protection flanged valves are tested and approved by UL, FM, and other third-party organisations. The designs with flexible seats can hold trash without compromising the seal's integrity, and the materials can handle temperature shock during fires. Standard industrial valves don't have these special features or certificates that are needed for life-safety uses.

How frequently should these valves be checked and fixed?

NFPA 25 calls for visual checks once a week or once a month, based on the type of control. Every year, the system must be tested operationally by cycling all the valves fully. Facilities may change their repair schedules to happen more often depending on the quality of the water, how often the system is used, and the amount of risk that management is willing to accept.

Can valves be customized for unique industrial applications?

Customisation options from manufacturers include non-standard sizes, different materials, different pressure levels, and different flange drilling designs. Custom solutions meet needs that can't be met by off-the-shelf products, but they need thorough specifications, engineering review, and longer lead times than normal catalogue goods.

Are these valves suitable for potable water service?

Even though fire protection flanged valves can get NSF-61 approval for touch with potable water, their main use is still for fire protection. In order for a product to be used for both fire safety and drinking water, it needs to be confirmed that it has the right licenses.
