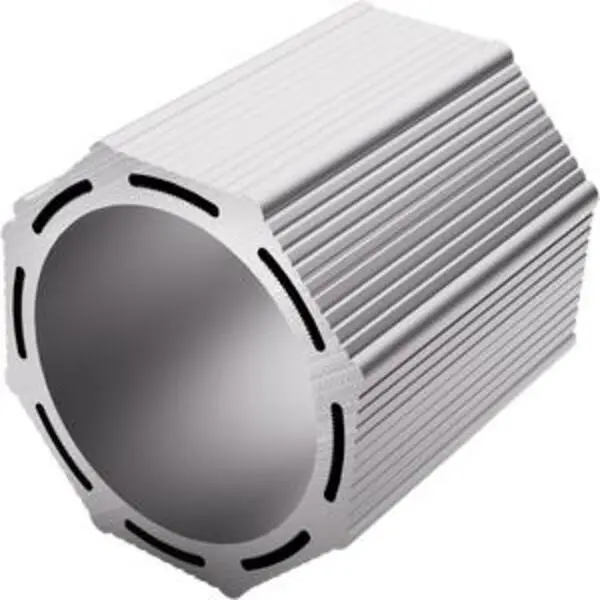

How Does Aluminum Motor Housing Improve Performance in Industrial Motor Applications?

Aluminum Motor Housing significantly enhances industrial motor performance through superior thermal management, reduced operational weight, and extended equipment lifespan. These motor enclosures deliver thermal conductivity rates between 90-160 W/m·K—approximately three times higher than traditional cast iron—allowing motors to dissipate heat rapidly during continuous operation. This exceptional heat transfer capability prevents overheating, reduces energy consumption, and enables motors to maintain consistent performance under demanding industrial conditions. The lightweight properties of aluminum alloy construction minimize installation complexity while the inherent corrosion resistance ensures reliable operation across diverse environments, from manufacturing facilities to outdoor utility installations.

​​​​​​​

Specification
Parameter Item	Specification
Product Name	Aluminum Motor Housing
Material	Aluminum Alloy/ Cast Iron
Surface Finish	Painted or Powder Coated
Manufacturing Process	Die Casting,Sand Casting,Machining
Customization	Available(Special-shaped Parts Supported)
Application Scope	Construction,Transportation,Industrial Machinery,Home Improvement
Certification	ISO9001 Certified
Origin	China
Lead Time	7-15 Days(Customized Orders)

Understanding Aluminum Motor Housing: Properties and Benefits

Motor housings made of Aluminum Motor Housing represent a big change in how industrial equipment deals with pollution problems and high temperatures. Electric motors in the industrial, building, and service sectors are held together by these protective enclosures.

Material Composition and Physical Properties

Modern motor housings usually use certain Aluminum Motor Housing that are strong and good at handling heat. A356 aluminum alloy has a density of 2.7g/cm³ and a tensile strength of 150–310 MPa, so it provides strong defense without being too heavy. At 2.73-2.75g/cm³ density, ADC12 alloy has great resistance to thermal fatigue, which makes it a good choice for motors that go through a lot of temperature changes. The 6061 alloy type is better at resisting rust and heat, which makes it useful for outdoor electrical setups and HVAC systems that are exposed to water.

The thermal conductivity of these alloys is much better than that of other materials. Cast iron can handle about 50 W/mK, but aluminum can handle 90–160 W/mK, which lets motors run cooler and more efficiently. This trait is especially important for small motor designs where heat buildup can cause problems with durability.

Weight Reduction Advantages in Industrial Settings

The difference in density between aluminum and steel has real effects in many industry settings. Aluminum Motor Housings are about 65% lighter than similar steel housings. This makes them easier to install and lowers the load needs on the structure. Construction workers like this feature because it lets them mount motors in high places or add equipment to buildings that can't hold its own weight.

Less expensive shipping and easier handling of materials are good for factories. When heavy-duty hoisting equipment is no longer needed for motor installation, plant managers can move the lifting equipment to other jobs. Because of the lighter weight, installation takes less time, which lets production engineers cut down on downtime during maintenance or equipment upgrades.

Corrosion Resistance in Harsh Environments

Industrial motors often work in conditions that speed up the breakdown of materials. In plumbing and HVAC uses, housings are exposed to chemicals, water, and changes in temperature. Aluminum naturally creates an oxide layer that protects it from rust and rusting and doesn't need any special cleaning on the surface.

Fine particles are made when you work with wood, and they can stick to the sides of your tools and trap moisture against metal parts. Aluminum doesn't rust, so motors stay structurally sound even after being exposed to this kind of weather all the time. Electrical utility uses that are outside also benefit because the housings can survive rain, humidity, and temperature changes that would destroy steel options in just a few months.

Comparative Performance Analysis

When procurement teams look at building Products" target="_blank" style="color:blue" >products, they have to think about how well they work in a number of different operating areas. Even though steel housings are the strongest, they are also the heaviest and most likely to rust. Plastic enclosures don't rust and are cheap, but they don't conduct heat well and don't stay the same size when heated up.

For most industrial motor uses, Aluminum Motor Housing is the best choice because it hits the right mix. In standard mounting configurations, the material's structural integrity is good enough, and it manages heat better than plastic can. Aluminum is cheaper than stainless steel, which is especially important for hardware wholesalers who have to keep track of supplies for a lot of different product lines. The material can be machined to very precise dimensions, up to ISO IT7 levels, which are needed for precision bearing fitting and vibration reduction.

Design and Manufacturing of Aluminum Motor Housing

The way motor housings are made has a direct effect on how well they work and how much they cost, and for Aluminum Motor Housing, specialized manufacturing methods enable customization while maintaining the dimensional accuracy required for reliable motor operation, and this balance between fabrication precision and design flexibility directly impacts both performance and lifecycle costs. Specialized methods let you make changes while keeping the accuracy in dimensions needed for the motor to work reliably.

Casting Technologies and Precision Requirements

For complicated motor housing shapes, die casting is the most common way to make them. Under high pressure, this process pushes molten aluminum into precise molds, making detailed mounting features and cooling channels all at the same time. Die casting is a good way to make a lot of things, which is why hardware wholesalers value it because they need a steady supply for their retail networks.

Vacuum die-casting techniques solve problems with porosity that weaken the structure of housing. There are holes inside the cast material that let liquid cool patterns leak and weaken the structure. Good companies use vacuum systems during casting to get rid of gas buildup. This makes housings that can be used in sealed motor applications and places that need IP65 or IP67 entry protection ratings.

Coordinate Measuring Machines check the accuracy of measurements all the way through the production process. A CMM check makes sure that the bearing bore is concentricity within micron tolerances. This makes sure that the shaft is aligned correctly and reduces vibrations. This accuracy keeps bearings from breaking down too soon and lowers the amount of upkeep that needs to be done on building equipment that is used in rough field conditions.

Machining Operations and Surface Finishing

After the casting is done, machining processes turn rough casts into precise parts that meet exact specs. CNC milling makes mounting surfaces that are flat enough to meet important standards for aligning equipment correctly. When you bore, you make bearing pockets with H7 or J6 fits. This keeps the bearings from moving while they're working and lets the unit have the right gaps.

Surface finishing choices make housings last longer and look better in customer-facing settings. Plumbers who work with toxic fluids need powder coating because it protects against chemical contact and mechanical wear and tear over time. Anodizing makes the surface harder and provides electrical protection that is useful in utility uses. Hard anodizing treatments are designed to work in saltwater, protecting housings in marine pump installations and industrial facilities along the coast.

Quality Standards and Certification Requirements

ISO9001 recognition tells motor housing makers what is expected of them in terms of quality management. This standard proves that activities like choosing materials, keeping an eye on the process, and final inspection are all governed by written rules. When looking for long-term partnerships with suppliers that need to provide consistent quality across multiple orders, procurement managers use ISO certification as a way to screen suppliers.

Non-destructive testing procedures make sure that structures are solid without hurting any of their parts. Real-time X-ray checking finds internal holes and casting flaws before the value-adding steps of cutting. This inspection step stops any bad materials from moving forward in the production process. This cuts down on waste and makes sure that only housings that meet specifications get to customers. For liquid-cooled designs, pneumatic leak testing proves the integrity of the seal and makes sure that the housings meet the pressure retention requirements across all operational temperature ranges.

Custom Manufacturing Capabilities

OEM partnerships need more freedom than what's in a normal catalogue. Motor makers need housings that have certain dimensions, mounting patterns, and features for managing heat. Custom casting molds let you make shapes that are perfect for a certain job without sacrificing style.

FLA Industrial & Trading Co., Ltd. has its own mold-making facilities for fast prototyping and moving from prototype to production. Engineering teams work with customers during the design process to make sure that housing configurations are the best for making the product while still meeting performance goals. Before committing to production tooling, 3D verification processes make sure that digital designs translate correctly to physical parts.

Being able to make custom-shaped parts meets needs that aren't always met by standard parts in woodworking, building, and industrial machines. This ability to customize sets professional sellers apart from basic vendors and adds value beyond just selling products.

Improving Industrial Motor Performance With Aluminum Motor Housing

The main performance difference between good motor housings and great designs is how well they handle heat. When a motor is running, it constantly makes heat because electrical resistance and mechanical friction turn the energy that goes into it into waste heat.

Thermal Conductivity and Heat Dissipation

Because aluminum is a good thermal conductor, heat moves quickly from the motor windings to the air around the housing. Because of this feature, motors can work at lower temperatures than the same units housed in steel or plastic. According to standard electrical engineering principles, every 10 degrees Celsius drop in temperature doubles the life expectancy of insulation, so lowering the temperature has a direct effect on the life of winding insulation.

The ribbed exterior designs make the most of the surface area that can be used for convective cooling, and for Aluminum Motor Housing, these fins enable greater heat dissipation without forced air cooling systems, reducing auxiliary power consumption and maintenance needs, and this passive cooling approach is beneficial for factories because it eliminates energy-intensive fan motors that require periodic replacement. These fins make it possible for more heat to be lost without using forced air cooling systems. This means that less extra power is needed and less upkeep is needed. This passive cooling method is good for factories because it doesn't use fan motors, which are energy-intensive and need to be replaced every so often.

For uses that need the best thermal performance, liquid-cooled housing versions have water tanks inside. When making servo motors for robotic systems, where space is limited and power density is high, these designs are very important because they make the motors very hot. Precision casting creates intricate interior tunnels that make the most of the coolant's touch with the housing's surfaces while keeping the structure's strength.

Vibration Dampening and Structural Stability

Motor shaking speeds up the wear on bearings, loosens attachment hardware, and makes noise that is illegal in the workplace. The design of the housing affects how vibrations travel from the inside of the motor to the mounting structures. Aluminum's natural dampening qualities make it a better material for reducing vibration intensity than hard steel designs.

When bearing pockets are designed correctly, they hold the shaft securely and keep it from bending too much during operation. Precision machining makes sure that the outer races of the bearings fit tightly inside the housing bores. This stops the relative motion that causes wear debris and speeds up failure. This focus on precise measurements helps builders who depend on tools that will last for years, not months, during the duration of a project.

The shape of the mounting foot spreads the weight across the connection points, which stops stress buildup that can cause cracks. Housings that are well-designed have strengthening plates that make them stiffer without adding too much weight. This structural optimization helps motors in mobile equipment that has to deal with shock loads and vibrations from working on rough terrain.

Maintenance Reduction and Operational Reliability

Protection against corrosion extends the time between maintenance visits by stopping the housing from breaking down, which lets water and dirt build up. Sealed motor designs depend on the purity of the case to keep the inside clean and keep the oil in the right place. Aluminum's natural resistance to rusting cuts down on the number of inspections needed and gets rid of rust-related problems that often happen in damp places.

When you put together thermal performance, structural stability, and environmental safety, you get improvements in reliability that you can see. Electrical maintenance supervisors who keep track of the average time between failures see that motors can be used for long periods of time before they need to be overhauled. This makes things more reliable, which cuts down on the costs of unplanned downtime and lets maintenance schedules be more in line with production needs than emergency response needs.

Less thermal loss and lower working temperatures lead to greater energy economy. Motors that are going cooler have lower coil resistance, which means they need less electricity to produce the same amount of power. These gains in efficiency add up over big groups of motors, lowering utility costs by a lot for buildings that use hundreds of motors at the same time.

Comparing Aluminum Motor Housing Solutions for Industrial Applications

Selection factors are very different between industries because of the needs of the business and the conditions of the surroundings. Knowing these differences helps you make smart purchasing choices that lower your total cost of ownership.

Performance Comparison With Alternative Materials

Plastic housings are the cheapest to buy at first and won't rust or corrode at all, but they are very bad at handling heat and being strong. Small quarter horsepower motors in home products are one example of an application that can handle plastic construction because it doesn't produce much heat and isn't put under any mechanical stress. Materials with better thermal and mechanical properties are needed for industrial applications that need to be reliable under stress.

Stainless steel housings are the best at resisting rust in situations where chemicals are present in large amounts, like when motors in food preparation plants need to be cleaned often with harsh chemicals. The thermal conductivity of the material is somewhere between that of aluminum and mild steel, so it can moderately get rid of heat. Because it is expensive, stainless steel can only be used in certain situations where its qualities support the higher price.

Cast iron has the usual strength of iron at a reasonable price, but it is heavier and more likely to rust. Cast iron housings are often used in legacy tools because they are easier to find and have a longer history than other materials. Replacement and upgrade projects are good chances to switch to aluminum designs, which are better in terms of performance and don't cause problems with compatibility.

Alloy Selection for Specific Applications

The mechanical properties and castability of A356 aluminum alloy are just right, which means it can be used in a wide range of industrial motor applications. The material can be fixed and welded, so it can be used in field service situations where housing damage needs to be fixed. Hardware stores that stock replacement housings like that A356 is easy to find and the quality is the same from source to seller.

The ADC12 metal works great for die casting in large quantities to make housings for low-cost uses. Because the material is so good at molding, thin-wall pieces can be made that save weight and money on materials without sacrificing structural integrity. When factories try to be as efficient as possible, they like using ADC12 for standard motor housing designs.

5083 aluminum alloy is used in sea and coastal settings where corrosion protection is very important because of saltwater, and for Aluminum Motor Housing, the low copper percentage of the material lowers the chance of galvanic corrosion when housings touch different metals in equipment units, and plumbers who work in seaside areas require 5083 housings for pump motors that will be placed in harsh conditions. The low copper percentage of the material lowers the chance of galvanic corrosion when housings touch different metals in equipment units. Plumbers who work in seaside areas require 5083 housings for pump motors that will be placed in harsh conditions.

Application-Specific Selection Guidance

For industrial tools, housings need to balance temperature performance with the ability to be mounted in a variety of ways. Standard size designs make it easier to integrate equipment, and the ability to cool down helps with continuous-duty operation. Procurement managers want motor mounting patterns that are compatible with existing ones so that installation changes during equipment upgrades are kept to a minimum.

Lightweight housings for HVAC compressor motors make the whole system lighter and make installation easier in air handling units that are mounted on the ceiling easier. Corrosion resistance is very important for outdoor condensing units that are exposed to weather and air pollution. Aluminum is the most common material for home and business climate control tools because it has so many useful qualities.

Precision case measurements are needed for woodworking tools to make sure that there is little runout and vibration. For good finish work, cabinet saw motors and router spindles need to run smoothly. For these uses, aluminum housings are the best choice because they are stable in size and reduce vibrations, and they are also cheap for companies that make tools for price-conscious customers.

Procurement Guide for Aluminum Motor Housing in B2B Industrial Markets

Strategic sourcing requires understanding supplier capabilities, quality systems, and logistics infrastructure supporting reliable delivery performance. Professional procurement teams evaluate multiple factors beyond unit pricing when establishing vendor relationships.

Supplier Qualification Criteria

Getting a manufacturing certification shows that a company is serious about quality management and process control. ISO9001 approval sets the lowest standards that sellers of industrial parts must meet. This certification proves that important industrial tasks and inspections are governed by written processes.

The supplier's ability to meet number needs during demand peaks is based on their production capabilities. Manufacturers who keep a lot of standard products in stock can deliver them right away, without having to wait for lead times. When it comes to custom manufacturing, different evaluation criteria are needed, with a focus on engineering support capabilities and tooling development timelines.

The value of a supplier is affected by more than just the sales of goods. During the development stages of a project, engineering teams that can help with design optimization and application troubleshooting are very useful. Setting 24- to 48-hour response times for quotes and technical specs through responsive communication makes managing the project schedule easier.

Lead Time and Delivery Considerations

Standard product availability gets rid of the need for waiting times that slow down project plans. Suppliers who keep more than 2,000 tonnes of inventory on hand can ship common housing designs the same day, which helps with emergency substitute situations and project speed-up needs. When equipment breaks down and project goals are at risk, construction contractors respect how quickly this is handled.

Custom production usually takes between 7 and 15 working days from the time an order is confirmed until it is shipped. This amount of time allows for the preparation of the mold, casting operations, cutting routines, and quality control tasks. Project managers use these dates to plan when to buy equipment, making sure that the delivery of housing doesn't interfere with the availability of other parts that go with it.

Logistics infrastructure affects both the total cost of delivery and the risk of damage during travel. When suppliers use professional freight management services, they cut down on the amount of packing they need to do and make sure that everything is handled correctly along the supply chain. International exports need help with paperwork and customs clearance, which is something that specialized industrial sellers do all the time.

Pricing Structure and Budget Optimization

When you buy more, the unit cost goes down with volume pricing tiers. When hardware dealers buy in bulk to stock their shelves, they get better prices than when they buy one unit at a time. By combining orders for different types of products, you can get the best deals on purchases when you know where the price patterns break.

When you make something custom, the costs of the tools you use are spread out over the number of items you make. Mold development fees make the unit prices for the first prototypes higher. When production runs go over certain levels, prices per unit are competitive and on par with normal catalogue items.

A total cost analysis looks at more than just the purchase price. It also looks at freight, inventory carrying costs, and quality-related costs. When suppliers offer uniform quality, inspections aren't needed as often, and the costs of fixing broken parts aren't incurred. Because of how reliable they are, they can charge more than generic vendors who don't give much technical help.

Conclusion

Aluminum Motor Housings improve performance in measurable ways by better managing heat, resisting corrosion, and reducing weight. The properties of the material make motors run cooler, last longer, and need less maintenance than motors made from other housing materials. Precision casting, CNC machining, and advanced surface treatments are some of the manufacturing techniques that can be used to make housings that meet exact specs for a wide range of commercial uses. When looking for these important parts for equipment projects and maintenance work, procurement professionals should know how to choose the right alloy, get quality certification, and evaluate a supplier's abilities.

FAQ

What advantages does aluminum provide over cast iron motor housings?

Aluminum delivers thermal conductivity approximately three times higher than cast iron, enabling superior heat dissipation that extends motor lifespan and improves efficiency. The material weighs 65% less than iron, simplifying installation and reducing structural support requirements. Corrosion resistance eliminates rust formation in humid environments without requiring extensive surface treatments.

Can aluminum housings withstand harsh industrial environments?

Quality aluminum alloys with appropriate surface treatments perform reliably in demanding conditions including moisture exposure, chemical contact, and temperature extremes. Hard anodizing increases surface hardness and corrosion protection for aggressive environments. Marine-grade alloys like 5083 resist saltwater corrosion in coastal installations. Proper alloy selection and finishing techniques ensure housings meet application-specific environmental challenges.

How does housing design affect motor thermal performance?

Ribbed exterior profiles increase surface area for convective cooling, maximizing passive heat dissipation capacity. Internal water jacket designs enable liquid cooling for high-power-density applications requiring compact packaging. Thermal conductivity of housing material creates the pathway for heat transfer from windings to cooling medium, making material selection critical for applications operating near thermal limits.

Partner With a Trusted Aluminum Motor Housing Manufacturer

FLA Industrial & Trading Co., Ltd. brings nearly 40 years of manufacturing expertise to industrial motor housing production, serving Fortune Global 500 partners across construction, electrical utility, and industrial machinery sectors, and for Aluminum Motor Housing, our precision casting and CNC machining capabilities produce housings meeting exact specifications with ISO9001-certified quality management. Our precision casting and CNC machining capabilities produce housings meeting exact specifications with ISO9001-certified quality management. We maintain 2,000+ tons of inventory enabling immediate shipment of standard configurations while supporting custom manufacturing with 7-15 day production timelines. Engineering teams provide comprehensive support from initial design consultation through production, including 3D verification and application-specific optimization. Contact our team at sales@flaindustrial.com to discuss your motor housing requirements and receive detailed technical specifications within 24-48 hours.
