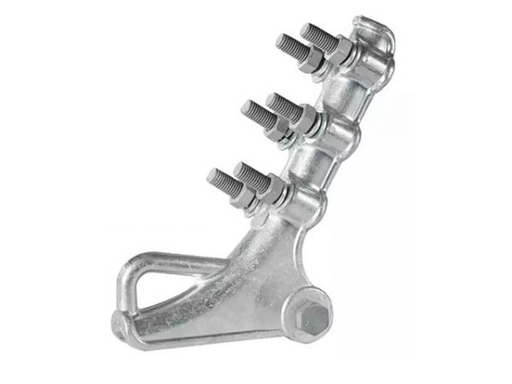

Reliable Abc Strain Clamps for Secure Aerial Cable Support

When you're managing overhead power distribution or telecommunications infrastructure, selecting the right ABC strain clamp means the difference between decades of reliable service and costly system failures. These engineered components serve as the critical anchor points for aerial bundled cables, transferring mechanical tension from suspended conductors to support structures without compromising cable integrity or system safety. We understand that procurement managers, electrical engineers, and utility contractors need proven solutions that balance performance, durability, and value—particularly when projects demand consistent quality across thousands of installation points throughout electrical distribution networks.

Specification
Product Name	Applicable Range	Material Options	Finish
NLL-1 Strain Clamp	35-50 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum
NLL-2 Strain Clamp	70-95 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum
NLL-3 Strain Clamp	120-150 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum
NLL-4 Strain Clamp	185-240 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum

Understanding ABC Strain Clamps: Design, Function, and Applications

The ABC strain clamp is a mechanical dead-end device designed to work with low-voltage overhead bundled wire systems at its core. In contrast to standard bare-wire gear, these clamps need to be able to hold shielded wires without hurting the XLPE or polyethylene sheathing that keeps phase-to-ground faults from happening.

Material Engineering for Maximum Durability

Depending on the load, our strain clamps are made of malleable iron or an aluminum blend with a steel core. The different types of aluminum alloy have great weight-to-strength ratios and also have better rust protection, which is especially important for sites near the coast, where salt spray speeds up the breakdown of materials. Ductile iron choices offer better mechanical strength for heavy-duty uses at angles or over longer lengths than usual. Precision casting, forging, and cutting are used in the manufacturing process to make sure that the dimensions are accurate within very small ranges. Hot-dip galvanized finishes keep steel parts from rusting, and natural aluminum finishes keep the structure strong at temperatures as low as -50°C and as high as +60°C.

How Tension Transfer Mechanisms Work?

The engineering idea behind these clamps is based on systems that grip with wedges. When wind loads or ice buildup make the cable stress go up, the cylindrical wedges self-tighten in a way that doesn't crush the insulation layer. This self-adjusting device spreads radial pressure over a large surface area. This stops the cold flow deformation that leads to early failure in hardware that is too small or poorly built. The bail or strap part, which is usually made of high-tensile stainless steel grade 304 or 316, ties the assembly to hardware on the pole and can handle corrosive conditions that would damage less durable materials.

Application Across Multiple Industry Sectors

Electricity companies put these clamps on terminal poles, which is where the mechanical strain is highest. If this one point fails, the line collapses right away, affecting whole service areas. Fiber-optic and coaxial cable packages are both secured in telecommunications networks using the same technology. Heavy-duty versions that can handle constant shaking and environmental pollution are used in industrial facilities like mines, factories, and processing centers. The versatility includes both home and business building projects that need professional-grade anchoring solutions backed by well-known safety certifications. Tensile load limits vary depending on the application and can be anywhere from 10kN for smaller conductor cross-sections to 25kN for 95mm² lines.

Comparing ABC Strain Clamps Against Alternatives: Making Informed Choices

In older infrastructure, traditional bare-wire hardware is still used, but its technical flaws become clear when compared to new ABC strain clamp technology made for shielded bundled wires.

Performance Metrics That Matter

Bare-wire ABC strain clamp use compression bolts, which can damage insulation during installation or create stress points that cause conductors to wear out too quickly. Through spread load geometry, our tailored solutions get rid of this risk. Resistance to corrosion is another important difference. In harsh settings, galvanized steel parts in older designs lose their shine within 5 to 7 years, but our stainless steel and aluminum systems stay structurally sound for longer than the 30-year service life estimates. The way the load is distributed has a direct effect on how reliable the system is. Wedge-based designs automatically account for cycles of temperature expansion and contraction, so they don't need to be retensioned as often as older compression systems do.

Environmental Suitability Analysis

People who work in procurement should look at clamps based on how they will be installed. To stop galvanic rusting, parts made of stainless steel grade 316 must be used in coastal areas with a lot of salt. Polymer-coated versions that don't get damaged by acidic or alkaline air pollution are good for industrial areas where chemicals are present. The amount of UV light affects how long polymer parts last. Carbon black reinforced nylon 66 materials meet the standards for climatic aging under EN 50483-2 Method A, so they will work well in warm climates.

Regulatory Compliance and Modern Standards

The way we make things follows the rules for ISO9001 quality management and IEC international electricity safety standards. These certifications show that every production batch goes through checking the dimensions, analyzing the material makeup, and trying the mechanical strength. Compliance paperwork makes it easier for regulatory officials and insurance underwriters to approve projects. For infrastructure works, they need verified component specs.

Procurement Guide for ABC Strain Clamps: Pricing, Suppliers, and Logistics

To get around in the global supply chain for electrical gear, you need to know the difference between factory-direct sources and wholesalers who act as middlemen for ABC strain clamps.

Identifying Authentic Manufacturing Partners

There are many benefits to buying directly from well-known makers. We keep more than 2,000 tons of material in more than 1,000 different product specs. This lets us quickly fill standard orders and support custom-engineered solutions. Buyers can check manufacturing processes, material approvals, and quality control methods directly from the manufacturer, which is not possible with middle-men. Direct relationships also make it easier for expert people to work together when the project requirements call for non-standard sizes or special treatments on the materials.

Pricing Structures and Volume Advantages

Buying in bulk can save you a lot of money because economies of scale help you get cheaper raw materials and plan your production more efficiently. Tier-based pricing is good for large companies because it rewards steady order numbers without lowering the quality of each unit. In long-term supply deals, things like payment terms, warranty terms, and technical help after the sale can be changed. We give quotes within 24 to 48 hours that include full technical details, proof of compliance, and shipping plans that fit the needs of the project.

International Logistics Considerations

Coordinating shipping methods, customs paperwork, and delivery times that work with building goals is part of cross-border buying. Container load optimization lowers the cost of freight per unit while making sure that protected packing keeps goods from getting damaged in transit. Our transportation team works with freight forwarders who know how to handle industrial tools and keep track of all the paperwork needed for a smooth customs clearance process. Minimum order amounts are set so that the costs of keeping goods are balanced against the benefits of shipping. They are usually based on pallet or container designs that make the best use of freight.

Why Choose FLA Industrial & Trading Co., Ltd. for Your Cable Infrastructure Needs?

With almost 40 years of specialized experience making ABC strain clamp hardware, we've built our name on providing engineered solutions that go above and beyond industry standards while still offering fair value.

Proven Expertise Across Electrical Infrastructure

Our product line includes metal tools, craft clamps, electrical line tools, and pipe fittings made of malleable iron. It has over 1,000 different SKUs that were created through ongoing research and development. This range shows that we are technically flexible and lets us be a single source for a wide range of project needs. Partners in the Fortune Global 500 trust our production skills to make mission-critical infrastructure parts that can't be made without serious financial and safety effects. Our position in international markets like the US, Germany, and Australia shows that we can adapt to different rules and ways of doing business from different cultures.

Quality Assurance That Builds Confidence

During the entire making process, each part is put through a series of strict tests. Before production starts, the makeup and functional qualities of the alloy are checked by checking the raw materials. In-process measurement checks make sure that tolerances stay within the limits set by the specifications. Tensile strength values are confirmed by final load tests in a controlled lab setting. The fact that we have ISO9001 certification shows that we use structured quality management practices in all of our activities. IEC compliance licenses are an independent way to make sure that goods meet international electrical safety standards. This makes the approval process easier with regulatory bodies and utility authorities.

Technical Support That Accelerates Projects

We offer full technical support, including checking 3D designs for specific uses, giving advice on material choices based on the surroundings, and helping with installation problems. Real-time production updates let buying teams know how an order is going, which helps them make accurate project schedules. Our quick communication—we give expert feedback within 24 to 48 hours—allows decision-makers to move forward with confidence, without having to wait weeks for important comments on specifications.

Installation and Maintenance: Ensuring Long-Term Reliability of ABC Strain Clamps

Correct installation methods and regular repair schedules have a direct effect on how long overhead wire systems work and how safe they are for ABC strain clamps.

Step-by-Step Installation Best Practices

The first step in getting a site ready for ABC strain clamp installation is to make sure that the values for the pole mounting tools match the estimated mechanical loads for the span design. Clean the ends of the cables of any dirt or water that might weaken the grip. For the wedge placement process to work, the parts must be lined up properly. Forcing wedges at the wrong angles can lead to uneven pressure distribution and even damage to the insulation. Modern designs don't need a torque wrench, which cuts down on installation time and stops the mistakes that happen when bolt-compression systems are over-tightened. Following OSHA or similar regional workplace safety rules, safety protocols require workers to use the right fall protection tools when working at height.

Common Installation Challenges and Solutions

Tension miscalculation is a common mistake. Not enough pre-tensioning causes too much sag, and too much tensioning stresses the wire beyond its maximum capacity. Use mechanical tension tools that take into account the length of the span, the weight of the conductor, the temperature factors, and the estimated wind and ice loads. If the wedge slips during initial tensioning, it means that the wrong size was chosen; clamps must match the diameter specifications of the wire within the ranges set by the maker. Temperature in the environment affects how things are installed. For example, cold weather makes polymer parts harder, while high heat makes materials softer, so handling methods need to be changed depending on the season.

Preventive Maintenance for System Longevity

Every year or after bad weather, routine eye checks should be done. Metal parts are checked for signs of rusting by looking for white powdery layers on galvanized surfaces or rust stains around fastener points. When you look at the polymer body, you can see signs of UV breakdown like surface chalking, color loss, or tiny cracks. Wedge position checking makes sure that parts haven't moved during thermal cycles. By writing down what was found during a check, you can use trend analysis to figure out what care is needed before something breaks. Technician training programs that teach the right way to do inspections and keep records make sure that all field teams do the same high-quality repair work. Following international safety standards like NFC 33-041 and CENELEC EN 50483 protects you from responsibility and keeps workers safe during repair tasks.

Conclusion

When looking for effective aerial wire anchoring options, you need to think about technical performance, legal compliance, and long-term value. When you specify ABC strain clamps correctly, they have technical benefits like self-adjusting tension management, insulation protection, and corrosion resistance. These benefits directly lead to lower upkeep costs and a longer system lifespan. When procurement experts work with experienced manufacturers, they can get technical help, quality certifications, and quick support that makes difficult building projects easier. We tell buyers to judge sellers based on how openly they make their Products" target="_blank" style="color:blue" >products, how well they document the quality of their materials, and how long they've been in business serving the utility and telecoms industries around the world.

FAQ

Can strain clamps be reused after initial installation?

Best practices in the industry say that ABC strain clamps shouldn't be used again after they've been used to tighten a wire system. The polymer wedges slightly change shape during the gripping process so that they fit the shape of the wire sheath. Reusing these parts on different wires lowers their grip strength and increases the chance of sliding failures. The metal bail parts are still structurally sound, but the whole unit should only be used once, according to NF C 33-041 rules for permanent installs.

How do I select the correct clamp size for my project?

The cross-sectional area of the wire, measured in square millimeters, determines the size that should be used. 16-25mm³, 25-50mm³, and 50-95mm³ are common sizes that meet most distribution needs. Manufacturers offer compatibility charts that match the specs of the wire to the types of clamps. Using clamps that are too small results in too much horizontal pressure, which damages the insulation, while using clamps that are too big fails to provide enough grip force. Instead of depending only on nominal size numbers, you should always compare the real cable diameter measurements to the manufacturer's specs.

What warranty coverage should I expect from quality suppliers?

Reputable makers offer guarantees on both the materials and the work that they do. These warranties cover problems that are found during certain times, usually between 12 and 36 months, based on the type of product and how badly it is used. The warranty terms should make it clear what kinds of things aren't covered, like improper installation, unapproved changes, or exposure to environmental conditions that are higher than the listed levels. For claim handling, documentation needs to include records of the date of installation, upkeep logs, and photos. Large infrastructure projects that need long-term performance promises may be able to get choices for longer warranties.

Partner with FLA Industrial & Trading Co., Ltd. – Your Trusted ABC Strain Clamp Manufacturer

We want utility workers, electricity providers, and infrastructure developers to learn more about how our engineered cable anchoring solutions can help difficult overhead line projects do better. We are a well-known ABC strain clamp seller that has been making high-quality products for almost 40 years. We use modern material science and strict quality control to make parts that are safer than international standards. If you need help choosing specifications, getting custom engineering work done, or finding a price system that works for large or small jobs, our technical team is ready to help. You can email our sales team at sales@flaindustrial.com to get full product catalogs, technical datasheets, and customized quotes that are tailored to the needs of your project. Feel the difference when you work with a company that is dedicated to new ideas, dependability, and great customer service at every stage of your infrastructure growth.
