Troubleshooting and Maintaining Your Swing Check Valve

When there is backflow in your industrial plumbing system or sudden damage to a pump, the swing check valve is usually at the center of the probe. These one-way flow control devices work quietly in the background of many industrial processes. If they break down, it can cause expensive downtime and damage to equipment. Troubleshooting and repair done the right way not only make valves last longer, but they also keep your whole system safe. The most important things for operational efficiency in any B2B industrial setting are knowing how these valves react to stress, spotting early warning signs, and putting in place regular repair schedules.

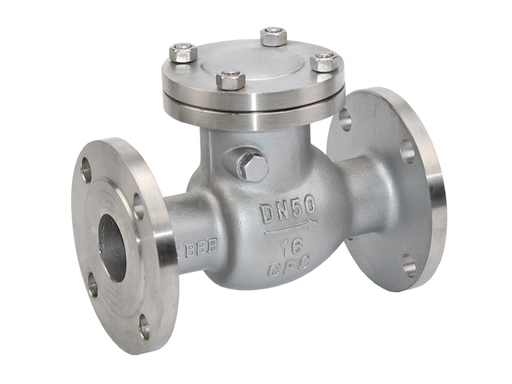

Specification
Model(DN)	Type	Material Options	Connection Type
DN50	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN50	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN50	National Standard Heavy Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Large Body	Cast Iron / Stainless Steel/ Carbon Steel	Flanged / Threaded
DN100	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ Threaded
DN125	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged/ / Threaded
DN125	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Heavy Body(Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded

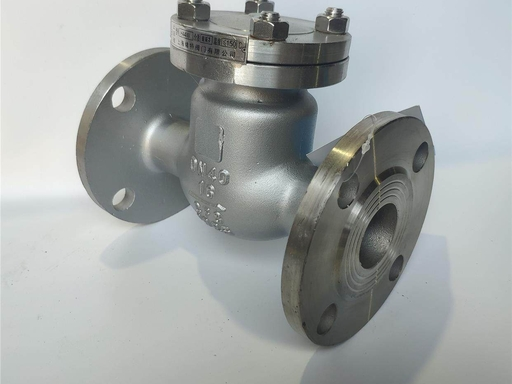

Understanding Common Problems with Swing Check Valves

Industrial workers often have problems with check valves in a variety of settings, from treating wastewater for cities to processing oil. Finding these issues early stops breakdowns that spread through your fluid handling system.

Leakage and Backflow Issues

Having leaks around the valve seat is one of the most common problems site workers tell us about. When the disc doesn't seal properly against the seat, backward flow happens. This lowers the efficiency of the system and could damage pumps further upstream. This problem usually happens when the sitting surface wears away, especially when working with rough materials like slurries or wastewater that has solids suspended in it. If the hardened sitting surface (like Stellite 6 overlay) breaks down too soon, a 6 swing check valve in a sewage lift station that deals with fluids that are full of waste may wear out faster.

Material mismatch is a big part of this. If you put a regular carbon steel valve in a chemically acidic setting, the surface will pit and break down within months. As corrosion gets worse, the valve's ability to close gets worse, letting backflow happen even when working pressures are normal.

Sluggish Closing and Water Hammer

In high-velocity systems, discs that move slowly can cause dangerous situations. If the disc doesn't quickly react to the change in flow, motion builds in the opposite direction before the valve finally shuts off. This delayed closing causes hydraulic shock, which is also known as "water hammer," which makes the pipeline bang and shake in a certain way.

Most of the time, the problem starts with hinge pin rust or not enough grease. If the right gaps weren't set during installation, thermal expansion can bind the hinge mechanism in steam uses that go above 400°F. During routine checks, maintenance teams have found cases where hinge pins had fully seized, leaving the disc frozen in a partially open position.

Noise and Vibration Concerns

When there is too much noise during operation, it means that there is trouble in the valve system. Disc chatter, a fast fluttering motion, happens when the flow speed falls below the lowest level needed to keep the disc fully pushed against its stop. This back and forth motion makes steel clicking sounds and speeds up the wear on both the hinge pin and the disc arm.

Problems with shaking are made worse by turbulent flow patterns. If you place something the wrong way, like putting a valve that is meant to be horizontal in a vertical downflow position, the flow will not be stable, which will stop the disc from working smoothly. The valve basically goes against the rules that were used to make it, which causes it to break down too soon.

Corrosion and Material Degradation

Bolted bonnets and body flanges of a swing check valve can rust from the outside, especially in setups that are outside and open to the weather. Internal rust is more sneaky; it attacks seats, discs, and hinge pins in places where visible inspection isn't possible without taking the valve apart. When a disc made of stainless steel touches a body made of carbon steel, an electrochemical reaction happens that speeds up the loss of material. This is called galvanic rusting.

When elastomers break down in soft-seated forms, chemical processing plants have to deal with special problems. When used in clean conditions, PTFE and EPDM seals work very well. But when they are exposed to chemicals that don't work well with them or temperatures that are too high for the material, they grow, harden, or fail completely within one working season.

Effective Maintenance Tips for Swing Check Valves

Most valve problems can be avoided with proactive care, which also extends the service life well beyond what is normally expected. Setting up ordered routines saves your investment in capital and makes sure that the system works reliably.

Establishing a Routine Inspection Schedule

How often maintenance is done relies on how bad the service is and how important the process is. Inspections should be done every three months for critical uses that handle dangerous materials or protect expensive equipment, but once a year for general water service. During each checkup, check the outside for rust, make sure the bonnet bolts are tight, and listen for strange sounds while the engine is running.

If there are any clear parts, they can be used to see where the disc is during flow conditions. The disc should rest fully open against its stop when the flow is going forward normally, without shaking or flapping. When the flow stops, the disc should return to its original place without slamming. By writing down these notes, you can see how performance has been gradually getting worse over time.

Handheld vibration testers can find worn bearings and mechanical looseness before they cause a catastrophic failure. Trending vibration data over multiple review rounds finds problems that are getting worse while fixes are still doable and cheap.

Proper Cleaning and Lubrication Procedures

Most 6-inch and bigger valves have bolted bonnet designs that let you do repair from the top without taking the body out of the pipeline. This access makes it easier to clean inside and repair parts. Before opening any valves, make sure the line section is isolated and drained. Then, follow lockout-tagout procedures to keep the system from getting pressurized by mistake.

Depending on the media that is used, the inside areas can build up scale, biofilm, and grit. Wire brushes get rid of small deposits, and chemical cleaners get rid of tough buildup. Match the cleaning chemicals to both the type of coating and the base material. For example, acidic cleaners that work well on mineral scale can damage some alloys. After chemical treatment, make sure to rinse well so that any cleaner residue doesn't cause rust again.

Lubricating the bearing area of the hinge pin cuts down on friction and keeps the pin from sticking. Use a small amount of the lubricants recommended by the maker. Too much grease attracts dirt and debris that speed up wear. For high-temperature uses, you need synthetic lubricants that are rated for the temperature range. For water service, food-grade lubricants are often used to keep the media clean.

Component Replacement Guidelines

Seating surfaces of a swing check valve can handle millions of closing cycles, but eventually they will wear down or rust and need to be replaced. In-place cutting with valve grinding fluid and special tools can fix minor damage to the seat. Deeper cracks or pits need to be machined out or the seat ring needs to be replaced. Purchasing managers should keep extra disc systems and seat rings for important valves so that they can be fixed quickly when they break.

More space and play in the disc arm arrangement show that the hinge pins are worn. Checking this gap during checks keeps track of how wear is progressing. If the space is higher than what the maker recommends, you should replace the pin and bushings together. When you only install the pin and leave the old bushings in place, the new part wears out faster.

Replacing the gasket every time the bonnet is opened stops leaks and keeps the pressure limit intact. Stock seals that are made from materials that can handle the process media and temperature range you need. ASME B16.20 spiral wound gaskets work well in high-temperature and high-pressure situations, while flat sheet gaskets work well in lower-stress situations and are less expensive.

How to Troubleshoot Swing Check Valve Issues Systematically?

Finding the symptoms, figuring out the root cause, and putting the answer into action are all reasonable steps in effective troubleshooting. This organized method cuts down on testing time and avoids making the wrong diagnosis.

Defining Symptoms and Gathering Data

Write down exactly what is wrong with the valve. "The valve leaks" doesn't give enough information to make a correct conclusion. Tell us if the leak happens at the body flanges, through the bonnet seal, or past the seat as backflow. Write down when the problem happens: all the time, only at certain flow rates, or during certain system actions, like when the pump shuts off.

Get working information like the flow rate, the difference in pressure, the temperature of the medium, and the properties of the fluid. Compare the present situation to the original plans for the building. If a valve that's supposed to handle 500 GPM flows only 200 GPM, the disc may chatter because the flow speed isn't fast enough to fully move the disc. This is not a problem with the valve itself, but with how the system was built.

Review how to setup and where to put things. When installed in vertical upflow service, horizontal swing check valves work fine, but when placed in vertical downflow service, they don't work right because gravity can't help close the disc. A surprising number of "valve failures" that are actually caused by wrong application are caused by installation mistakes.

Analyzing Installation and System Conditions

How the pipes are set up before and after the valve has a big effect on how well it works. When there isn't enough straight pipe length upstream, the flow is choppy and uneven, which stops the disc from working smoothly. When elbows, tees, and reducers are placed too close to the valve, they create twisting flow patterns that wear out the disc quickly.

The pressure levels in the system show if the valve works within the limits of its design. When a pump starts, the pressure suddenly rises to 400 PSI, putting stress on a Class 150 valve that is higher than its stated limit. Recording pressure during upset conditions finds situations of too much stress that speed up failure.

Vibrations in the system pipes reach valve parts of a swing check valve and cause wear failures regardless of the fluid state. If the pipes aren't supported well enough or there is resonance at certain pump speeds, vibrations happen that damage valve bodies and loosen bonnet bolts. Fixing the source of the shaking is a better way to fix the valve problem than fixing secondary damage over and over again.

Implementing Solutions and Monitoring Results

Temporary fixes take care of the signs right away, while long-term fixes get rid of the reasons. If the bolts that hold the bonnet together came loose because of shaking, they will come loose again when the bolts are tightened. Putting in sound dampeners or changing the pipe supports fixes the problem for good.

When wear goes beyond what is reasonable, replacing the part returns function. If you replace a normal carbon steel disc with a duplex stainless steel disc, for example, you can increase the service life in corrosive conditions. Note these improvements in maintenance logs so that when choices are made about future purchases, they take what was learned into account.

Post-repair checking makes sure that the steps taken to fix the problem worked as planned. Watch the valve as it works several times to make sure it doesn't leak and that the disc moves properly and there is no strange noise. Before the system is put back into full service, it is put through pressure testing according to API 598 standards to make sure the seats are tight and the pressure boundaries are solid.

Sizing and Material Selection to Minimize Problems

Proper valve specification during initial procurement prevents operational problems throughout the valve's service life. Getting these decisions right reduces total cost of ownership substantially.

Correct Sizing Fundamentals

To size a valve correctly, you need to know the flow rate and system pressure. A 6 swing check valve works well with certain flow ranges. If it's too small, it causes too much pressure drop and high-speed erosion, and if it's too big, it makes the disc unstable and causes chatter. Manufacturers give Cv numbers and flow models that help you fit the size of the valve to the needs of the system.

Installation direction is very important. Any circular point around the pipe axis is acceptable for swing check valves in horizontal pipelines, but the disc must swing in the right direction relative to the flow. Vertical lines need the flow to go up, so when the flow stops, gravity helps the disc close. Giving a direction during buying makes sure that the hinge pins are set up correctly.

Cracking pressure, which is the lowest upstream pressure needed to start opening the disc, has an effect on how well low-flow works. Cracking pressure goes up when you use heavy discs and strong springs, which could lead to pump dead-heading in systems with small pressure gaps. By matching the cracking pressure to the features of the system, practical problems can be avoided.

Strategic Procurement Considerations

It's not just about unit price when choosing a supplier; quality processes, professional help, and the reliability of the supply chain are also important. Certified companies that follow the ASME B16.34 and API 6D standards show that they care about quality and interchangeability of dimensions. These approvals reassure buying managers that valves will work as expected and fit in with existing systems without any problems.

Warranty terms show how confident the maker is in the product's longevity. A longer guarantee period shows that the building was done well and that the right materials were used. On the other hand, restricted warranties may be a sign of cost-cutting tactics that hurt the trustworthiness in the long run. When figuring out how much something is worth, it's better to look at the total cost of ownership, which includes expected upkeep costs and how often it needs to be replaced.

During buying, testing and paperwork needs should be taken into account. Before shipping, the factory tests the pressure limit stability and seat tightness according to API 598. Material test records (MTRs) list the chemical make-up and technical features of a product, making sure that the right materials were used in the production process. These papers are very important for insurance compliance and failure analysis inquiries.

Conclusion

You need to pay close attention to upkeep and repair procedures for swing check valves because they are important safety devices in industrial fluid systems. Knowing about common failure modes, like seat leaks and hinge pin seizure, lets you fix small problems before they become expensive system failures. Regular inspections, the right kind of cleaning, and replacing parts at the right time can all increase the life of valves and keep them working well to stop backflow. By choosing the right size and material at the beginning of the buying process, operational problems can be avoided throughout the valve's lifetime. When B2B buying pros use these methods, they protect their expensive equipment, cut down on unplanned downtime, and get the best total cost of ownership for all of their fluid handling infrastructure.

FAQ

How often should I inspect my check valves?

The number of inspections depends on how important the application is and how bad the service is. Inspections should be done every three months for critical services like protecting expensive pumps or working with dangerous materials. Standard water service usually needs to be reviewed once a year. Conditions that are too harsh, like gritty slurries, high temperatures, or chemicals that eat away at metal, speed up wear and need to be checked on more often. Set initial check times based on what the maker suggests, then make changes based on wear patterns seen and experience gained from using the equipment.

What signs indicate my valve needs replacement rather than repair?

If a valve's body cracks, rust gets deep into the pressure boundary, or flanged connections get damaged, the valve usually needs to be replaced completely. Problems that can be fixed include worn seats, broken discs, rusted hinge pins, and seals that don't work. It's also important to think about costs. When fix costs are close to 60–70% of replacement costs, especially for older valves, replacement often offers better long-term value by starting over with new parts and upkeep.

Can these valves handle high-pressure applications?

How much pressure a valve can handle relies on its building class and the strength of its material. Based on the material and temperature, swing check valves are made in ASME Class ratings from 150 to 2500, which translate to pressure ratings from PN20 to PN420. A Class 150 carbon steel valve can handle 285 PSI at 100°F, and a Class 2500 valve can handle more than 6000 PSI. Match the valve class grade to the highest pressure that your system can handle, even if it's just a short-term spike.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Check Valve Solutions

Choosing the right source for check valves will have long-term effects on how reliable the system is. FLA Industrial & Trading Co., Ltd. is a well-known company that has been making industrial parts for almost forty years. They can help businesses with their buying needs. Our wide range of products includes swing check valves that are made to meet ASME and API standards and are made from high-quality materials like stainless steel, malleable iron, and special metals. We provide the quality and dependability that your operations need. This is why Fortune Global 500 partners trust us in the building, plumbing, HVAC, and industrial processing sectors. Email our technical team at sales@flaindustrial.com to talk about the needs of your particular application. Whether you need a single 6 swing check valve or a lot of them for distribution, our technical experts can help you choose the right size, material, and price to make sure your project succeeds.

References

American Society of Mechanical Engineers. (2020). ASME B16.34: Valves—Flanged, Threaded, and Welding End. New York: ASME Press.

American Petroleum Institute. (2019). API 598: Valve Inspection and Testing. Washington, DC: API Publishing Services.

Skousen, Philip L. (2011). Valve Handbook (3rd Edition). New York: McGraw-Hill Professional.

Smith, Peter. (2018). The Fundamentals of Piping Design: Drafting and Design Methods for Process Applications. Houston: Gulf Publishing Company.

Zappe, R.W. (2004). Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design for Every Industrial Flow Application (5th Edition). Burlington: Gulf Professional Publishing.

Lyons, Jerry L. (2015). The Valve Primer: A User's Guide to Valve Selection, Inspection, Troubleshooting and Maintenance. Charleston: CreateSpace Independent Publishing Platform.
