Where Can 3 Grooved Couplings Be Applied?
2026-07-17 11:36:43

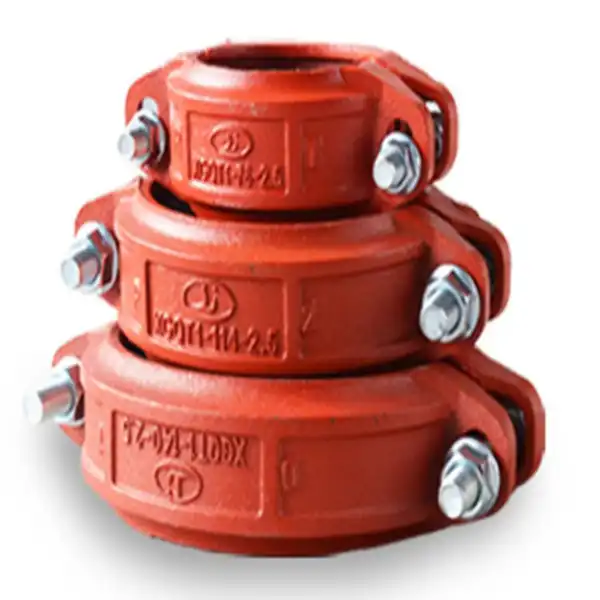

When looking at pipe connection options for tough industrial settings, the 3 Grooved Coupling stands out as a flexible part made for quick, reliable, and leak-proof installs. This machine joins pipes with a width of 3 inches by cutting or rolling holes into them. It does this without the need for soldering, threading, or flanging. These couplings are made from ductile iron or carbon steel and have protective finishes like hot-dip galvanisation or epoxy coating. They are very important in firefighting systems, water supply networks, HVAC installations, and industrial process piping, where the speed of installation, the integrity of the system, and the ease of maintenance all have a direct effect on how well it works and how safely it is used.
Specification |
||||
| Specification | Size (inches) | L(mm) | H(mm) | Diameter (mm) |
| 1 | 33 | 98 | 42 | 54 |
| 1% | 48 | 114 | 43 | 69 |
| 2 | 60 | 127 | 43 | 82 |
| 2% | 76 | 145 | 44 | 99 |
| 3 | 89 | 159 | 44 | 112 |
| 4 | 108 | 186 | 47 | 133 |
| 4 | 114 | 192 | 47 | 140 |
| 5 | 133 | 214 | 48 | 161 |
| 5 | 140 | 221 | 48 | 167 |
| 6 | 159 | 245 | 49.5 | 189 |
| 6 | 165 | 251 | 49.5 | 195 |
| 6 | 168 | 254 | 49.5 | 198 |
| 8 | 219 | 324 | 59 | 254 |
| 10 | 273-1.6 | 416 | 61 | 316 |
| 10 | 273-2.5 | 416 | 62 | 317 |
| 12 | 325-1.6 | 467 | 61 | 370 |
| 12 | 325-2.5 | 469 | 62 | 372 |
Understanding 3 Grooved Couplings and Their Core Advantages
What Makes 3 Grooved Couplings Different
Grooved pipe couplings are made up of three main parts that all work together: a rigid or flexible housing made from ductile iron that meets ASTM A536 standards; an elastomeric gasket that responds to pressure (usually EPDM or Nitrile rubber); and heat-treated bolts with nuts that hold the assembly together. This system is different from other ways of joining pipes because it makes a mechanical seal around 3 Grooved Coupling ends without changing the structure of the pipe forever. The housing goes around the pipe gap, and the gasket makes a watertight seal. Depending on the type of coupling chosen, the coupling can be fixed or move freely.
This method solves a number of problems that keep coming up when building pipelines. When compared to welding, installation time is cut by a huge amount. Labour costs are cut by about half, and there is no need for hot work permits or X-ray inspections after installation. Some coupling designs are naturally flexible, so they can handle temperature expansion, seismic movement, and small misalignment issues without the need for costly expansion joints or accurate field readings.
Material Selection and Durability Considerations
When purchasing, teams look at long-term success; they should know how the choices they make affect the service life. Ductile iron housings have a very high tensile strength (at least 65,000 psi) and are also resistant to impact, so they can handle the rough conditions on building sites and the stresses of normal use. There are different kinds of carbon steel that are better in some chemical environments or when weight is an issue.
Treatments that go on the surface of parts make them last a lot longer. Standard painted finishes with orange enamel that doesn't contain lead offer basic corrosion resistance that is good for indoor use. Epoxy coatings make things more resistant to chemicals, which is useful in harsh industrial settings. Hot-dip galvanising according to ASTM A153 standards provides the best security for outdoor sites, coastal places, or underground uses that are constantly exposed to water.
To choose the right gasket, you have to match the elastomer's features to the medium being sent. Gaskets made of Grade E EPDM and marked with green stripes can handle water, weak acids, and temperatures between -30°F and 230°F. If EPDM gaskets are asked for, Grade T Nitrile gaskets with orange bands should never come in contact with hydrocarbons. They should only be used with vegetable oils and fluids made from petroleum.
Rigid vs. Flexible Configurations
Specification teams can make better choices when they know the difference between hard and flexible 3 Grooved Coupling designs. Rigid grooved couplings have tongue-and-groove interfaces on the bolt pads that hold pipes firmly in place and stop them from moving axially, rotating, or deflecting at an angle. This configuration can be used instead of flanged connections on straight pipe runs because it gives the same structural performance with less weight and cost to install.
Flexible joints let you decide how much an angle bends (usually one to two degrees per joint) and how much an axis moves. This managed flexibility takes in vibrations from pumps and other mechanical equipment, blocks harmonic frequencies that would otherwise pass through rigid pipes, and adapts to the natural cycles of expansion and contraction that happen when temperatures change in systems. In areas prone to earthquakes, flexible couplings are necessary for movement and keep things from breaking apart completely during ground motion events.
Standard Sizing and Specifications
The 3-inch number refers to the nominal pipe diameter. 3 Grooved Couplings can be used with both Schedule 10 and Schedule 40 pipes as long as the groove sizes meet standard requirements. Different manufacturers make 3-inch connections with different sizes, but most of them are about 89 mm long, 159 mm tall, and 112 mm wide. Working pressure ranges from 300 PSI for light-duty models to 1000 PSI for heavy-duty ones. The exact rates rely on the coupling style, gasket grade, and pipe schedule.
These technical factors have a direct effect on choices about buying. Heavy-duty configurations with the right gasket materials are needed for projects that need to handle high pressures or harsh service conditions. On the other hand, cost-effective lightweight designs that still meet performance standards are best for normal business installations.
Top 5 Industrial Applications Where 3 Grooved Couplings Excel
Fire Protection and Sprinkler Systems
In an emergency, when water pressure rises, and every link has to stay in place, fire suppression equipment has to be completely reliable. 3 Grooved Coupling technology is now the standard for both wet and dry riser systems in commercial buildings. It has been approved by UL and FM to work in fire service conditions. The quick assembly process makes it easy for contractors to quickly install vertical stacks in high-rise buildings. The leak-tight integrity can handle pressure spikes when the pump is turned on and the system is charged.
As time goes on, building rules require grooved connections for fire mains that are 2 to 12 inches in diameter. This is because they have been used for decades and have been proven to work. It is very important to be able to make changes without hot work permits in occupied buildings where welding presents an unacceptable risk of fire. When maintenance teams need to service water zones or replace broken parts, they like that they can take the system apart and put it back together again quickly.
HVAC Chilled Water and Cooling Systems
In business buildings, the mechanical rooms have a lot of complicated pipe networks that serve chillers, cooling towers, and air handling units. As equipment starts and stops working throughout the day, these systems are constantly cycling their temperatures. 3 Grooved Couplings do two things in these installations: they secure the pipes together and stop vibrations from rotating equipment that could send harmonics through the system.
The elastomeric seal successfully cuts off the sound frequencies that centrifugal pumps and compressors produce. This makes it much harder for noise to travel through building structures. By lowering cyclic stress, this acoustic separation keeps occupied areas free of mechanical noise pollution and increases the useful life of nearby parts. Also, the controlled flexibility allows for thermal shrinkage in chilled water lines that work at temperatures much lower than room temperature. This keeps stress from building up at hard connection points.
Another big benefit is that maintenance access is easy to get to. Regularly replacing valves, upgrading equipment, and rebalancing the system are all things that HVAC systems need. With 3 Grooved Couplings, repair crews can separate parts, drain lines, and make changes without having to cut pipes or mess up areas nearby. This flexibility cuts down on downtime and labour costs while making the whole system last longer.
Water Supply and Distribution Networks
3 Grooved Couplings make installation faster and more reliable, which is good for both municipal water systems and industrial water distribution networks. Large-diameter mains that connect treatment plants to distribution zones can be put together quickly. This helps keep building schedules on track and keeps current systems running as smoothly as possible. It works successfully in all pressure bands that are common in water distribution, from 60 PSI in residential areas to 150 PSI in industrial supply mains.
When something has a long working life, corrosion protection is very important. When placed in underground mains, hot-dip galvanised couplings don't rust on the earth side for decades, and the ductile iron design is better at blocking corrosion from chlorinated water inside than standard steel fittings. When compared to other joining methods, this one extends the time between replacements and lowers the total cost of ownership.
Maintainability of systems is very important in water infrastructure. Mains that are getting old need to have valves replaced, meters put in, and connections made to new areas of growth on a regular basis. With 3 Grooved Coupling technology, these changes can be made while the pressure is controlled, without having to do a lot of digging or having long service interruptions that bother customers and draw attention from regulators.
Oil, Gas, and Petrochemical Process Piping
Facilities that work with oil Products" target="_blank" style="color:blue" >products, chemicals, and process fluids have to deal with tough conditions where the quality of connections has a direct effect on safety and profits. 3 Grooved Couplings that are made with the right seal materials work well with hydrocarbons and keep out leaks at high temperatures and pressures that are higher than what is normally used in business.
In process settings, the benefits of installation stand out even more. Refineries and chemical plants have rules about hot work that make welding too hard to do without a lot of permits, fire watch staff, and gas monitoring. These needs are completely removed by 3 Grooved Couplings, which makes it easier for repair teams to complete turnaround projects and get production units back into service more quickly.
3 Grooved Coupling systems are especially helpful for modular process units. Skid-mounted equipment can be put together with all of its connections already made in a controlled shop setting. It can then be moved to installation sites and connected to existing systems using grooved connections. This method cuts down on work in the field, makes quality control better, and speeds up project schedules.
Mining and Heavy Industrial Installations
Mining activities and heavy industry sites are marked by abrasive slurries, corrosive process streams, and harsh weather conditions. 3 Grooved Coupling technology gives these uses the durability they need while also giving them special operating benefits. By quarter-turning grooved pipe assemblies, you can rotate pipe sections to spread wear out evenly. This increases service life without having to cut, weld, or do complicated disassembly procedures.
Remote mining operations like how quickly and reliably 3 Grooved Coupling systems can be set up. Because it's hard to get specialised welding workers and inspection services, mechanical joining methods are appealing. This is because maintenance teams can make fixes with standard tools and parts that are easy to find. Because fewer skills and fewer pieces of tools are needed, running costs are lower, and system uptime is higher.
As mining operations grow or production patterns change, modular systems for moving tailings, process water, and mineral slurries can be rearranged. 3 Grooved Couplings make it easy to move piping systems quickly, which is important in industries like extraction, where change is constant, and flexibility is key to making money.
Comparison and Decision Guide: 3 Grooved Couplings vs Other Coupling Types
Installation Time and Labor Considerations
When you compare linking methods, you can see that they take very different amounts of field work. When you use traditional welded connections, you need to prepare the pipes, hire qualified welders, follow certain inspection procedures, and give protective coatings more time to cure. A normal 3-inch welded part takes two to four hours of skilled labour, setting up the tools, and checking the quality. With 3 Grooved Couplings, this time is cut down to minutes because all that needs to be done is alignment, gasket placement, housing fitting, and bolt tightening to a certain pressure or pad-to-pad contact.
Pressure Ratings and Performance Boundaries
System designers have to make sure that the connection technology meets the needs for pressure. 3 Grooved Couplings are lightweight and can handle working pressures up to 300 PSI, making them good for most industrial sprinkler and HVAC needs. Heavy-duty versions raise the maximum pressure to 1000 PSI, meeting the needs of industrial processes, high-rise building zones, and other unique uses. These ratings are on par with Schedule 40 welded pipe performance, but they keep the benefits of 3 Grooved Coupling systems for installation and maintenance.
Vibration Isolation and Flexibility
The vibration-damping properties of 3 Grooved Couplings make links between mechanical tools very useful. As an isolation element, the elastomeric gasket stops the direct metal-to-metal path that moves pump vibration, compressor pulsation, and fluid hammer through rigid pipe systems. Compared to bonded or threaded connections, this separation cuts noise levels by 10 to 20 decibels. This keeps people in the building and sensitive equipment safe from noise disturbance.
Flexible 3 Grooved Couplings can bend in different directions to accommodate thermal expansion without the need for special expansion joints or loops. When the temperature changes by 100 degrees, a 100-foot run of pipe increases by about 1.5 inches. Spreading this movement across several flexible coupling joints gets rid of stress concentration and lowers the need for support structures compared to rigid systems that need to use specialised parts to handle growth.
Repairability and Lifecycle Costs
The real cost comparison goes beyond the initial installation and includes changes to the system, repair of parts, and removal at the end of its useful life. 3 Grooved Couplings allow non-destructive removal, which means that pipes can be cut, equipment can be upgraded, and systems can be rearranged without damaging the pipes or making a lot of waste. Jobs that used to take days to finish with welded systems can now be done in hours with 3 Grooved Coupling technology.
Installation and Maintenance Guide for 3 Grooved Couplings
Pre-Installation Preparation and Tools
Getting the pipe ready is the first step to installing a 3 Grooved Coupling correctly. Pipe ends need grooves that are either cut or rolled and have the right depth, width, and distance from the end of the pipe. Rolling makes grooves without taking away any metal, so the full diameter and pressure grade of the pipe wall are kept. Cutting takes away a small amount of material, but it works well for pipes that can't be rolled because of the way the material is made or the pipe's diameter.
Assembly Process and Best Practices
Place the gasket around one end of the pipe so that it is in the middle of the gap and the lip of the gasket faces outward. Place the second pipe so that both holes of the seal are in contact with it. Check the alignment before putting the housing in place to avoid damaging the gasket or misaligning the connections, which can cause stress to build up.
Place coupling housing segments around the part, making sure that the housing pads fit into the groove and gasket. To join the body pieces, put bolts through holes that are lined up and hand-tighten nuts. If you switch between bolts while tightening, the load is spread out evenly, and the gasket doesn't come out of place or become out of alignment.
Routine Maintenance and Inspection Protocols
Regular checks keep the system reliable over many years of use. A visual inspection can show damage to the coating, the start of corrosion, or physical impact that threatens the integrity of the housing. Quickly fix surface rust by applying a localised layer repair to stop it from getting worse faster. Instead of trying to fix broken housings on the job site, which can't bring them back to their original strength, replace them.
Check for weeping around the seal contacts while the system is under pressure. Small leaks usually stop on their own when the gaskets seat fully under pressure, but leaks that won't stop could mean that the gaskets were installed incorrectly or are damaged. Lower the pressure in the line, take the coupling apart, and look at all of its parts. If any damage is found, put it back together with new gaskets and hardware.
Troubleshooting Common Issues
The most common problem with 3 Grooved Coupling systems is leaks. A correct diagnosis finds the root causes and the best way to fix them. Leaks that show up right after installation are usually caused by mistakes in the building process, like misplacing the gasket, not tightening the bolts enough, or broken parts. Disassemble, check, replace old parts, and carefully put it back together again.
Problems with misalignment lead to early wear and the possibility of failure. Too much pipe offset puts too much stress on the coupler parts, pushing the loads closer to the groove edges and speeding up the wear of the gasket. Instead of depending on 3 Grooved Couplings to make up for bad fitting, fix problems with pipe support and alignment. 3 Grooved Couplings can work with some misalignment, but they can't replace the right way to install pipes.
Procuring 3 Grooved Couplings: How to Choose the Right Supplier and Product
Evaluating Manufacturers and Certifications
Differences in quality between makers have a direct effect on how well something works over time and how much it costs to own. Suppliers with a good reputation have quality management systems that are ISO9001-certified. These systems make sure that production standards, measurements, and materials are always met across all production runs. This approval shows that the company is dedicated to organised quality control instead of checking each batch individually.
Product certificates back up claims of performance with tests done by a third party. UL and FM listings for fire safety parts confirm the components' pressure ratings, material requirements, and ability to last in fire service conditions. These validations by a third party lower the risk of buying and help make sure that building rules and insurance requirements are met.
Procurement Strategies for Bulk Orders
When approached strategically, buying in bulk can save you a lot of money. Standard product specifications let suppliers make the most of their production runs, which lowers unit costs by a large amount compared to custom configurations. When it's possible, purchasing managers should combine needs from multiple projects into one, using scale to get better prices and making sure there is enough product to meet project deadlines.
Managing lead times becomes very important for building jobs with set schedules. Standard goods from well-known sources can usually be shipped within days if they are in stock, but special sizes or finishes may take two to six weeks to make and send. When you involve suppliers early on in the planning stages of a project, you can make sure that the schedule for production matches the schedule for construction.
Technical Support and Documentation
Suppliers can do more technical things than just make products. They can also help with application building. Access to experienced engineers who know how to design piping systems, make sure materials work well together, and follow best practices for installation is very helpful when planning and carrying out a project. This support makes it easier for specification teams to choose the best 3 Grooved Couplings, avoid common mistakes, and quickly fix problems that come up in the field.
Detailed product documentation makes the specification and installation processes go more quickly. Accurate material takeoffs, correct application, and fewer questions in the field are made possible by detailed dimensional models, pressure rating tables, gasket fit charts, and installation directions. Suppliers who offer 3D CAD models make it easier to find clashes during design planning.
Conclusion
In conclusion, 3 Grooved Coupling technology has strong benefits in many industrial settings where value is driven by easy installation, reliable systems, and easy access to maintenance. The mechanical joining method doesn't need any welding or threading, so it saves money on labour and time while still being just as leak-tight as traditional methods. Service can happen in places like business buildings and big industrial facilities by choosing the right materials, treating the surfaces, and making sure that the gaskets work with them. By knowing the technical differences between rigid and flexible configurations, following the installation steps correctly, and choosing qualified suppliers, procurement teams can make sure that piping systems work at their best while keeping costs low over their entire lifetime.
FAQ
Can 3 grooved couplings handle high-pressure industrial applications?
How much pressure 3 Grooved Couplings can handle depends on the type of coupling and the pipe schedule. Designs that are light and rated up to 300 PSI work well for most industrial uses, like sprinkler and HVAC systems. Heavy-duty designs can handle working pressures up to 1000 PSI, meeting the needs of industrial processes, high-rise building zones, and other unique uses. Always make sure that the coupling pressure levels are the same as or higher than what the system is supposed to be under, while still leaving enough room for peak pressures.
How do lifecycle costs compare between grooved and flanged couplings?
3 Grooved Couplings have lower initial material costs than flanged assemblies because they are lighter and have simpler parts. This benefit is made even better by the fact that installation labour is saved. Maintenance costs are much lower for the 3 Grooved Coupling technology because it can be taken apart quickly, parts can be used again, and changes can be made with less system downtime. Compared to flanged systems, these factors save thirty to fifty percent over the lifecycle of a facility that lasts twenty to forty years in situations where both technologies meet performance requirements.
Are custom sizes available, and what are typical lead times?
3 Grooved Couplings in standard sizes from 1 inch to 12 inches can be shipped quickly from a manufacturer's stock, usually in three to seven days. Custom configurations, such as non-standard sizes, special materials, or unique surface treatments, need to be planned for in advance, and lead times can be anywhere from two to six weeks, depending on how complicated the order is and how busy the factory is at the moment. Getting suppliers involved early in the planning stages of a project lets you meet specific needs without delaying the building process.
Ready to Upgrade Your Piping Connections?
We at FLA Industrial & Trading Co., Ltd. have been making high-quality grooved couplings for almost 40 years. Our ISO9001, CE, and UL/FM certifications show that we are dedicated to quality and safety standards that protect your projects and our name as a trusted provider of 3 Grooved Couplings. We keep more than 2,000 tonnes of inventory in more than 1,000 different product specifications. This lets us deliver standard items quickly, and within 7 to 15 days, we can customise items to meet the specific needs of each project. Our engineering team helps procurement managers and project engineers make the best decisions about system design and implementation by providing full technical support from the initial specification stage through installation and ongoing service. Email our sales team at sales@flaindustrial.com to talk about your unique 3 Grooved Coupling needs, get competitive prices for your future projects, or ask for full technical documentation. Visit flaindustry.com to explore our complete product range and discover how our experience working with Fortune Global 500 companies can help you find reliable solutions for your pipe needs.
