Grooved Fittings: Advantages, Disadvantages, and Applications

Grooved fittings are a huge step forward in modern pipe systems. They make connections more efficient and have changed industry uses all over the world. The coupling grooved device gets rid of the need for traditional welding while still making sure that important building projects have safe, leak-proof joints. These mechanical connections make it easier to install fire safety, HVAC, and industrial piping systems. They also give procurement managers more project completion options than ever before. Knowing how grooved fittings work, their pros and cons, and how they can be used helps people make smart choices when they are buying things from other businesses around the world. This helps them choose the best Products" target="_blank" style="color:blue" >products that meet their needs and their budgets.

Understanding Grooved Fittings and Their Working Principles

Grooved couplings are special mechanical connections that are made to quickly and safely connect pipes without the need for welding or flanging. These new systems change the way pipes are usually connected by using grooves that are cut or rolled into the ends of pipes. These grooves make safe connection points for mechanical housing assemblies.

Core Mechanical Design

A coupling grooved system fits around prepared pipe ends using precision-engineered seals and closing mechanisms to do its basic job. This mechanical interlock works with elastomeric seals and ductile iron housing pieces that fit into holes around the outside of the housing using track-head bolts. Instead of metallurgical bonds like fusion-based links do, this technology makes leak-tight seals by compressing metals together.

System Variants and Applications

Modern grooved coupling systems come in a number of different designs that are each made to meet specific practical needs. Rigid couplings make sure that pipes are perfectly lined up, like welded parts do. Flexible couplings, on the other hand, can handle temperature changes, seismic movement, and sound absorption. Specialized connections are made to deal with problems like high-pressure situations, corrosive surroundings, and the need for quick repair access.

The diameters of the pipes that these mechanical connections can hold run from 1 inch to 48 inches and are made of carbon steel, stainless steel, and ductile iron. Because it is flexible, procurement professionals can standardize link methods across multiple project steps while still making sure they work with existing infrastructure.

Advantages and Disadvantages of Grooved Couplings

To judge the performance of a grooved coupling, you need to know both its practical benefits and system limits, which affect the project requirements and costs. This fair evaluation lets buying teams make smart choices based on in-depth technical and financial research.

Key Performance Advantages

The modern grooved coupling systems are much better at their job than the old ways of connecting. The speed of installation is probably the most important benefit. Field studies have shown that assembly is 3–5 times faster than welding processes. This ability to launch quickly cuts down on labor costs by a large amount while keeping project schedules as stable as possible.

The mechanical design of grooved coupling lets the pipe move by controlling its flexibility, which keeps stress from building up in the same places that happen in stiff systems. This ability to react is very important in places where temperatures change quickly, there are earthquakes, or equipment is vibrating. The gasket separation also has sound-dampening features that keep noise from traveling through the building's mechanical systems.

Another important benefit is that maintenance is easy because grooved joints let you take the whole thing apart without damaging it by cutting or heating it. Visual inspections make it possible for predictive maintenance tools to find problems before they happen, which supports proactive strategies for managing facilities.

Operational Limitations

Even though grooved coupling systems have a lot of benefits, they also have some problems that need to be carefully thought through when the system is being designed. Operating pressure limits rely on the system's size and shape, but for most systems, they are rated between 300 and 1000 PSI, based on the needs of the application. For high-pressure systems, you might need special couplings or other ways to join.

Because elastomeric seals only work in certain temperature ranges, temperature limits also play a role in system choice. Standard EPDM gaskets work well between -30°F and +230°F, but for extreme uses, special mixtures make these temperatures ranges bigger. Knowing these limitations helps you choose the right materials for different environments.

Cost factors include the initial cost of installation and the ongoing need for upkeep. Even though installation labor savings usually make up for higher material costs, projects that are trying to stay within their budget may need a thorough economic analysis to show why grooved coupling is better than other options.

Installation, Maintenance, and Best Practices in Procurement

To use grooved couplings successfully, you need to follow set installation and maintenance methods that make sure the system works at its best throughout its working lifecycle. These methods reduce the chances of failure and increase the return on investments made in buying.

Precision Installation Procedures

Getting the grooves ready correctly is the first step to getting effective grooved coupling performance. Roll grooving keeps the pipe wall thickness the same for normal wall pipes, while cut grooving works for heavy wall uses where metal expansion is not an option. To make sure the couplings connect properly and close well, the groove sizes must meet ANSI/AWWA C606 standards.

To keep flexible materials from breaking down chemically, certain oils must be used when installing gaskets. It is very important to use approved non-petroleum options during assembly operations because petroleum-based lubricants damage EPDM gaskets and cancel maker guarantees.

"Pad-to-pad" contact verification, in which the housing bolt pads make full surface contact, proves that the fitting was done correctly. This standard testing method for the industry gets rid of the need to guess and guarantees the best connection performance without the need for special torque tools.

Maintenance Protocol Development

Regular inspection programs find problems before they become system breakdowns. This helps with proactive maintenance strategies that keep operations running as smoothly as possible. Assessing the state of a gasket is mainly about checking for elastic breakdown, chemical compatibility, and physical damage that might affect how well it seals.

The design that can be taken off for grooved pipe coupling lets the pipe piece rotate, which evens out wear patterns. This is especially helpful in rough jobs like digging and moving slurry. Through smart repair planning, this feature makes systems last longer and saves money on replacement costs.

Strategic Procurement Considerations

By making deals with qualified coupling grooved makers to buy in bulk, you can save a lot of money through big discounts and good payment terms. Setting up ties with chosen suppliers makes sure that products are always available and that quality standards are met throughout all stages of a project.

Managing lead times is important for planning projects because standard goods ship right away, but custom designs need 7–15 working days to be made and delivered. Keeping strategic amounts of inventory in check balances the costs of bringing them against the risks to the project schedule.

Application Areas and Industry Use Cases

There are many businesses that use grooved fittings to make dependable pipe connections that are necessary for safety and efficiency. Knowing the exact needs of a use case helps choose the best products and create systems that give you the most value and performance.

Fire Protection Systems

Installing fire sprinklers is probably the hardest thing that grooved coupling technology has to do because the dependability of the system has a direct effect on how well it protects lives. NFPA 13 compliance rules require strict testing and licensing processes that prove how well couplings work in harsh circumstances.

Static head pressures higher than 300 PSI and the need to accommodate earthquake movement are some of the unique problems that come up in high-rise building uses. Flexible coupling grooved systems are very important for isolating vibrations and keeping the building leak-proof for its entire operating life.

The ability to install quickly is very helpful for retrofitting buildings that are already occupied, since welding poses too many fire risks and causes too many problems for the people who live there. When you use grooved connection systems, you don't have to do any hard work, and you can finish projects faster.

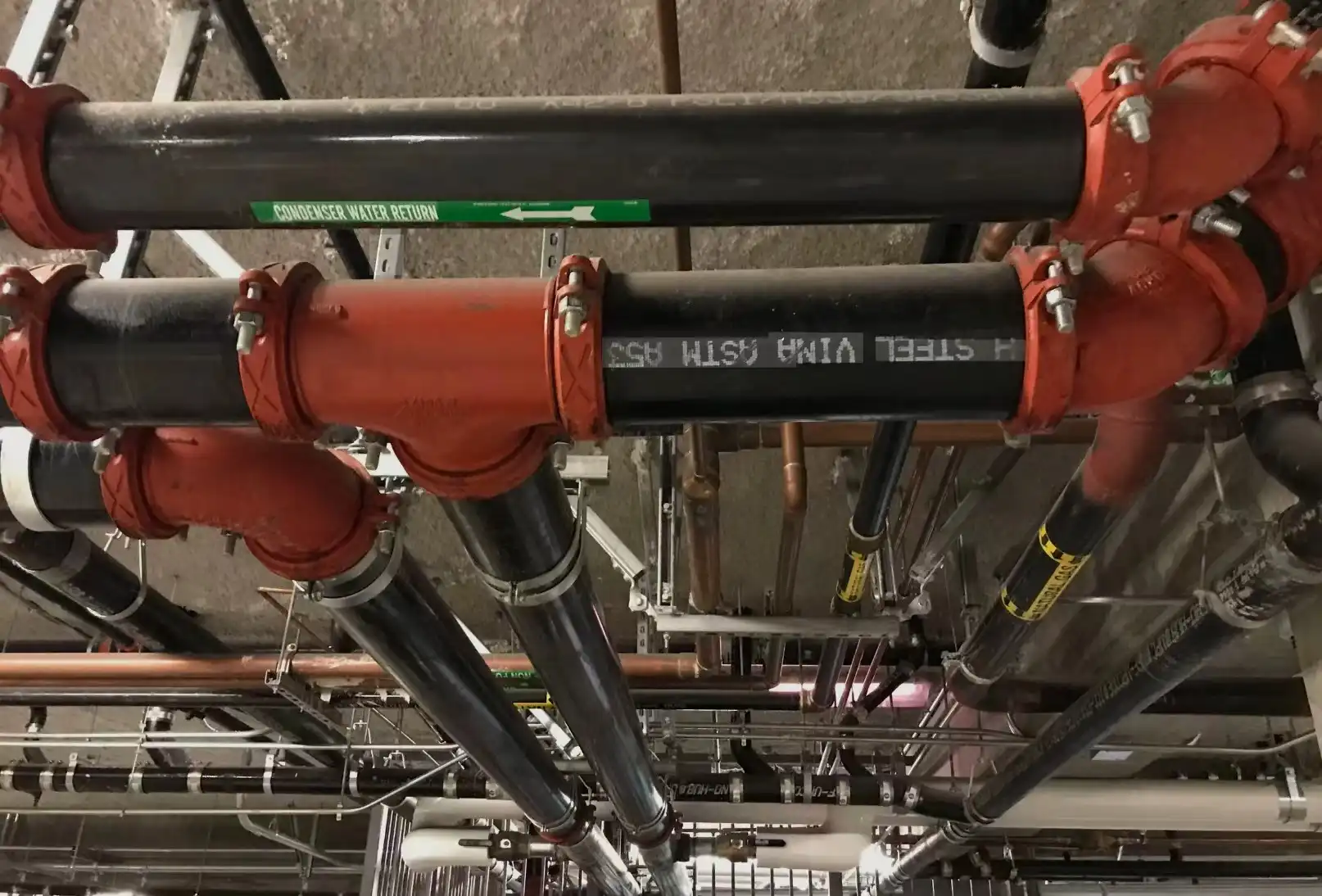

Industrial HVAC Applications

Pipe systems in complex mechanical rooms need to be able to handle the vibrations that come from rotary pumps, chillers, and cooling towers. These forces are sent through building structures by traditional stiff links, which can cause noise problems and even damage to equipment.

Flexible grooved couplings keep pipes in place throughout the system while isolating vibrations at the points where equipment is connected. This selected flexibility method improves system performance while lowering the need for expensive flanged expansion joints.

Applications that use chilled water or heat benefit from thermal movement accommodation, which keeps stress levels from building up during starting and shutdown processes. The controlled flexibility makes equipment last longer and requires less upkeep over its entire working life cycle.

Specialized Industrial Applications

For slurry handling uses where abrasive materials result in uneven pipe wear patterns, mining operations use grooved coupling systems. With the ability to quickly disassemble, repair teams can swap pipe sections during short shutdown periods. This makes equipment more available and lowers the cost of replacement.

Chemical processing plants use materials that don't rust and special gasket combinations that work well in harsh conditions. When compared to standard joining methods, hot-dip galvanized housings with chemical-resistant elastomers last longer.

For important infrastructure uses where system failures pose risks to public health and legal compliance, municipal water systems rely on the reliability of grooved coupling. Standardized standards and a track record that has been proven to work support long-term asset management strategies.

Conclusion

Grooved fitting technology is an advanced and tried-and-true method for using current pipes in many different types of industries. The coupling grooved systems offer strong benefits that standard connection methods can't match, such as quick installation, easy upkeep, and operating freedom. Knowing both the pros and cons of a product or service helps procurement workers make smart choices that improve project results while keeping costs low. As industry standards keep changing to make things safer and more efficient, grooved coupling systems provide the basis for dependable, low-cost pipe solutions that meet the strict performance needs of key infrastructure applications.

FAQ

What pressure ratings apply to grooved coupling systems?

Working pressures for standard grooved coupling systems range from 300 PSI to 1000 PSI, based on the size, material grade, and housing design. Lightweight housings can usually handle 300 PSI conditions, while extra-heavy casts can handle 1000 PSI conditions. Specialized high-pressure versions can handle even higher pressures for certain uses that need special engineering analysis.

How do rigid and flexible couplings differ functionally?

Rigid couplings have tongue-and-groove housings that clamp the pipe ends tightly together. This makes connections that are the same in terms of alignment and movement restriction as soldered joints. Flexible joints allow controlled linear and angular movement, which can handle heat expansion, building settlement, and earthquakes while still closing tightly and not leaking.

Can different manufacturer components be intermixed safely?

The sizes of pipe grooves are standardized by ANSI/AWWA C606, which makes sure that groove preparation is the same for all makers. But coupling housings and seals are still secret designs that come in a few different sizes that affect how well they seal. Because of possible compatibility problems, mixing parts from different makers voids UL/FM certifications and guarantee coverage.

What gasket materials suit different applications?

EPDM gaskets work with water at temperatures between -30°F and +230°F, while nitrile materials work with oil at temperatures between -20°F and +180°F. Specialized elastomers can handle high temperatures or needs to be compatible with chemicals. Using gasket materials that are recommended by the maker provides the best performance and keeps certification compliance.

How should coupling inventory be managed effectively?

Strategic inventory management forecasts demand and improves relationships with suppliers to balance the costs of keeping goods with the risks to the project schedule. Standard sizes are shipped right away, but special designs need time to be made. Keeping safety stock levels for important sizes and using source inventory for unique items is the best way to make the most of your working capital.
