Mechanical Grooved Tee Supports Flexible Branch Connections in Piping Networks

When your piping system requires reliable branch connections without the complications of welding, a mechanical grooved tee becomes your essential solution. This innovative fitting creates secure T-shaped junctions through a grooved mechanical coupling system, eliminating fire hazards while drastically reducing installation time. Manufactured from ductile iron or carbon steel, these fittings meet ASTM and ANSI standards, delivering leak-proof performance across fire protection systems, HVAC installations, and industrial fluid transport applications. The grooved connection method ensures flexibility that accommodates thermal expansion and vibration—challenges that often compromise rigid welded joints in demanding commercial and industrial environments.

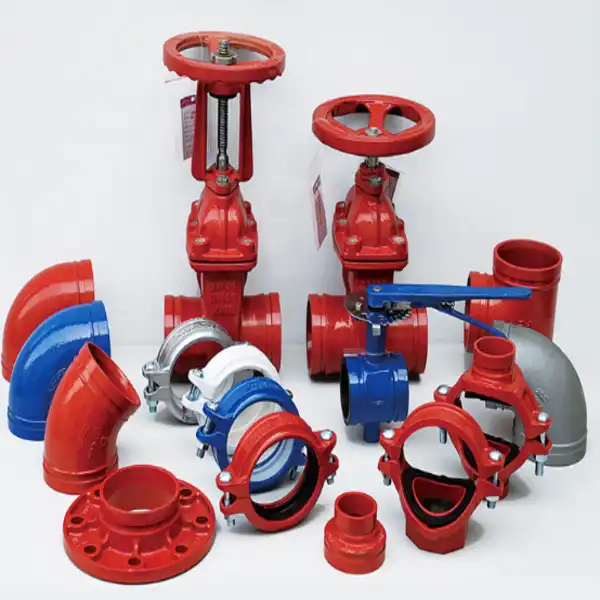

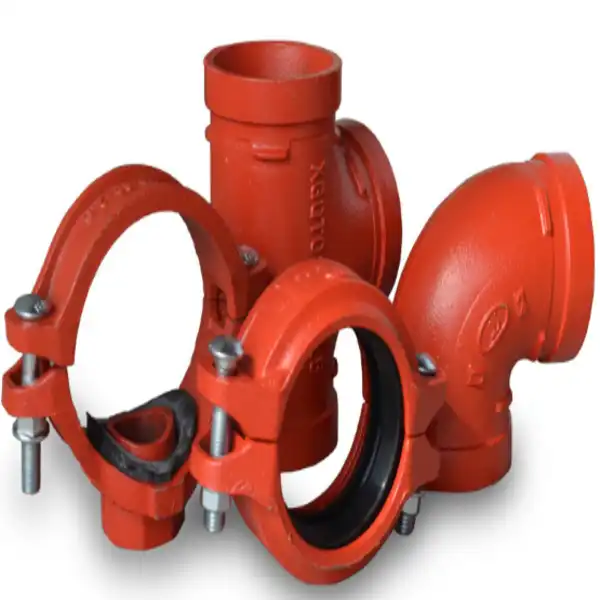

Understanding Mechanical Grooved Tees

Grooved pipe fittings are a big improvement over older ways of joining pipes together in modern infrastructure. These unique parts don't use threaded or molten metal connections. Instead, they use precisely machined grooves that fit with mechanical couplings and gaskets. The design makes a pressure-responsive seal that gets stronger when the pressure inside the system goes up, which is very useful in high-pressure situations.

How Grooved Technology Works

The grooved joint method works on a basic mechanical idea that works well. At each end of the tee, there is a groove that has been carefully cut or rolled to meet industry standards. The assembly makes a triple seal when it is put together with a housing coupling and an elastomeric gasket. The gasket presses against the pipe surface, the coupling bolts apply radial force, and pressure inside the assembly strengthens the seal. This multiple barrier method explains why grooved systems have leak rates below 0.01% when they are put together correctly.

Industry Standards and Compliance

Several governing groups set the standards for grooved fittings to make sure they work with everything and are safe. The AWWA C606 sets the size requirements for grooved and shouldered joints, and the ASTM A536 sets the material needs for ductile iron castings. Fire safety systems follow NFPA 13 rules, which clearly state that grooved mechanical connections are acceptable ways to connect parts. These standards make sure that fittings from different companies can reliably work together. This gives large projects more options for how to buy things.

Material Selection Considerations

Because it is stronger than most other materials and doesn't break easily when hit, ductile iron is still the best choice for most uses. The nodular graphite structure in ductile iron makes it flexible, which keeps it from breaking into weak pieces when shock loads or pressure spikes happen. Carbon steel versions are better for systems with very high pressure or where lighter weight makes placement easier in high places. Both materials can be protected with different coats, such as painted finishes for normal settings or special anti-corrosion coatings for chemical environments or sea settings.

The production methods of casting and machining make sure that the dimensions are always correct. Computer-controlled machining centers keep groove errors within 0.005 inches, which is very important for making sure the seal compresses properly. This precise production directly leads to reliability in the field, which cuts down on callbacks and guarantee claims that hurt the project's ability to make money.

Comparing Mechanical Grooved Tees with Other Fittings

When procurement teams know how the different joining methods work, they can make smart choices that affect both the short-term costs of the project and the long-term costs of running the business.

Installation Efficiency Analysis

Welded tees need certified welders, hot work permits, fire watch staff, and an inspection after the weld. All of these steps can add several hours to the installation time for each joint. Threaded connections need to be perfectly lined up and require multiple pipe tools. There is also a constant risk of damaging the threads or leaking because the sealing substance wasn't applied correctly. Most Mechanical Grooved Tees can be put in place with simple hand tools and little training in less than ten minutes per joint. When there are hundreds of branch links to make, this speed advantage grows exponentially. Compared to welded options, this can save up to 60% of the work.

Maintenance and Serviceability

Grooved links have big lifetime benefits because they can be taken apart. When changes need to be made to the system, techs can quickly take out a Mechanical Grooved Tee without having to cut any lines or mess up the joints next to it. This function is very helpful in busy buildings where minimizing downtime is very important. Welded systems need to be cut and re-welded, which can lead to pollution in places like clean rooms for pharmaceuticals or food processing plants. Visual inspection of grooved joints lets maintenance staff check right away that the installation is correct—the coupling position and bolt contact show right away that the assembly is correct.

Material Performance Comparison

When it comes to reducing vibrations, ductile iron Mechanical Grooved Tees perform better than rigid welded steel joints. Because the coupling contact is slightly flexible, it can absorb mechanical vibrations and water hammer shock that would otherwise travel through stiff systems and cause fatigue breakdowns where stress builds up. Different types of carbon steel can handle higher temperatures, making them suitable for steam systems that work above 250°F. When doing a retrofit, weight is also important because the current structure supports might not be able to hold heavier parts. When compared to schedule 40 steel weldments with the same pressure values, ductile iron is strong enough at lower weights.

Budget concerns go beyond the initial cost of the item. Grooved fittings may cost a little more in materials than welded parts, but they usually cost 20–30% less to install because they don't need as much welding labor, permits, and inspections. Cutting down on the project's length also cuts down on secondary costs like renting tools and paying for site overhead.

Installation Guide and Best Practices for Mechanical Grooved Tees

Using the right fitting methods will ensure the best performance and increase the service life. Although grooved systems make it easier to join things, paying attention to the little things during assembly keeps problems from happening in the future.

Pre-Installation Preparation

To keep gaskets from getting damaged, pipe ends must be cut straight and smoothed out. Any paint, scale, or other debris in the groove area weakens the seal. When you check the groove measures before putting the parts together, you can find production flaws or damage that happened during shipping. The groove should be flat and smooth, with no bumps or bends. Check gaskets for cuts, tears, or dirt, because even small damage can cause leaks when pressure is applied.

Assembly Sequence

The most important step is to place the seal properly. The gasket needs to fit completely in both grooves and make even contact all the way around. Misalignment leads to uneven compression, which creates leak routes. Make sure the coupling key fits properly in the groove before placing the coupling case on top of the gasket-sealed joint. Tightening bolts in a certain order—adding and removing bolts in a star pattern keeps the load from being uneven. The torque ranges from 75 to 150 foot-pounds, depending on the size of the coupling. When you use measured torque tools, you don't have to guess what the clamping force is.

Common Installation Mistakes

Most problems in the field are caused by rushing to place the seal. Technicians don't always fully seat the seal, which leaves holes that show up as leaks when the pressure is tested. If you tighten nuts too much, they can damage gasket material or bend coupler housings. If you loosen them too little, the joint can separate under pressure. Lack of lubrication on gaskets makes installation harder and can lead to rolling or tearing during assembly. If you let dirt or moisture into the groove area before putting the gasket in place, it will get contaminated and stop sealing properly.

Regular maintenance tasks done on a regular basis keep systems running smoothly and extend their life. Visual inspections are done once a year to check for rust, worn-out gaskets, and loose bolts. Every six months, bolt tightness should be checked in places with a lot of shaking. Systems that go through a lot of temperature cycles should have their gaskets replaced every so often. This is because repeated stretching and shrinking slowly weakens elastomeric materials.

Selecting and Procuring Mechanical Grooved Tees for Your Project

To do a good job of procurement, you need to match product standards to real system needs while also taking into account the supplier's skills and support services.

Specification Development

To find the right pressure values, you must first find the highest working pressure plus a safety margin. Fire protection systems usually work at 175 psi, but they have to be able to handle high levels of up to 300 psi when the pumps are turned on. When choosing fittings, making sure they can handle 300 psi of working pressure is a good safety measure. The main run width and branch exit size are both taken into account when choosing the size. A DN100×DN50 Mechanical Grooved Tee can connect a 4-inch main line to a 2-inch branch. This type of tee is often used in HVAC distribution systems, where bigger main lines feed smaller zone circuits.

When choosing materials, environmental concerns and budget limits must be balanced. Standard painting finishes are fine for climate-controlled rooms inside, but bitumen or epoxy coats are needed for underground installs to protect them from rust. When chemical plants expect to be exposed to harsh fluids, they may choose joints made of stainless steel even when the fittings are made of ductile iron. In HVAC applications, temperature ratings are important. Making sure that fittings can handle both chilled water systems that are close to freezing and heating loops that reach 180°F will keep them from breaking down too soon.

Supplier Evaluation Criteria

Documentation for certification is concrete proof of quality control systems. Getting ISO9001 certification shows that your manufacturing methods and quality control steps are uniform. CE marking shows that a product follows European safety rules, which is important for businesses that do business around the world or use equipment made in Europe. Product-specific certifications, such as UL listings for fire safety parts or NSF-61 approval for contact with potable water, make sure that regulations are followed.

The supply of inventory has a big effect on project plans. Suppliers who keep a lot of stock on hand can fill immediate orders without having to wait for production to start. Manufacturing wait times are needed for custom designs like branch angles that aren't standard or coatings that aren't standard. Knowing if a supplier can do custom fabrication and how long it usually takes to turn orders around helps procurement teams plan ordering schedules that work with construction milestones.

Bulk Purchasing Strategies

Consolidated shopping is helpful for big projects because it gets savings from buying in bulk and makes sure that the product is the same throughout the whole installation process. By negotiating framework agreements, pricing structures are set for the duration of the project, which protects against changes in the market. When shipping things internationally, you need to think about how to package them. Fittings that are properly crated arrive unharmed, but poorly packaged items get paint scratches or groove damage that require returns and cause projects to be delayed.

In competitive markets, providers who can offer technical help stand out. Access to engineering help for system design, quick responses to technical questions, and debugging help during installation all add a lot of value on top of the price of the product. Suppliers who give CAD models, pressure drop estimates, and installation training help workers avoid mistakes that cost a lot of money in the field.

Case Studies: Mechanical Grooved Tee in Action

The useful benefits of grooved systems that are making them more popular across many industries can be seen in real-life applications.

Commercial High-Rise Retrofit

Updating the HVAC system in a 35-story office building had to be done without stopping the work of the tenants. Cutting and welding the existing welded steel pipes would cause fires, so the building had to be evacuated. Welding fumes and metal bits would also get into the air handling system, which would be a big problem. The project team chose Mechanical Grooved Tees for the whole thing, which meant that it could be put together in the evening without a hot work permit. The installation went 60% faster than what was expected based on welded options, and the building was fully filled the whole time. Grooved joints were flexible enough to handle building movement that had caused stress cracks in the stiff pipes in the first place.

Industrial Plant Expansion

A food processing plant needed to add more links for production lines to their cold water system. The old system had carbon steel pipes that were soldered together, and any welding would have put metal bits and scale into the very clean process water. By switching to grooved connections at the tie-in places, the chance of contamination was removed. System downtime was kept to a minimum by letting new parts be pressure tested separately before they were finally connected. When commissioning showed small pressure differences that needed piping tweaks, workers made the changes in hours instead of days, which is how long it would have taken to cut and reweld.

Municipal Fire Protection Upgrade

In order to accommodate more buildings, the downtown area of a city needed to have its fire protection system improved. For the project, mains had to be tapped into in 47 places. Grooved mechanical tees were the best option because construction teams could connect branches in one day instead of having to weld them over the course of a week. Because the building took less time, there were fewer problems with traffic and business. System pressure tests showed that all links worked without any leaks, and the city saved money by not having to pay for the expensive radiographic inspections that would have been needed for parts that were welded.

The themes that run through these case studies are familiar to people who work in buying and engineering. Less time spent on installation means lower labor costs and a faster finish date for the project. Getting rid of hot work makes getting permits easier and safer. Real-life situations that rigid connections can't handle can be handled by systems that are flexible. Grooved piping systems are becoming more popular in commercial, industrial, and municipal settings because they have these measurable benefits.

Conclusion

Mechanical Grooved Tees have strong benefits that solve important problems in installing and maintaining current pipe systems. Value is created throughout the lifetime of a project by allowing for quick installation, greater flexibility, and the removal of "hot work." Different types of working conditions can be met with ductile iron and carbon steel as materials, and standard sizes make sure that Products" target="_blank" style="color:blue" >products from different makers can work together. Whether you're in charge of big building projects, fixing up old infrastructure, or trying to add on to an existing system, grooved fitting technology has been used for decades and has been shown to work. Buying good curved parts is worth it because they lower the cost of installation, require less upkeep, and make the system more reliable.

FAQ

Can grooved tees handle high-pressure steam applications?

When they are rated correctly, grooved connections work reliably in steam systems. Different types made of carbon steel that have pressure-rated couplings and high-temperature gaskets can handle temperatures up to 400°F and steam pressures up to 300 psi. It is important to match the gasket material to the temperature. For example, normal EPDM gaskets work well in most situations, but some materials are better at handling very high or very low temperatures.

How often should grooved connections be inspected?

Visual inspections once a year are enough for most situations. Check the connection housings for rust, make sure the bolts are tight, and look for gaskets that are coming apart or extruding. Inspections every six months are helpful for places with a lot of vibration or systems that go through a lot of temperature cycles. If you can see gasket material outside the coupling housing, it means that the gasket has failed or been over-compressed and needs immediate attention.

Why choose grooved over welded fittings?

The main benefit is that grooved joints can be put together quickly—minutes compared to hours for soldered connections. Projects get around the need for fire watches, hot work permits, and qualified welders. The installation without flames makes places safer, like crowded buildings or dangerous areas. Maintenance flexibility lets parts be taken apart quickly for repairs without having to cut pipes, which lowers the overall cost of ownership by a large amount.

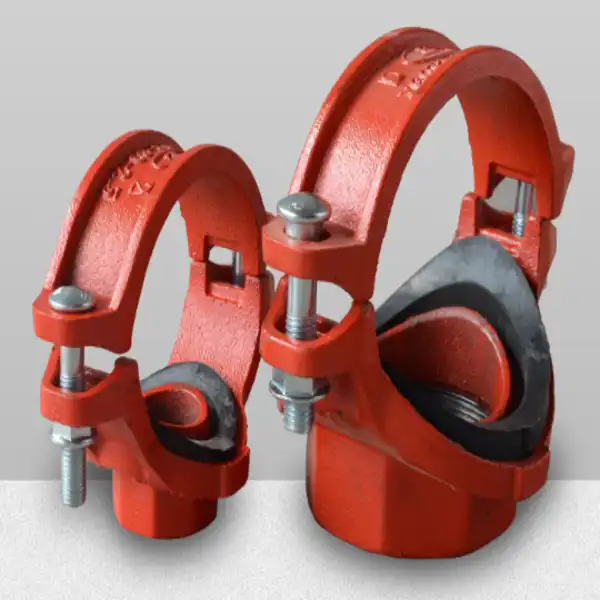

Partner with FLA Industrial & Trading Co., Ltd. for Your Grooved Fitting Needs

Choosing the right Mechanical Grooved Tee supplier affects the success of the project from the time it is ordered until it is fully operational. For your pipe jobs, FLA Industrial & Trading Co., Ltd. has almost forty years of experience making things. We have over 1,000 different types of products in stock, and notched tees from DN50 to DN200 are made of both ductile iron and carbon steel. Our dedication to quality management is shown by our ISO9001 and CE certifications. Our advanced casting and machining methods ensure precise measurements that guarantee leak-free performance. Email our sales team at sales@flaindustrial.com for technical details, bulk prices, or solutions that are made just for your project. You can look at our full line of piping parts at flaindustry.com and learn why Fortune Global 500 companies trust FLA for their most important infrastructure projects.
